secondary air pump, secondary air control valve, pipes and hoses for purge system, D >> - MJ 2014 of Bentley Bentley Continental GT (2011-2018)

View All

Bentley Continental GT (2011-2018) - secondary air pump, secondary air control valve, pipes and hoses for purge system, D >> - MJ 2014

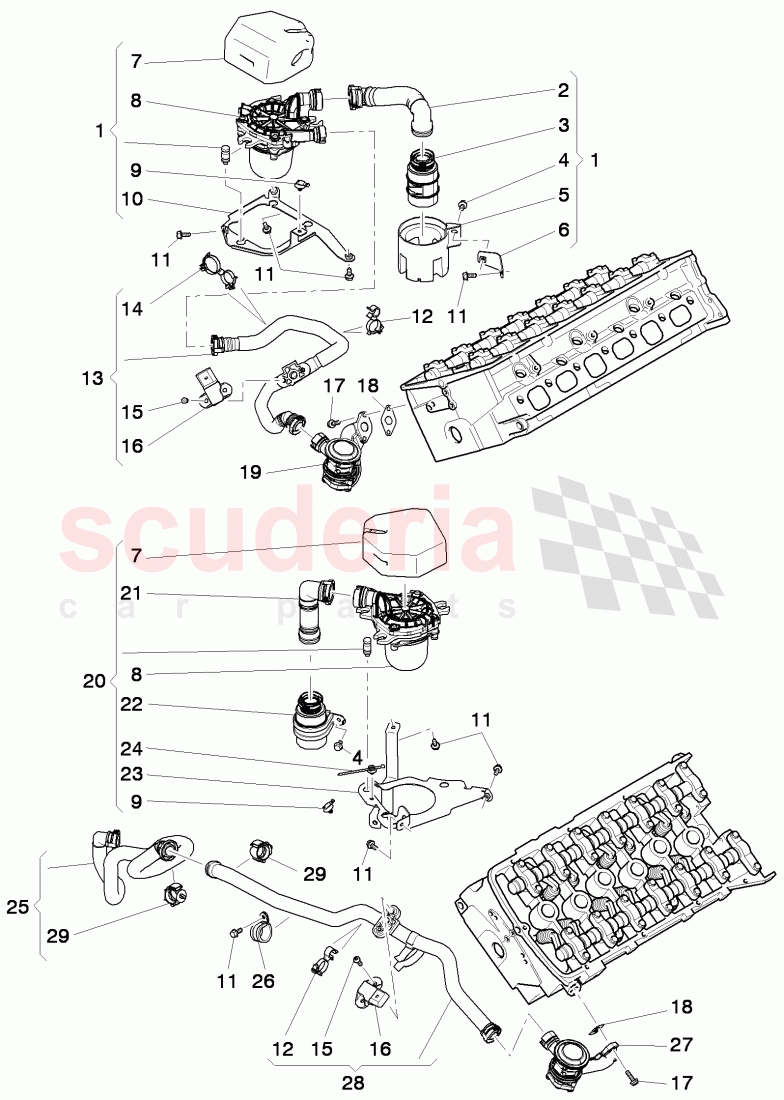

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0131083L	secondary air pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131149N	connecting pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131351	secondary air filter element	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10156307	bolt, hex. hd. with shoulder, automat. Entfallb./Neuanlage	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131085N	retainer for air filter	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131085L	angled bracket retainer for air filter	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131085M	cover noise insulation	Enquire

Photo	Part No	Description	Price (each)	Stock
	7K959253A	secondary air pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90685101	bracket for connector housing, D - 20.08.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131085K	bracket for secondary air pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10158605	bolt,hex.hd.with shoul.(combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131483	double clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131128N	connecting pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131483A	double clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10430103	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C906051	pressure sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10323103	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	6A131120D	gasket, D >> - 08.04.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C131098T	combi valve, D - MJ 2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131083L	secondary air pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131149M	connecting pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M3131351	non-return valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131085J	bracket for secondary air pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0971838	Cable ties	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131128T	connecting pipe, secondary air pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0206473	clamp, F 3Y-D-017 738>>, F ZH-D-017 738>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7C131097AA	combi valve, D - MJ 2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131128R	connecting pipe securing components and seals	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90980901	bracket for hose	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0131083L	secondary air pump	3W0131083L secondary air pump Cylinder 1-6, upper,	-	1	Enquire
2	3W0131149N	connecting pipe	3W0131149N connecting pipe inlet,	-	1	Enquire
3	3W0131351	secondary air filter element	3W0131351 secondary air filter element Cylinder 1-6,	-	1	Enquire
4	N10156307	bolt, hex. hd. with shoulder, automat. Entfallb./Neuanlage	N10156307 bolt, hex. hd. with shoulder, automat. Entfallb./Neuanlage M6X12,	-	2	Enquire
5	3W0131085N	retainer for air filter	3W0131085N retainer for air filter	-	1	Enquire
6	3W0131085L	angled bracket retainer for air filter	3W0131085L angled bracket retainer for air filter	-	1	Enquire
7	3W0131085M	cover noise insulation	3W0131085M cover noise insulation	-	2	Enquire
8	7K959253A	secondary air pump	7K959253A secondary air pump	-	2	Enquire
9	N90685101	bracket for connector housing, D - 20.08.2012>>	N90685101 bracket for connector housing, D - 20.08.2012>>	-	2	Enquire
10	3W0131085K	bracket for secondary air pump	3W0131085K bracket for secondary air pump upper,	-	1	Enquire
11	N10158605	bolt,hex.hd.with shoul.(combi)	N10158605 bolt,hex.hd.with shoul.(combi) M6X16,	-	7	Enquire
12	3W0131483	double clip	3W0131483 double clip	-	2	Enquire
13	3W0131128N	connecting pipe	3W0131128N connecting pipe Cylinder 1-6, outlet,	-	1	Enquire
14	3W0131483A	double clip	3W0131483A double clip	-	1	Enquire
15	N10430103	Hexagon socket flat head bolt	N10430103 Hexagon socket flat head bolt M5X16,	-	4	Enquire
16	7C906051	pressure sensor	7C906051 pressure sensor	-	2	Enquire
17	N10323103	socket head bolt with inner multipoint head	N10323103 socket head bolt with inner multipoint head M6X20,	-	4	Enquire
18	6A131120D	gasket, D >> - 08.04.2013	6A131120D gasket, D >> - 08.04.2013	-	2	Enquire
19	7C131098T	combi valve, D - MJ 2006>>	7C131098T combi valve, D - MJ 2006>> Cylinder 1-6,	-	1	Enquire
20	3W0131083L	secondary air pump	3W0131083L secondary air pump cylinders 7-12, lower,	-	1	Enquire
21	3W0131149M	connecting pipe	3W0131149M connecting pipe inlet,	-	1	Enquire
22	7M3131351	non-return valve	7M3131351 non-return valve	-	1	Enquire
23	3W0131085J	bracket for secondary air pump	3W0131085J bracket for secondary air pump lower,	-	1	Enquire
24	3W0971838	Cable ties	3W0971838 Cable ties	-	1	Enquire
25	3W0131128T	connecting pipe, secondary air pump	3W0131128T connecting pipe, secondary air pump cylinders 7-12, outlet,	-	1	Enquire
26	N0206473	clamp, F 3Y-D-017 738>>, F ZH-D-017 738>>	N0206473 clamp, F 3Y-D-017 738>>, F ZH-D-017 738>> 24X19,	-	1	Enquire
27	7C131097AA	combi valve, D - MJ 2006>>	7C131097AA combi valve, D - MJ 2006>> cylinders 7-12,	-	1	Enquire
28	3W0131128R	connecting pipe securing components and seals	3W0131128R connecting pipe securing components and seals cylinders 7-12, outlet,	-	1	Enquire
29	N90980901	bracket for hose	N90980901 bracket for hose	-	2	Enquire
30	3W0805883	bracket	3W0805883 bracket side right,	-	1	Enquire
31	N10338302	set screw, D - 11.12.2006>>	N10338302 set screw, D - 11.12.2006>> M5X12,	-	2	Enquire
