Bentley Continental GT (2003-2010) - disc brakes, GT Diamond Series

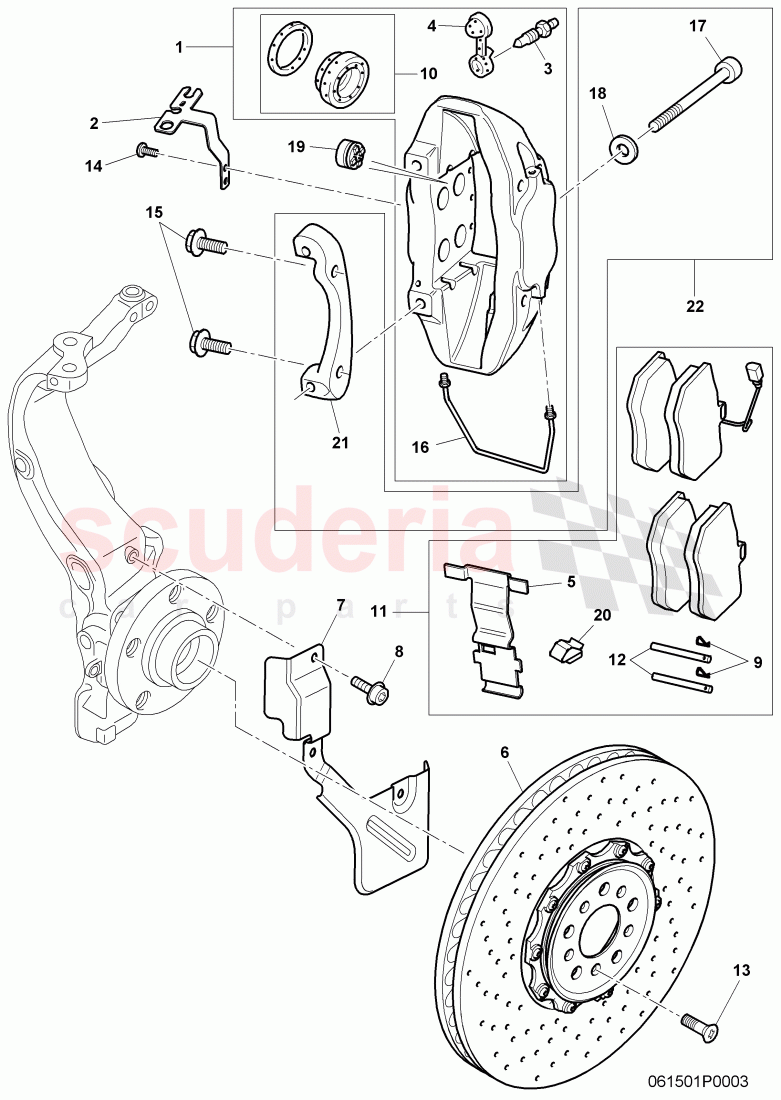

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0698479A	calliper without brake pads	Enquire
	3W0698480B	calliper without brake pads	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615133A	bracket for brake hose	Enquire
	3W0615134A	bracket for brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615273	breather valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615229	dust cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615157	cup expander spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615301J	ceramic brake disc, (vented), D >> - MJ 2006	Enquire
	3W0615302C	ceramic brake disc, (vented), D >> - MJ 2006	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615311A	dirt deflector, F >> 3W-C-075 136, F >> ZA-C-075 136	Enquire
	3W0615312A	dirt deflector, F >> 3W-C-075 136, F >> ZA-C-075 136	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90842903	hex socket head collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698307	1 set of securing parts, contains:	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698471	set of seals for, piston housing, contains:, Square ring, dust seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698151N	1 Set of brake pads with, wear indicator for disc, brakes	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615145	retaining pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10648301	hex socket countersunk bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90995303	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10502902	screw, hex. hd., D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611720	brake pipe	Enquire
	3W0611721	brake pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615403	Repair set for pistons	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615295	spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698135	mounting	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0698479A	calliper without brake pads	3W0698479A calliper without brake pads left front,	-	1	Enquire
1	3W0698480B	calliper without brake pads	3W0698480B calliper without brake pads right front,	-	1	Enquire
2	3W0615133A	bracket for brake hose	3W0615133A bracket for brake hose left, PR-1LL	-	1	Enquire
2	3W0615134A	bracket for brake hose	3W0615134A bracket for brake hose right, PR-1LL	-	1	Enquire
3	3W0615273	breather valve	3W0615273 breather valve PR-1LL	-	1	Enquire
4	3W0615229	dust cap	3W0615229 dust cap PR-1LL	-	1	Enquire
5	3W0615157	cup expander spring	3W0615157 cup expander spring	-	2	Enquire
6	3W0615301J	ceramic brake disc, (vented), D >> - MJ 2006	3W0615301J ceramic brake disc, (vented), D >> - MJ 2006 left front, 420X40,	-	1	Enquire
6	3W0615302C	ceramic brake disc, (vented), D >> - MJ 2006	3W0615302C ceramic brake disc, (vented), D >> - MJ 2006 right front, 420X40,	-	1	Enquire
7	3W0615311A	dirt deflector, F >> 3W-C-075 136, F >> ZA-C-075 136	3W0615311A dirt deflector, F >> 3W-C-075 136, F >> ZA-C-075 136 left,	-	1	Enquire
7	3W0615312A	dirt deflector, F >> 3W-C-075 136, F >> ZA-C-075 136	3W0615312A dirt deflector, F >> 3W-C-075 136, F >> ZA-C-075 136 right,	-	1	Enquire
8	N90842903	hex socket head collared bolt	N90842903 hex socket head collared bolt M6X12,	-	6	Enquire
9	3W0698307	1 set of securing parts, contains:	3W0698307 1 set of securing parts, contains:	-	4	Enquire
10	3W0698471	set of seals for, piston housing, contains:, Square ring, dust seal	3W0698471 set of seals for, piston housing, contains:, Square ring, dust seal PR-1LU	-	1	Enquire
11	3W0698151N	1 Set of brake pads with, wear indicator for disc, brakes	3W0698151N 1 Set of brake pads with, wear indicator for disc, brakes front,	-	1	Enquire
12	3W0615145	retaining pin	3W0615145 retaining pin	-	4	Enquire
13	N10648301	hex socket countersunk bolt	N10648301 hex socket countersunk bolt M6X16,	-	2	Enquire
14	N90995303	oval hexagon socket head bolt	N90995303 oval hexagon socket head bolt M8X12,	-	2	Enquire
15	N10502902	screw, hex. hd., D - MJ 2007>>	N10502902 screw, hex. hd., D - MJ 2007>> M14X35,	-	4	Enquire
16	3W0611720	brake pipe	3W0611720 brake pipe right,	-	1	Enquire
16	3W0611721	brake pipe	3W0611721 brake pipe left,	-	1	Enquire
19	3W0615403	Repair set for pistons	3W0615403 Repair set for pistons	-	8	Enquire
20	3W0615295	spring	3W0615295 spring	-	1	Enquire
22	3W0698135	mounting	3W0698135 mounting front,	-	2	Enquire
