disc brakes, F 3W-4-020 001>> 3W-5-029 254 of Bentley Bentley Continental GT (2003-2010)

View All

Bentley Continental GT (2003-2010) - disc brakes, F 3W-4-020 001>> 3W-5-029 254

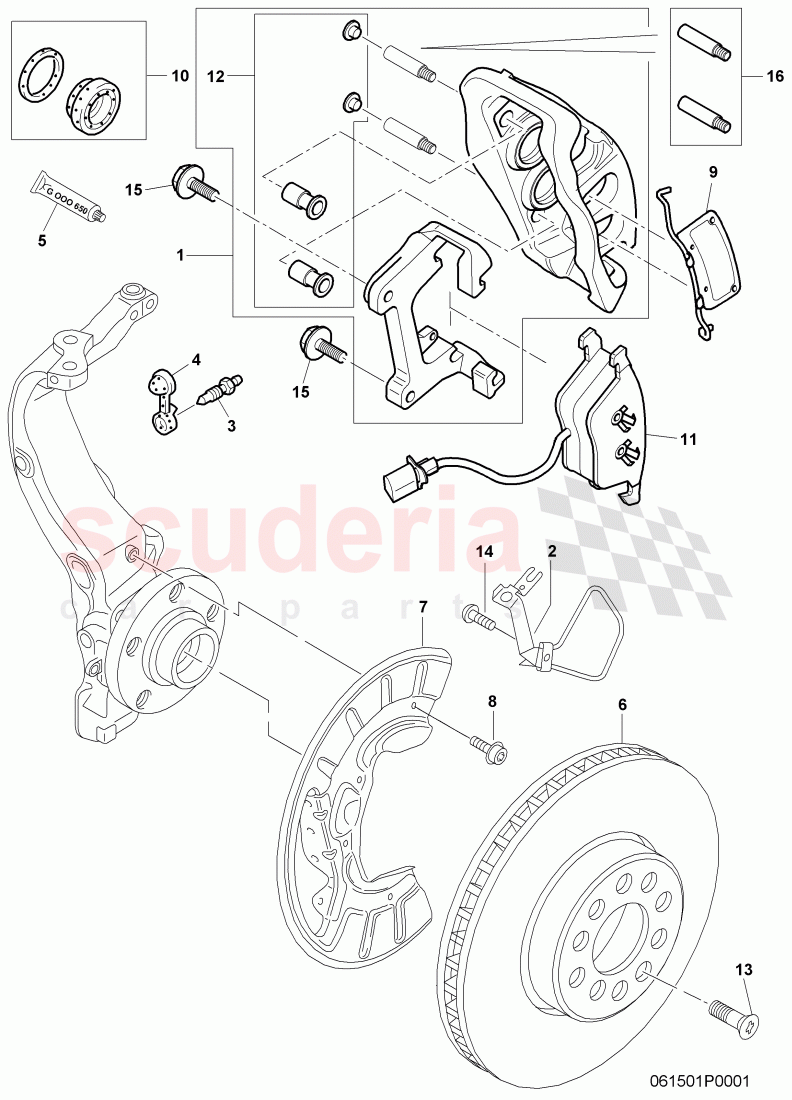

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0698479CQB7	BRAKE CALIPER HOUSING BLA	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611793F	bracket	Enquire
	3D0611794F	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	1K0615273C	breather valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615207	dust cap	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698141	special lubricant, grease	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0615301K	Front Brake Disc	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0615311C	splash shield for brake disc	Enquire
	3D0615312C	splash shield for brake disc	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90842903	hex socket head collared bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698211D	spring plate, D - 14.11.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0698471	set of gaskets for brake caliper housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0698151AD	1 SET OF BRAKE PADS FOR DISK BRAKE	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0698647	1 set of guide bushings	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10648301	hex socket countersunk bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90995303	oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock

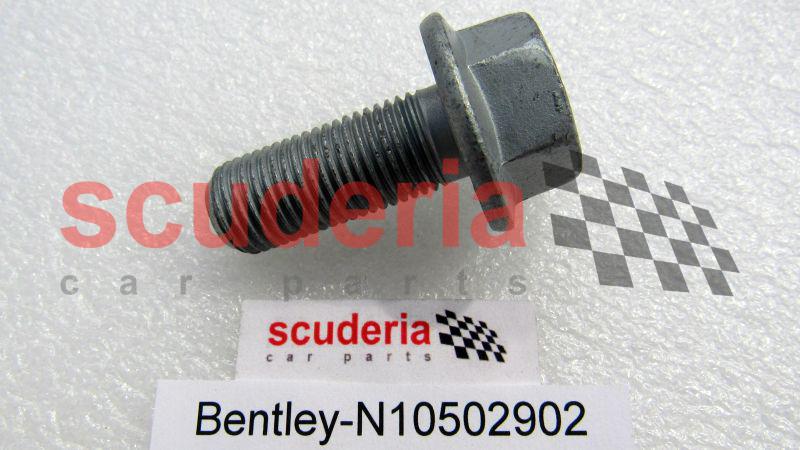

	N10502902	screw, hex. hd., D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	7D0615143	guide pin	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0698479CQB7	BRAKE CALIPER HOUSING BLA	3W0698479CQB7 BRAKE CALIPER HOUSING BLA front, left a. right,	-	2	Enquire
2	3D0611793F	bracket	3D0611793F bracket left, PR-1LL	-	1	Enquire
2	3D0611794F	bracket	3D0611794F bracket right, PR-1LL	-	1	Enquire
3	1K0615273C	breather valve	1K0615273C breather valve	-	1	Enquire
4	3W0615207	dust cap	3W0615207 dust cap	-	1	Enquire
5	3W0698141	special lubricant, grease	3W0698141 special lubricant, grease	-	1	Enquire
6	3W0615301K	Front Brake Disc	3W0615301K Front Brake Disc front,	-	2	Enquire
7	3D0615311C	splash shield for brake disc	3D0615311C splash shield for brake disc left,	-	1	Enquire
7	3D0615312C	splash shield for brake disc	3D0615312C splash shield for brake disc right,	-	1	Enquire
8	N90842903	hex socket head collared bolt	N90842903 hex socket head collared bolt M6X12,	-	8	Enquire
9	3W0698211D	spring plate, D - 14.11.2016>>	3W0698211D spring plate, D - 14.11.2016>> PR-1LL	-	1	Enquire
10	4E0698471	set of gaskets for brake caliper housing	4E0698471 set of gaskets for brake caliper housing	-	1	Enquire
11	3W0698151AD	1 SET OF BRAKE PADS FOR DISK BRAKE	3W0698151AD 1 SET OF BRAKE PADS FOR DISK BRAKE PR-1LL	-	1	Enquire
12	4E0698647	1 set of guide bushings	4E0698647 1 set of guide bushings	-	1	Enquire
13	N10648301	hex socket countersunk bolt	N10648301 hex socket countersunk bolt M6X16,	-	2	Enquire
14	N90995303	oval hexagon socket head bolt	N90995303 oval hexagon socket head bolt M8X12,	-	2	Enquire
15	N10502902	screw, hex. hd., D - MJ 2007>>	N10502902 screw, hex. hd., D - MJ 2007>> M14X35,	-	4	Enquire
16	7D0615143	guide pin	7D0615143 guide pin	-	1	Enquire
