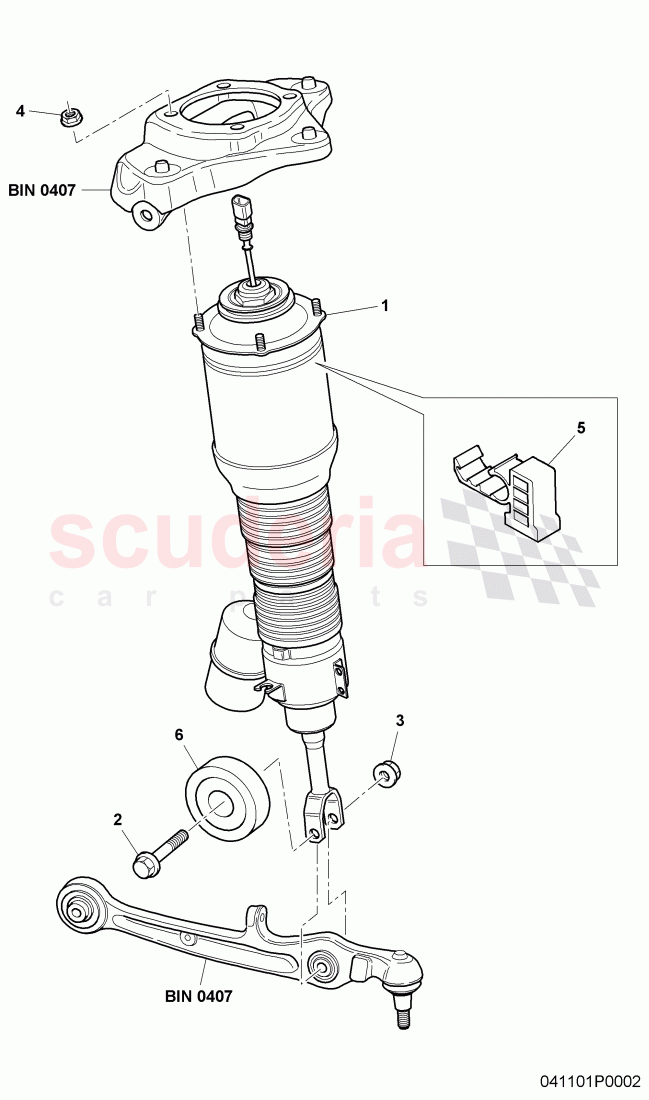

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N10241202	screw, hex. hd.	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90074404	hexagon nut, self-locking	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90696801	bracket for corrugated pipe	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W7810654A	damper, F 3W-9-057 480>>, F ZA-A-062 464>>	Enquire	IN STOCK

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

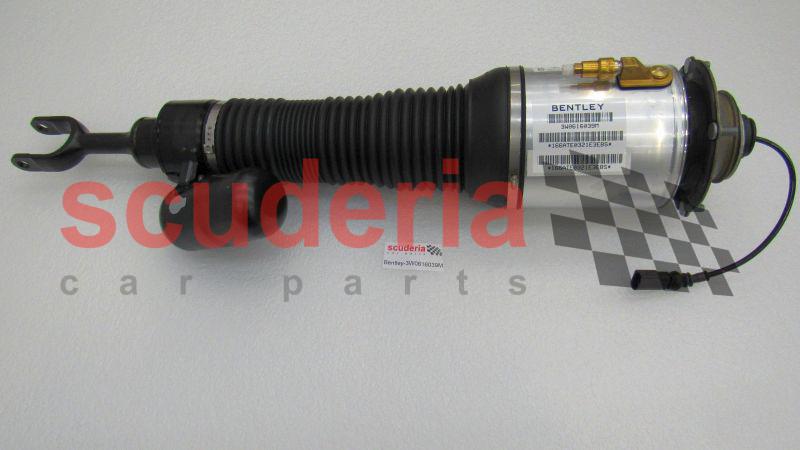

1	3W0616039M	air spring IN STOCK	3W0616039M air spring left front, IN STOCK	-	1	Enquire

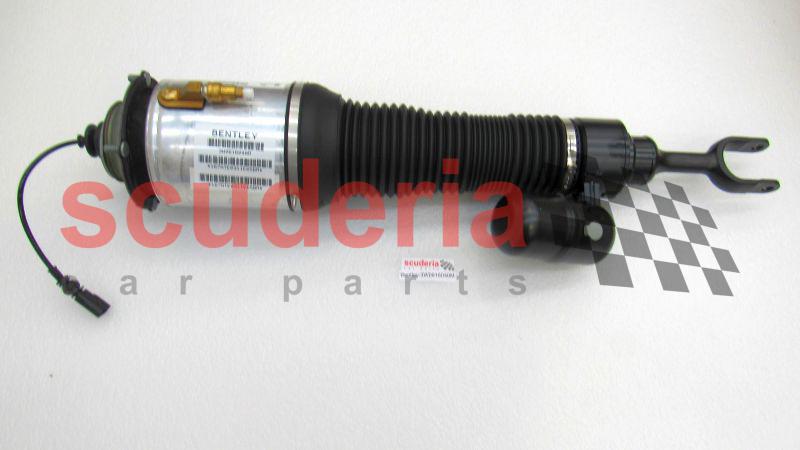

1	3W0616040M	air spring IN STOCK	3W0616040M air spring right front, IN STOCK	-	1	Enquire
2	N10241202	screw, hex. hd. IN STOCK	N10241202 screw, hex. hd. M12X85, IN STOCK	-	2	Enquire
3	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017 IN STOCK	N10106402 shouldered hex. nut,, self-locking, D >> - 12.06.2017 M12X1,5, IN STOCK	-	2	Enquire
4	N90074404	hexagon nut, self-locking IN STOCK	N90074404 hexagon nut, self-locking M8, IN STOCK	-	8	Enquire
5	N90696801	bracket for corrugated pipe IN STOCK	N90696801 bracket for corrugated pipe 4,5, IN STOCK	-	4	Enquire
6	3W7810654A	damper, F 3W-9-057 480>>, F ZA-A-062 464>>	3W7810654A damper, F 3W-9-057 480>>, F ZA-A-062 464>>	-	2	Enquire
