Bentley Continental GT (2003-2010) - control arm, F 3W-7-051 363>>, F ZA-A-062 566>>

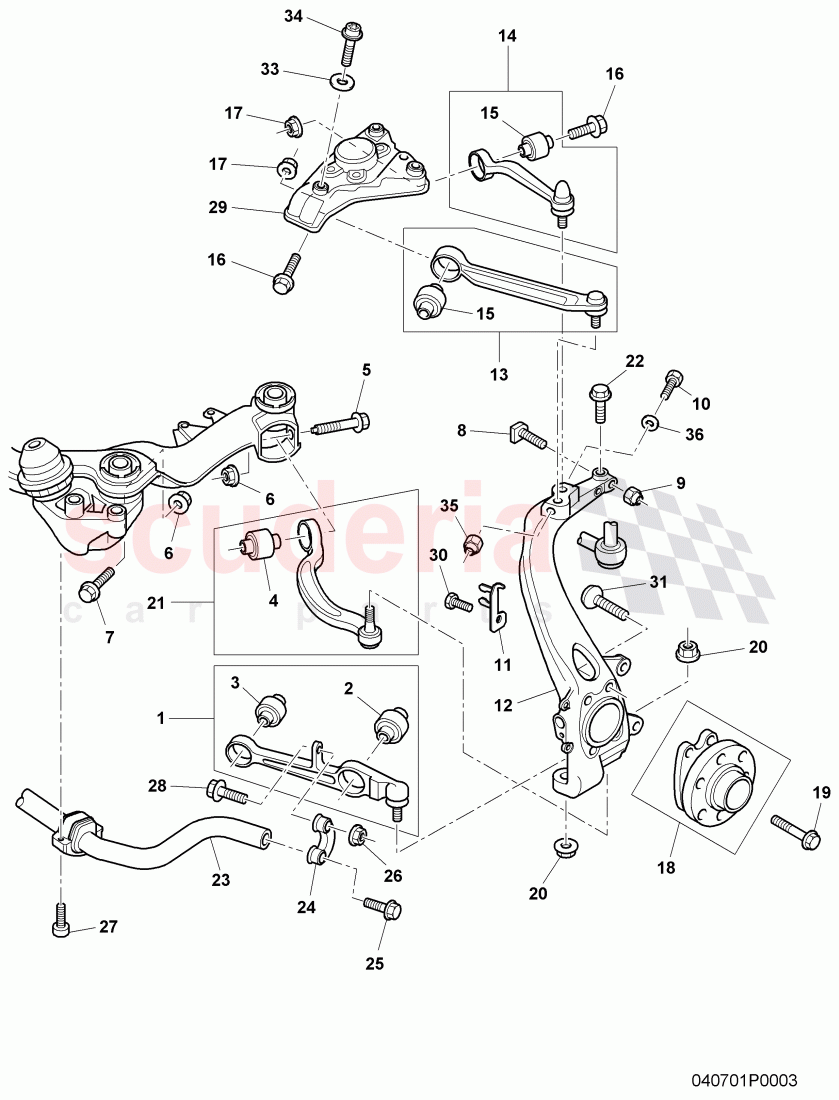

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4E0407151K	Front Suspension Wishbone Link	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90625902	bolt, hex. hd. with pin, (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91016602	Hexagon Head Bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001480	lock screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90892302	hex. nut, self-locking, D - 30.10.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10491802	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	4B0971845E	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0407253E	steering knuckle, F 3W-8-051 366>>, F ZA-A-062 022>>	Enquire
	3W0407254E	steering knuckle, F 3W-8-051 366>>, F ZA-A-062 022>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0407505	Front Wishbone Link	Enquire
	3W0407506	Front Wishbone Link	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0407509	Control Arm	Enquire
	3W0407510	Front Wishbone Link / Control Arm	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0407515	Upper Link Arm Bush	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10425302	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10286110	Hexagon collar nut self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0407613E	Wheel Hub With Bearing	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0407643A	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90965602	Hex. Nut with Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0407693A	LH Lower Rear Suspension Link	Enquire
	3W0407694A	RH Lower Rear Suspension Link	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90966002	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0411305J	Anti Roll Bar	Enquire
	3W0411305M	stabilizer, F 3W-9-059 787>>, F ZA-A-062 484>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0411317C	Front Anti Roll Bar Droplink	Enquire
	3W0411317C	Front Anti Roll Bar Droplink	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10209605	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10402904	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90990002	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90986002	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0412383D	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10051507	bolt, hexagon head self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000237	ball screw, marked blue	Enquire
	WHT000237	ball screw, marked blue	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0412145A	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90996702	socket hd. screw with polygon, socket, D - 08.10.2009>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10272302	Hexagon collar nut self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10406105	Washer, D - 11.12.2006>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4E0407151K	Front Suspension Wishbone Link	4E0407151K Front Suspension Wishbone Link left, right, front, lower,	-	2	Enquire
5	N90625902	bolt, hex. hd. with pin, (combi)	N90625902 bolt, hex. hd. with pin, (combi) M12X116,	-	2	Enquire
6	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	N10106402 shouldered hex. nut,, self-locking, D >> - 12.06.2017 M12X1,5,	-	2	Enquire
7	N91016602	Hexagon Head Bolt (combi)	N91016602 Hexagon Head Bolt (combi) M12X85,	-	2	Enquire
8	WHT001480	lock screw	WHT001480 lock screw M10X55,	-	2	Enquire
9	N90892302	hex. nut, self-locking, D - 30.10.2006>>	N90892302 hex. nut, self-locking, D - 30.10.2006>> M10 Z1,	-	2	Enquire
10	N10491802	bolt, hex. hd. with shoulder	N10491802 bolt, hex. hd. with shoulder M10X110X21,	-	2	Enquire
11	4B0971845E	bracket	4B0971845E bracket left, right,	-	2	Enquire
12	3W0407253E	steering knuckle, F 3W-8-051 366>>, F ZA-A-062 022>>	3W0407253E steering knuckle, F 3W-8-051 366>>, F ZA-A-062 022>> left,	-	1	Enquire
12	3W0407254E	steering knuckle, F 3W-8-051 366>>, F ZA-A-062 022>>	3W0407254E steering knuckle, F 3W-8-051 366>>, F ZA-A-062 022>> right,	-	1	Enquire
13	3W0407505	Front Wishbone Link	3W0407505 Front Wishbone Link left front,	-	1	Enquire
13	3W0407506	Front Wishbone Link	3W0407506 Front Wishbone Link right front,	-	1	Enquire
14	3W0407509	Control Arm	3W0407509 Control Arm left rear,	-	1	Enquire
14	3W0407510	Front Wishbone Link / Control Arm	3W0407510 Front Wishbone Link / Control Arm right rear,	-	1	Enquire
15	3W0407515	Upper Link Arm Bush	3W0407515 Upper Link Arm Bush	-	4	Enquire
16	N10425302	bolt, hex. hd. with shoulder	N10425302 bolt, hex. hd. with shoulder M10X62,	-	4	Enquire
17	N10286110	Hexagon collar nut self-locking	N10286110 Hexagon collar nut self-locking M10,	-	4	Enquire
18	3W0407613E	Wheel Hub With Bearing	3W0407613E Wheel Hub With Bearing left, right,	-	2	Enquire
19	8E0407643A	socket head bolt with inner multipoint head	8E0407643A socket head bolt with inner multipoint head M16X72,	-	2	Enquire
20	N90965602	Hex. Nut with Washer	N90965602 Hex. Nut with Washer M14,	-	4	Enquire
21	3W0407693A	LH Lower Rear Suspension Link	3W0407693A LH Lower Rear Suspension Link left rear, 2043974,	-	1	Enquire
21	3W0407694A	RH Lower Rear Suspension Link	3W0407694A RH Lower Rear Suspension Link right rear, 2043974,	-	1	Enquire
22	N90966002	hexagon head bolt (combi)	N90966002 hexagon head bolt (combi) M8X22,	-	2	Enquire
23	3W0411305J	Anti Roll Bar	3W0411305J Anti Roll Bar PR-1BK	-	1	Enquire
23	3W0411305M	stabilizer, F 3W-9-059 787>>, F ZA-A-062 484>>	3W0411305M stabilizer, F 3W-9-059 787>>, F ZA-A-062 484>> PR-2MA	-	1	Enquire
24	3W0411317C	Front Anti Roll Bar Droplink	3W0411317C Front Anti Roll Bar Droplink front,	-	2	Enquire
24	3W0411317C	Front Anti Roll Bar Droplink	3W0411317C Front Anti Roll Bar Droplink left, right,	-	2	Enquire
25	N10209605	bolt, hex. hd. with shoulder	N10209605 bolt, hex. hd. with shoulder M12X65,	-	2	Enquire
26	N10402904	Hexagon collar nut	N10402904 Hexagon collar nut M12,	-	2	Enquire
27	N90990002	socket head bolt with inner multipoint head	N90990002 socket head bolt with inner multipoint head M10X45,0,	-	4	Enquire
28	N90986002	bolt, hex. hd. with shoulder	N90986002 bolt, hex. hd. with shoulder M12X70,	-	2	Enquire
29	4E0412383D	bracket	4E0412383D bracket	-	2	Enquire
30	N10051507	bolt, hexagon head self-locking	N10051507 bolt, hexagon head self-locking M6X15,	-	2	Enquire
31	WHT000237	ball screw, marked blue	WHT000237 ball screw, marked blue M12X1,5 10,9,	-	8	Enquire
31	WHT000237	ball screw, marked blue	WHT000237 ball screw, marked blue M12X45,	-	8	Enquire
33	3D0412145A	washer	3D0412145A washer M16,	-	6	Enquire
34	N90996702	socket hd. screw with polygon, socket, D - 08.10.2009>>	N90996702 socket hd. screw with polygon, socket, D - 08.10.2009>> M10X30,	-	6	Enquire
35	N10272302	Hexagon collar nut self-locking	N10272302 Hexagon collar nut self-locking M10,	-	2	Enquire
36	N10406105	Washer, D - 11.12.2006>>	N10406105 Washer, D - 11.12.2006>> 10,5X20X2,	-	2	Enquire
