Bentley Continental Flying Spur (2013+) - Central Display, Navigation and TV, D - MJ 2015>>

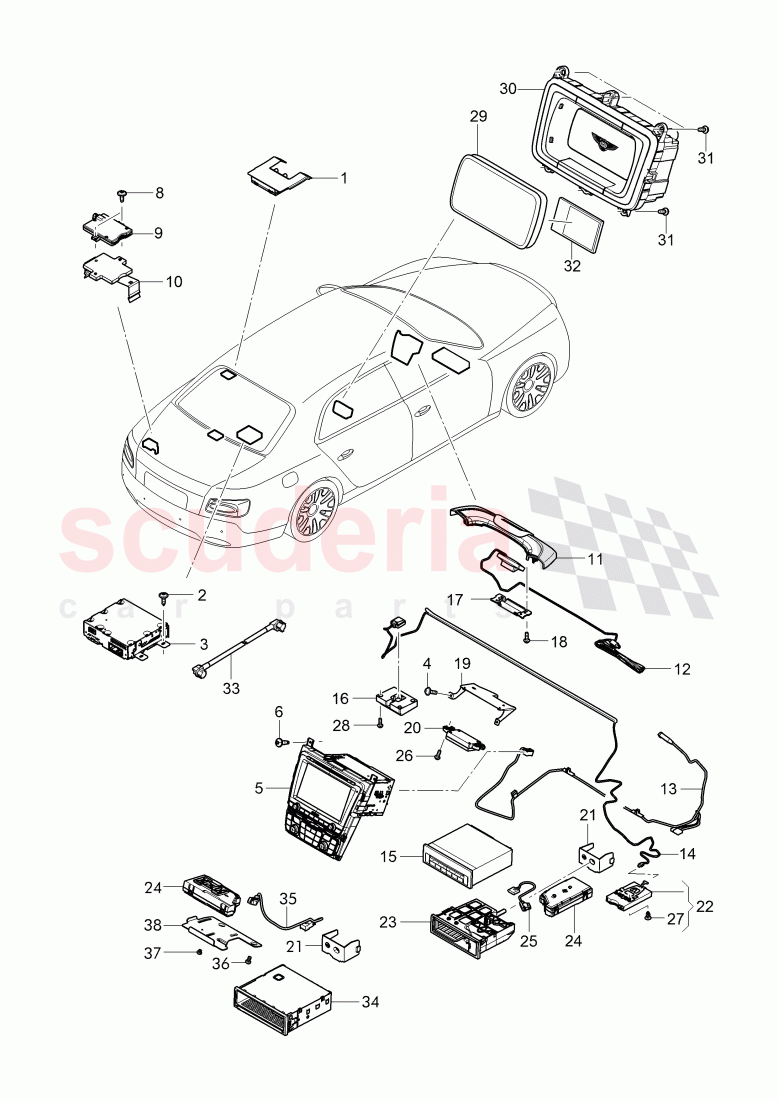

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N90698601	Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0919129H	v receiver (tuner)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10684701	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90918701	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4F0919805	Chip-card reader forTV-system, D >> - MJ 2012	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0937061A	bracket, Chip-card reader forTV-system	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035504C	Antenna for vehicle, positioning system	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1971704D	antenna connecting cable, Antenna for vehicle, positioning system	Enquire
	3W2971704D	antenna connecting cable, Antenna for vehicle, positioning system	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035503B	antenna for telepass-, cardsystem	Enquire

Photo	Part No	Description	Price (each)	Stock
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0907538	bracket, antenna for telepass-, cardsystem	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035720	bracket, Antenna for vehicle, positioning system	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035755	bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0035769F	Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	Enquire
	4W0035189C	remote control, display unit and control panel, with 'touchscreen', F 3W-G-053 915>>, F ZA-G-053 915>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035547	Bracket for multimedia, interface box 'MDI'	Enquire
	3W0035547A	Bracket for multimedia, interface box 'MDI'	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035122C	chip card reader for road, toll system	Enquire

Photo	Part No	Description	Price (each)	Stock
	5N0035309A	retaining frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	DDD	PROPSHAFT SERVICE EXCHANG	Enquire
	5N0035342G	Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	5N0035554K	Adapter wiring set for, multimedia interface box 'MDI', to be used for:, D - 26.01.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90729003	fillister head bolt (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0867302	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10642801	Hexagon socket head panel bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0035189	Remote control, display unit and control panel, with 'touchscreen', F >> 3W-F-042 921, F >> ZA-F-042 921	Enquire
	4W0035189A	Remote control, display unit and control panel, with 'touchscreen', F 3W-F-042 922>>, F ZA-F-042 922>>, D >> - MJ 2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0035705	retaining shell, Remote control, F >> 3W-E-042 921, F >> ZA-E-042 921	Enquire
	4W0035705A	retaining shell, Remote control, F 3W-E-042 922>>, F ZA-E-042 922>>, D >> - MJ 2015	Enquire
	4W0035705B	retaining shell, Remote control, D - MJ 2016>>, F >> 3W-G-053 914, F >> ZA-G-053 914	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10446102	Socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0098507	battery, remote control	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0970742B	harness fortv, receiver (tuner)	Enquire

Photo	Part No	Description	Price (each)	Stock
	DDD	PROPSHAFT SERVICE EXCHANG	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W1970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	Enquire
	4W1970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	Enquire
	4W2970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10555702	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1035245A	bracket	Enquire
	3W2035245	bracket	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	N90698601	Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508	N90698601 Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508 4,2X16,	-	3	Enquire
3	3W0919129H	v receiver (tuner)	3W0919129H v receiver (tuner) japan, PR-QV2	-	1	Enquire
4	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt TP4X12,	-	2	Enquire
5	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 japan,	-	1	Enquire
6	N10684701	Oval hexagon socket head bolt	N10684701 Oval hexagon socket head bolt M5X20,	-	6	Enquire
8	N90918701	Hexagon socket head panel bolt	N90918701 Hexagon socket head panel bolt TP4X12,	-	2	Enquire
9	4F0919805	Chip-card reader forTV-system, D >> - MJ 2012	4F0919805 Chip-card reader forTV-system, D >> - MJ 2012	-	1	Enquire
10	3W0937061A	bracket, Chip-card reader forTV-system	3W0937061A bracket, Chip-card reader forTV-system	-	1	Enquire
12	3W0035504C	Antenna for vehicle, positioning system	3W0035504C Antenna for vehicle, positioning system PR-7Q6	-	1	Enquire
13	3W1971704D	antenna connecting cable, Antenna for vehicle, positioning system	3W1971704D antenna connecting cable, Antenna for vehicle, positioning system lhd, PR-L0L	-	1	Enquire
13	3W2971704D	antenna connecting cable, Antenna for vehicle, positioning system	3W2971704D antenna connecting cable, Antenna for vehicle, positioning system rhd, PR-L0R	-	1	Enquire
14	3W0035503B	antenna for telepass-, cardsystem	3W0035503B antenna for telepass-, cardsystem	-	1	Enquire
15	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 6-DISC, PR-7A2,NZ0	-	1	Enquire
16	3W0907538	bracket, antenna for telepass-, cardsystem	3W0907538 bracket, antenna for telepass-, cardsystem	-	1	Enquire
17	3W0035720	bracket, Antenna for vehicle, positioning system	3W0035720 bracket, Antenna for vehicle, positioning system	-	1	Enquire
18	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt TP4X12,	-	4	Enquire
19	3W0035755	bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	3W0035755 bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	-	1	Enquire
20	3D0035769F	Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	3D0035769F Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	-	1	Enquire
20	4W0035189C	remote control, display unit and control panel, with 'touchscreen', F 3W-G-053 915>>, F ZA-G-053 915>>	4W0035189C remote control, display unit and control panel, with 'touchscreen', F 3W-G-053 915>>, F ZA-G-053 915>>	-	1	Enquire
21	3W0035547	Bracket for multimedia, interface box 'MDI'	3W0035547 Bracket for multimedia, interface box 'MDI' lhd, PR-L0L	-	1	Enquire
21	3W0035547A	Bracket for multimedia, interface box 'MDI'	3W0035547A Bracket for multimedia, interface box 'MDI' rhd, PR-L0R	-	1	Enquire
22	3W0035122C	chip card reader for road, toll system	3W0035122C chip card reader for road, toll system	-	1	Enquire
23	5N0035309A	retaining frame	5N0035309A retaining frame	-	1	Enquire
24	DDD	PROPSHAFT SERVICE EXCHANG	DDD PROPSHAFT SERVICE EXCHANG PR-9WK,9WN	-	1	Enquire
24	5N0035342G	Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>>	5N0035342G Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>> PR-9WA	-	1	Enquire
25	5N0035554K	Adapter wiring set for, multimedia interface box 'MDI', to be used for:, D - 26.01.2015>>	5N0035554K Adapter wiring set for, multimedia interface box 'MDI', to be used for:, D - 26.01.2015>> iPod Nano, iPod Touch,	-	1	Enquire
26	N90729003	fillister head bolt (combi.)	N90729003 fillister head bolt (combi.) M5X16,	-	1	Enquire
27	3W0867302	clamp	3W0867302 clamp	-	2	Enquire
28	N10642801	Hexagon socket head panel bolt	N10642801 Hexagon socket head panel bolt ST3.5X3,	-	2	Enquire
29	4W0035189	Remote control, display unit and control panel, with 'touchscreen', F >> 3W-F-042 921, F >> ZA-F-042 921	4W0035189 Remote control, display unit and control panel, with 'touchscreen', F >> 3W-F-042 921, F >> ZA-F-042 921	-	1	Enquire
29	4W0035189A	Remote control, display unit and control panel, with 'touchscreen', F 3W-F-042 922>>, F ZA-F-042 922>>, D >> - MJ 2015	4W0035189A Remote control, display unit and control panel, with 'touchscreen', F 3W-F-042 922>>, F ZA-F-042 922>>, D >> - MJ 2015	-	1	Enquire
30	4W0035705	retaining shell, Remote control, F >> 3W-E-042 921, F >> ZA-E-042 921	4W0035705 retaining shell, Remote control, F >> 3W-E-042 921, F >> ZA-E-042 921	-	1	Enquire
30	4W0035705A	retaining shell, Remote control, F 3W-E-042 922>>, F ZA-E-042 922>>, D >> - MJ 2015	4W0035705A retaining shell, Remote control, F 3W-E-042 922>>, F ZA-E-042 922>>, D >> - MJ 2015	-	1	Enquire
30	4W0035705B	retaining shell, Remote control, D - MJ 2016>>, F >> 3W-G-053 914, F >> ZA-G-053 914	4W0035705B retaining shell, Remote control, D - MJ 2016>>, F >> 3W-G-053 914, F >> ZA-G-053 914	-	1	Enquire
30	4W0035705C	retaining shell, remote control, F 3W-G-053 915>>, F ZA-G-053 915>>	4W0035705C retaining shell, remote control, F 3W-G-053 915>>, F ZA-G-053 915>>	-	1	Enquire
31	N10446102	Socket head bolt with inner multipoint head	N10446102 Socket head bolt with inner multipoint head M4X10,	-	6	Enquire
32	4W0098507	battery, remote control	4W0098507 battery, remote control	-	1	Enquire
33	4W0970742B	harness fortv, receiver (tuner)	4W0970742B harness fortv, receiver (tuner) 2.3M, PR-VL1	-	1	Enquire
34	DDD	PROPSHAFT SERVICE EXCHANG	DDD PROPSHAFT SERVICE EXCHANG PR-9WK,9WN	-	1	Enquire
35	4W1970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	4W1970212 Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015 lhd, PR-9WK,9WN	-	1	Enquire
35	4W1970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	4W1970212 Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015 lhd, PR-9WK	-	1	Enquire
35	4W2970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	4W2970212 Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015 rhd, PR-9WK,9WN	-	1	Enquire
35	4W2970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	4W2970212 Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015 rhd, PR-9WK	-	1	Enquire
36	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	2	Enquire
37	N10555702	Hexagon socket flat head bolt	N10555702 Hexagon socket flat head bolt TP4,0X8,0,	-	2	Enquire
38	3W1035245A	bracket	3W1035245A bracket lhd, PR-UF1+9WK,, 9WN	-	1	Enquire
38	3W2035245	bracket	3W2035245 bracket rhd, PR-UF1+9WK,, 9WN	-	1	Enquire
