Find Your Part

Central Display, Navigation and TV, D >> - MJ 2014 of Bentley Bentley Continental Flying Spur (2013+)

View All

Bentley Continental Flying Spur (2013+) - Central Display, Navigation and TV, D >> - MJ 2014

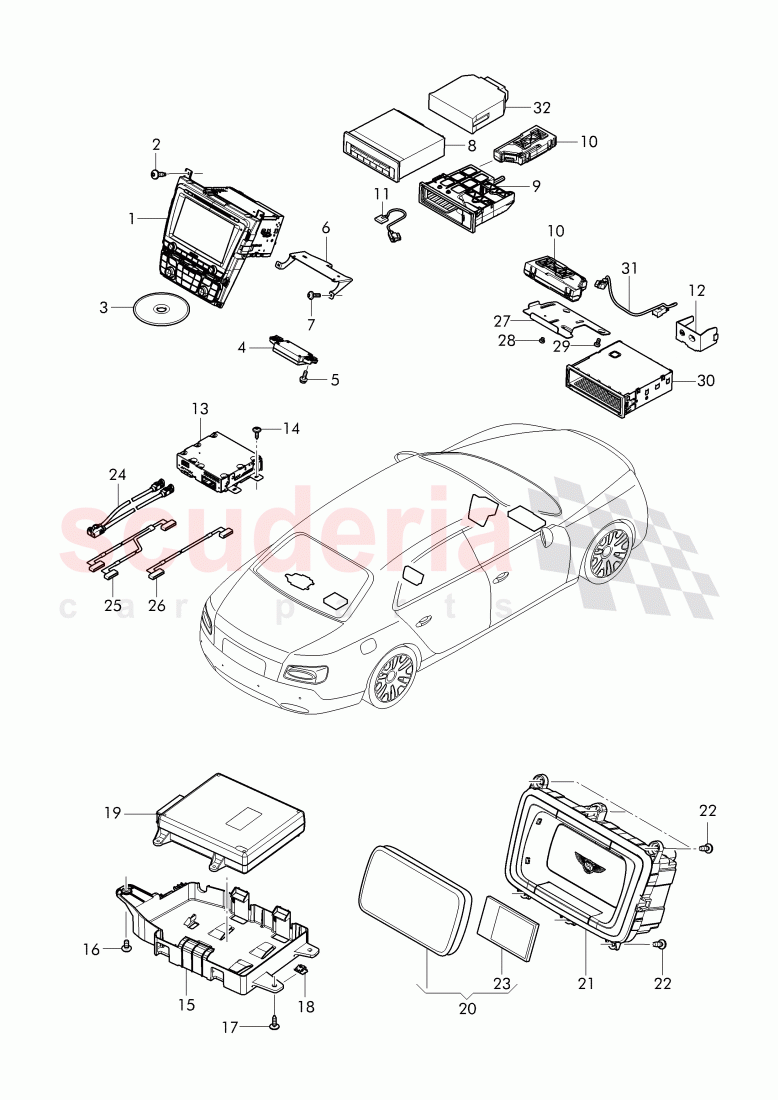

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10684701	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0919859CR	dvd-rom for navigation, system, D - 05.09.2016>>	Enquire
	3W0919859DB	dvd-rom for navigation, system, D - 30.01.2017>>	Enquire
	3W0919859CG	dvd-rom for navigation, system, D - 08.11.2015>>	Enquire

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3D0035769F	Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90729003	fillister head bolt (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035755	bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	Enquire

Photo	Part No	Description	Price (each)	Stock
	5N0035309A	retaining frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0035342	Multimedia interface box 'MDI', with integrated control unit, F >> 3W-D-099 999, F >> ZA-D-099 999, F 3W-E-077 993>> 3W-E-094 653, F ZA-E-077 993>> ZA-E-094 653	Enquire
	DDD	PROPSHAFT SERVICE EXCHANG	Enquire
	5N0035342G	Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0972069A	Adapter wiring set for, multimedia interface box 'MDI'	Enquire
	5N0035554J	Adapter wiring set for, multimedia interface box 'MDI', D >> - MJ 2012	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0035547	Bracket for multimedia, interface box 'MDI'	Enquire
	3W0035547A	Bracket for multimedia, interface box 'MDI'	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0919129E	v receiver (tuner), D - 13.05.2013>>	Enquire
	3W0919129C	v receiver (tuner)	Enquire
	3W0919129G	v receiver (tuner), F 3W-E-082 780>> 3W-E-092 450, F ZA-E-082 780>> ZA-E-092 450	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698601	Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0907113A	mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91009801	Hex socket head collared bolt, D >> - 16.11.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698601	Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90968402	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0035008	control unit for remote, control 'Cargate' ECU, F >> 3W-F-042 921, F >> ZA-F-042 921	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0035189	Remote control, display unit and control panel, with 'touchscreen', F >> 3W-F-042 921, F >> ZA-F-042 921	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0035705	retaining shell, Remote control, F >> 3W-E-042 921, F >> ZA-E-042 921	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10446102	Socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0098507	battery, remote control	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0907277A	harness fortv, receiver (tuner)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0970742	harness fortv, receiver (tuner)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0971742	harness fortv, receiver (tuner)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1035245A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10555702	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0907157	Control unit for, rear seat entertainment 'RSE', glove box, F >> 3W-D-099 999, F >> ZA-D-099 999, F 3W-E-077 993>> 3W-E-094 653, F ZA-E-077 993>> ZA-E-094 653	Enquire
	DDD	PROPSHAFT SERVICE EXCHANG	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W1970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	Enquire
	4W2970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0868547	plastic foam bloc, D - 07.12.2015>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 all countries,, except:, north american, area, China, PR-7Q1,7Q9	-	1	Enquire
1	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 north american, area, PR-7Q2	-	1	Enquire
1	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 China, PR-7T4	-	1	Enquire
2	N10684701	Oval hexagon socket head bolt	N10684701 Oval hexagon socket head bolt M5X20,	-	6	Enquire
3	3W0919859CR	dvd-rom for navigation, system, D - 05.09.2016>>	3W0919859CR dvd-rom for navigation, system, D - 05.09.2016>> north american, area, PR-7RS	-	1	Enquire
3	3W0919859DB	dvd-rom for navigation, system, D - 30.01.2017>>	3W0919859DB dvd-rom for navigation, system, D - 30.01.2017>> western europe, PR-7RT	-	1	Enquire
3	3W0919859CG	dvd-rom for navigation, system, D - 08.11.2015>>	3W0919859CG dvd-rom for navigation, system, D - 08.11.2015>> Eastern Europe, PR-7RK	-	1	Enquire
3	3W0919859CH	dvd-rom for navigation, system, D - 08.11.2015>>	3W0919859CH dvd-rom for navigation, system, D - 08.11.2015>> AGCC states, PR-7RH	-	1	Enquire
3	3W0919859CP	dvd-rom for navigation, system, D - 09.05.2016>>	3W0919859CP dvd-rom for navigation, system, D - 09.05.2016>> Malaysia, Singapore, PR-7RY	-	1	Enquire
3	3W0919859CJ	dvd-rom for navigation, system, D - 08.11.2015>>	3W0919859CJ dvd-rom for navigation, system, D - 08.11.2015>> australia, New Zealand, PR-7RJ,7RL	-	1	Enquire
3	3W0919859CQ	dvd-rom for navigation, system, D - 09.05.2016>>	3W0919859CQ dvd-rom for navigation, system, D - 09.05.2016>> South Africa, PR-7RX	-	1	Enquire
4	3D0035769F	Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	3D0035769F Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015 PR-8YY,8YG	-	1	Enquire
5	N90729003	fillister head bolt (combi.)	N90729003 fillister head bolt (combi.) M5X16,	-	2	Enquire
6	3W0035755	bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015	3W0035755 bracket, Bluetooth-Modul fuer, Navigation, D >> - 22.05.2015 PR-8YY,8YG	-	1	Enquire
7	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt TP4X12,	-	2	Enquire
8	CCC	Mechatronic with software, D - MJ 2009>> - MJ 2009	CCC Mechatronic with software, D - MJ 2009>> - MJ 2009 6 point, PR-7A2	-	1	Enquire
9	5N0035309A	retaining frame	5N0035309A retaining frame PR-9WA	-	1	Enquire
10	4W0035342	Multimedia interface box 'MDI', with integrated control unit, F >> 3W-D-099 999, F >> ZA-D-099 999, F 3W-E-077 993>> 3W-E-094 653, F ZA-E-077 993>> ZA-E-094 653	4W0035342 Multimedia interface box 'MDI', with integrated control unit, F >> 3W-D-099 999, F >> ZA-D-099 999, F 3W-E-077 993>> 3W-E-094 653, F ZA-E-077 993>> ZA-E-094 653 PR-9WK,9WN	-	1	Enquire
10	DDD	PROPSHAFT SERVICE EXCHANG	DDD PROPSHAFT SERVICE EXCHANG PR-9WK,9WN	-	1	Enquire
10	5N0035342G	Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>>	5N0035342G Multimedia interface box 'MDI', with integrated control unit, D - 01.07.2013>> PR-9WA	-	1	Enquire
11	3Y0972069A	Adapter wiring set for, multimedia interface box 'MDI'	3Y0972069A Adapter wiring set for, multimedia interface box 'MDI' black, IPOD, PR-9WA	-	1	Enquire
11	5N0035554J	Adapter wiring set for, multimedia interface box 'MDI', D >> - MJ 2012	5N0035554J Adapter wiring set for, multimedia interface box 'MDI', D >> - MJ 2012 red, iPod Nano, iPod Touch, iPhone 1-4S, PR-9WK,9WN	-	1	Enquire
12	3W0035547	Bracket for multimedia, interface box 'MDI'	3W0035547 Bracket for multimedia, interface box 'MDI' lhd, PR-L0L+UF1	-	1	Enquire
12	3W0035547A	Bracket for multimedia, interface box 'MDI'	3W0035547A Bracket for multimedia, interface box 'MDI' rhd, PR-L0R+UF1	-	1	Enquire
13	3W0919129E	v receiver (tuner), D - 13.05.2013>>	3W0919129E v receiver (tuner), D - 13.05.2013>> all countries,, except:, China, PR-QV1	-	1	Enquire
13	3W0919129C	v receiver (tuner)	3W0919129C v receiver (tuner) China, PR-QU3	-	1	Enquire
13	3W0919129G	v receiver (tuner), F 3W-E-082 780>> 3W-E-092 450, F ZA-E-082 780>> ZA-E-092 450	3W0919129G v receiver (tuner), F 3W-E-082 780>> 3W-E-092 450, F ZA-E-082 780>> ZA-E-092 450 digital, PR-QU7	-	1	Enquire
14	N90698601	Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508	N90698601 Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508 4,2X16,	-	3	Enquire
15	4W0907113A	mounting	4W0907113A mounting	-	1	Enquire
16	N91009801	Hex socket head collared bolt, D >> - 16.11.2015	N91009801 Hex socket head collared bolt, D >> - 16.11.2015 M6X12,	-	1	Enquire
17	N90698601	Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508	N90698601 Hexagon socket head panel bolt, F >> 3W-D-082 508, F >> ZA-D-082 508 4,2X16,	-	2	Enquire
18	N90968402	speed nut	N90968402 speed nut	-	2	Enquire
19	4W0035008	control unit for remote, control 'Cargate' ECU, F >> 3W-F-042 921, F >> ZA-F-042 921	4W0035008 control unit for remote, control 'Cargate' ECU, F >> 3W-F-042 921, F >> ZA-F-042 921	-	1	Enquire
20	4W0035189	Remote control, display unit and control panel, with 'touchscreen', F >> 3W-F-042 921, F >> ZA-F-042 921	4W0035189 Remote control, display unit and control panel, with 'touchscreen', F >> 3W-F-042 921, F >> ZA-F-042 921	-	1	Enquire
21	4W0035705	retaining shell, Remote control, F >> 3W-E-042 921, F >> ZA-E-042 921	4W0035705 retaining shell, Remote control, F >> 3W-E-042 921, F >> ZA-E-042 921 PR-3D1,3D6	-	1	Enquire
22	N10446102	Socket head bolt with inner multipoint head	N10446102 Socket head bolt with inner multipoint head M4X10,	-	6	Enquire
23	4W0098507	battery, remote control	4W0098507 battery, remote control	-	1	Enquire
24	4W0907277A	harness fortv, receiver (tuner)	4W0907277A harness fortv, receiver (tuner) COAX, 2M & 2.1M, PR-QU3,QU7,, QV1,QV2	-	1	Enquire
25	4W0970742	harness fortv, receiver (tuner)	4W0970742 harness fortv, receiver (tuner) COAX, 2M & 6M, PR-QU3,QU7,, QV1,QV2+7X8	-	1	Enquire
26	4W0971742	harness fortv, receiver (tuner)	4W0971742 harness fortv, receiver (tuner) COAX, 4.4M, PR-QU3,QU7,, QV1,QV2+7X2	-	1	Enquire
27	3W1035245A	bracket	3W1035245A bracket lhd, PR-UF1+9WK,, 9WN	-	1	Enquire
28	N10555702	Hexagon socket flat head bolt	N10555702 Hexagon socket flat head bolt TP4,0X8,0,	-	2	Enquire
29	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	2	Enquire
30	4W0907157	Control unit for, rear seat entertainment 'RSE', glove box, F >> 3W-D-099 999, F >> ZA-D-099 999, F 3W-E-077 993>> 3W-E-094 653, F ZA-E-077 993>> ZA-E-094 653	4W0907157 Control unit for, rear seat entertainment 'RSE', glove box, F >> 3W-D-099 999, F >> ZA-D-099 999, F 3W-E-077 993>> 3W-E-094 653, F ZA-E-077 993>> ZA-E-094 653 PR-9WK,9WN	-	1	Enquire
30	DDD	PROPSHAFT SERVICE EXCHANG	DDD PROPSHAFT SERVICE EXCHANG PR-9WK,9WN	-	1	Enquire
31	4W1970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	4W1970212 Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015 lhd, PR-9WK,9WN	-	1	Enquire
31	4W2970212	Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015	4W2970212 Adapter wiring set for, multimedia interface box 'MDI', D >> - 25.05.2015 rhd, PR-9WK,9WN	-	1	Enquire
32	4W0868547	plastic foam bloc, D - 07.12.2015>>	4W0868547 plastic foam bloc, D - 07.12.2015>> PR-7A0	-	1	Enquire
