Find Your Part

brake line, brake hose of Bentley Bentley Continental Flying Spur (2013+)

View All

Bentley Continental Flying Spur (2013+) - brake line, brake hose

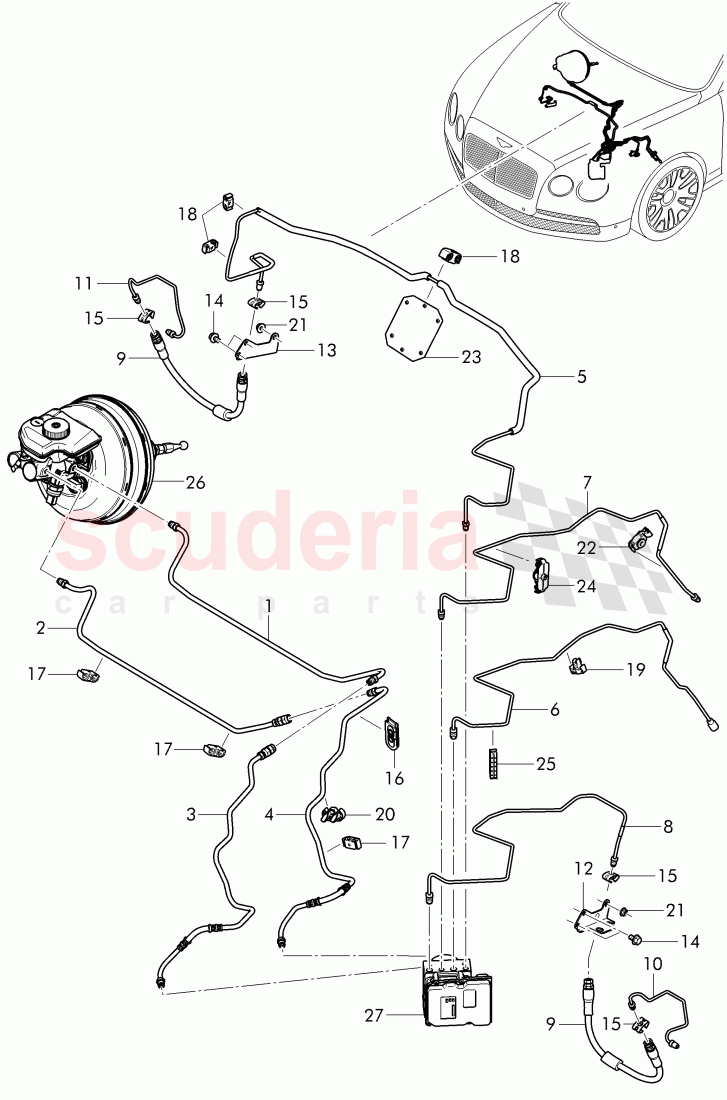

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W2614722K	brake line, master cylinder	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2614721M	brake line, master cylinder	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2614684	brake line	Enquire
	3W1614722M	brake line	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2614683	brake line, master cylinder	Enquire
	3W1614721M	brake line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0614724	brake line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0614739B	brake line, ABS-unit, D - 26.05.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0614740B	brake line, ABS-unit, D - 26.05.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5614723B	brake pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0611701	brake pipe/hose from, brake hose to piston, housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5611723	brake lining	Enquire
	3W5611723A	brake lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5611724	brake lining	Enquire
	3W5611724A	brake lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5611843A	bracket, brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5611844A	bracket, brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90245210	bolt, hex. hd. with shoulder, F 3W-8-051 366>>, F ZA-A-062 022>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611715D	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0614770	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	6Q0611797C	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611797A	retainer for brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611797	retainer for brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0611853	Spacer holder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611797E	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0614732	heatshield	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611797C	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	6Q0611797D	clip	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W2614722K	brake line, master cylinder	3W2614722K brake line, master cylinder rhd,	-	1	Enquire
2	3W2614721M	brake line, master cylinder	3W2614721M brake line, master cylinder rhd,	-	1	Enquire
3	3W2614684	brake line	3W2614684 brake line primary, rhd,	-	1	Enquire
3	3W1614722M	brake line	3W1614722M brake line primary, lhd,	-	1	Enquire
4	3W2614683	brake line, master cylinder	3W2614683 brake line, master cylinder sekundary, rhd,	-	1	Enquire
4	3W1614721M	brake line	3W1614721M brake line sekundary, lhd,	-	1	Enquire
5	4W0614724	brake line	4W0614724 brake line right front,	-	1	Enquire
6	4W0614739B	brake line, ABS-unit, D - 26.05.2014>>	4W0614739B brake line, ABS-unit, D - 26.05.2014>> left, left rear,	-	1	Enquire
7	4W0614740B	brake line, ABS-unit, D - 26.05.2014>>	4W0614740B brake line, ABS-unit, D - 26.05.2014>> right, right rear,	-	1	Enquire
8	3W5614723B	brake pipe	3W5614723B brake pipe left front,	-	1	Enquire
9	4W0611701	brake pipe/hose from, brake hose to piston, housing	4W0611701 brake pipe/hose from, brake hose to piston, housing left, right,	-	2	Enquire
10	3W5611723	brake lining	3W5611723 brake lining left front, PR-1LL	-	1	Enquire
10	3W5611723A	brake lining	3W5611723A brake lining left front, PR-1LU	-	1	Enquire
11	3W5611724	brake lining	3W5611724 brake lining right front, PR-1LL	-	1	Enquire
11	3W5611724A	brake lining	3W5611724A brake lining right front, PR-1LU	-	1	Enquire
12	3W5611843A	bracket, brake hose	3W5611843A bracket, brake hose left,	-	1	Enquire
13	3W5611844A	bracket, brake hose	3W5611844A bracket, brake hose right,	-	1	Enquire
14	N90245210	bolt, hex. hd. with shoulder, F 3W-8-051 366>>, F ZA-A-062 022>>	N90245210 bolt, hex. hd. with shoulder, F 3W-8-051 366>>, F ZA-A-062 022>> M6X10,	-	4	Enquire
15	3D0611715D	retaining spring	3D0611715D retaining spring	-	4	Enquire
16	3W0614770	grommet	3W0614770 grommet	-	1	Enquire
17	6Q0611797C	bracket	6Q0611797C bracket	-	3	Enquire
18	3W0611797A	retainer for brake hose	3W0611797A retainer for brake hose	-	3	Enquire
19	3W0611797	retainer for brake hose	3W0611797 retainer for brake hose	-	1	Enquire
20	4H0611853	Spacer holder	4H0611853 Spacer holder	-	1	Enquire
21	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	N02300212 hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742 M6,	-	2	Enquire
22	3D0611797E	bracket	3D0611797E bracket	-	1	Enquire
23	3W0614732	heatshield	3W0614732 heatshield	-	1	Enquire
24	3D0611797C	bracket	3D0611797C bracket	-	1	Enquire
25	6Q0611797D	clip	6Q0611797D clip	-	1	Enquire
