brake line, brake hose, D - MJ 2016>> of Bentley Bentley Continental Flying Spur (2013+)

View All

Bentley Continental Flying Spur (2013+) - brake line, brake hose, D - MJ 2016>>

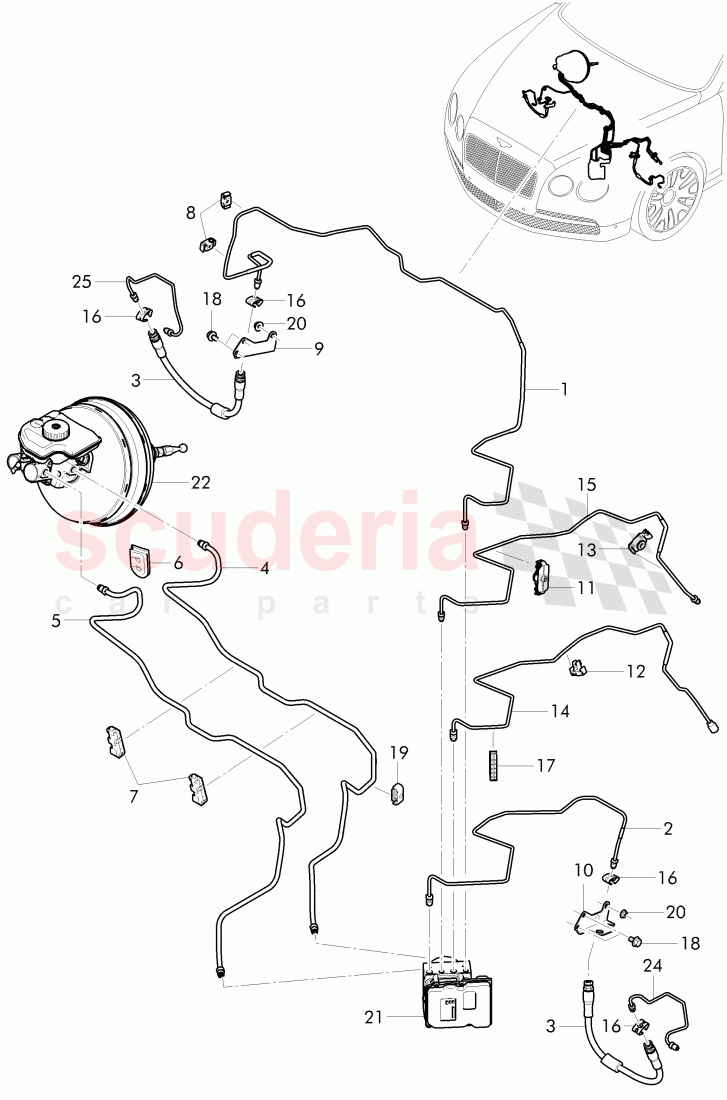

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4W0614724A	brake line	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5614723B	brake pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0611701	brake pipe/hose from, brake hose to piston, housing	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2614722L	brake line, brake booster, ABS-unit	Enquire
	3W1614722N	brake line, brake booster, ABS-unit	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2614721N	brake line, brake booster, ABS-unit	Enquire
	3W1614721N	brake line, brake booster, ABS-unit	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2614769	grommet	Enquire
	3W1614769	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W2611797	retainer for brake pipe	Enquire
	3D0611797	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611797A	retainer for brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5611844A	bracket, brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5611843A	bracket, brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611797C	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0611797	retainer for brake hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611797E	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0614739B	brake line, ABS-unit, D - 26.05.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0614740B	brake line, ABS-unit, D - 26.05.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0611715D	retaining spring	Enquire

Photo	Part No	Description	Price (each)	Stock
	6Q0611797D	clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90245210	bolt, hex. hd. with shoulder, F 3W-8-051 366>>, F ZA-A-062 022>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6Q0611797C	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5611723	brake lining	Enquire
	3W5611723A	brake lining	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5611724	brake lining	Enquire
	3W5611724A	brake lining	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4W0614724A	brake line	4W0614724A brake line right front,	-	1	Enquire
2	3W5614723B	brake pipe	3W5614723B brake pipe left front,	-	1	Enquire
3	4W0611701	brake pipe/hose from, brake hose to piston, housing	4W0611701 brake pipe/hose from, brake hose to piston, housing left a. right,	-	2	Enquire
4	3W2614722L	brake line, brake booster, ABS-unit	3W2614722L brake line, brake booster, ABS-unit front, primary, rhd,	-	1	Enquire
4	3W1614722N	brake line, brake booster, ABS-unit	3W1614722N brake line, brake booster, ABS-unit front, primary, lhd,	-	1	Enquire
5	3W2614721N	brake line, brake booster, ABS-unit	3W2614721N brake line, brake booster, ABS-unit front, sekundary, rhd,	-	1	Enquire
5	3W1614721N	brake line, brake booster, ABS-unit	3W1614721N brake line, brake booster, ABS-unit front, sekundary, lhd,	-	1	Enquire
6	3W2614769	grommet	3W2614769 grommet rhd,	-	1	Enquire
6	3W1614769	grommet	3W1614769 grommet lhd,	-	1	Enquire
7	3W2611797	retainer for brake pipe	3W2611797 retainer for brake pipe rhd,	-	2	Enquire
7	3D0611797	bracket	3D0611797 bracket lhd,	-	2	Enquire
8	3W0611797A	retainer for brake hose	3W0611797A retainer for brake hose	-	2	Enquire
9	3W5611844A	bracket, brake hose	3W5611844A bracket, brake hose right,	-	1	Enquire
10	3W5611843A	bracket, brake hose	3W5611843A bracket, brake hose left,	-	1	Enquire
11	3D0611797C	bracket	3D0611797C bracket	-	1	Enquire
12	3W0611797	retainer for brake hose	3W0611797 retainer for brake hose	-	2	Enquire
13	3D0611797E	bracket	3D0611797E bracket	-	1	Enquire
14	4W0614739B	brake line, ABS-unit, D - 26.05.2014>>	4W0614739B brake line, ABS-unit, D - 26.05.2014>> left, left rear,	-	1	Enquire
15	4W0614740B	brake line, ABS-unit, D - 26.05.2014>>	4W0614740B brake line, ABS-unit, D - 26.05.2014>> right, right rear,	-	1	Enquire
16	3D0611715D	retaining spring	3D0611715D retaining spring	-	4	Enquire
17	6Q0611797D	clip	6Q0611797D clip	-	1	Enquire
18	N90245210	bolt, hex. hd. with shoulder, F 3W-8-051 366>>, F ZA-A-062 022>>	N90245210 bolt, hex. hd. with shoulder, F 3W-8-051 366>>, F ZA-A-062 022>> M6X10,	-	4	Enquire
19	6Q0611797C	bracket	6Q0611797C bracket	-	1	Enquire
20	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	N02300212 hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742 M6,	-	2	Enquire
24	3W5611723	brake lining	3W5611723 brake lining left front, PR-1LL	-	1	Enquire
24	3W5611723A	brake lining	3W5611723A brake lining left front, PR-1LU	-	1	Enquire
25	3W5611724	brake lining	3W5611724 brake lining right front, PR-1LL	-	1	Enquire
25	3W5611724A	brake lining	3W5611724A brake lining right front, PR-1LU	-	1	Enquire
