Find Your Part

View All

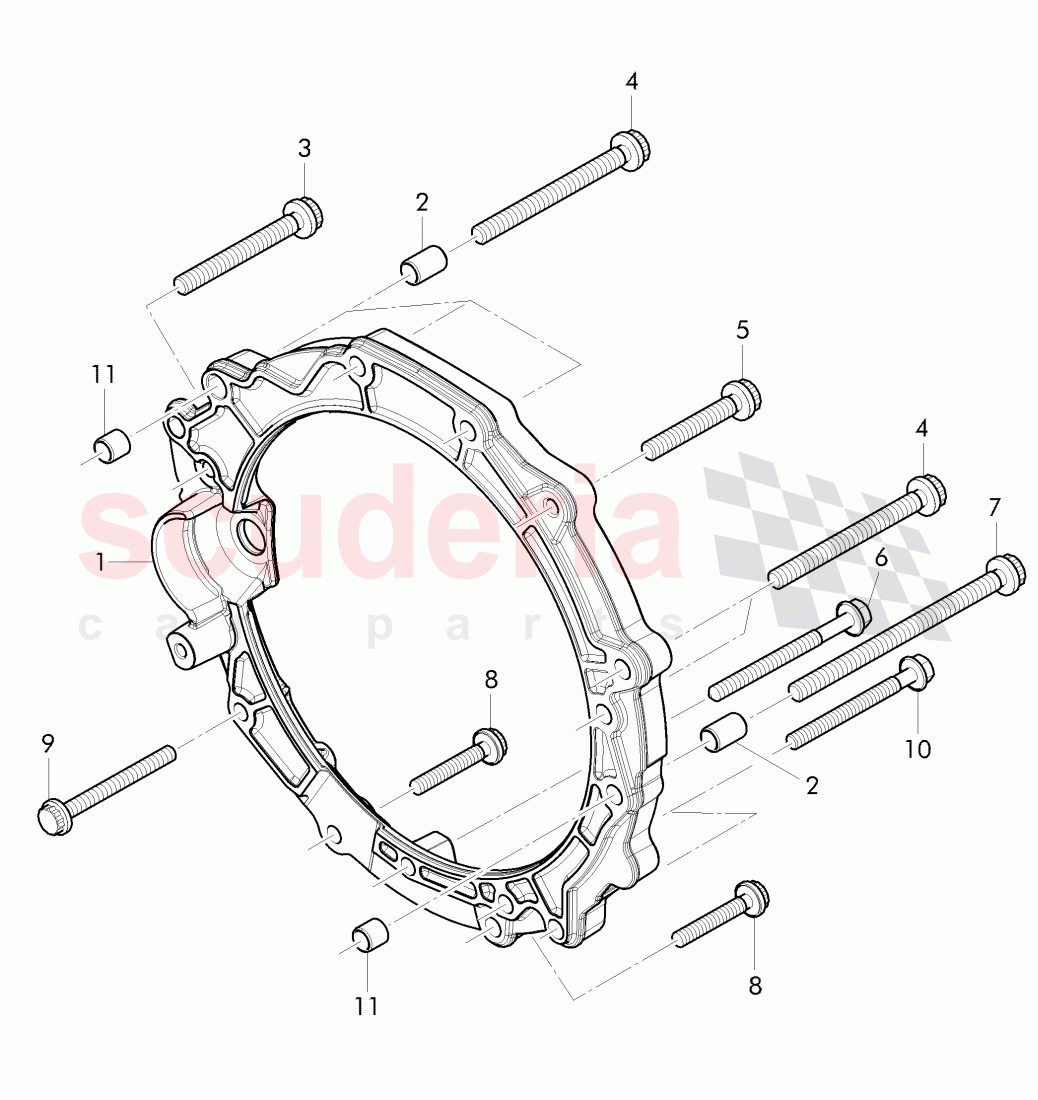

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0103546A	intermediate plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	1E301153H	dowel sleeve D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91129601	12 point socket head screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91129801	12 point socket head screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91129501	Cylinder head screw with torx, head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10691501	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91129901	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91150701	Cylinder head screw with torx, head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91153201	12-edge flange screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10650502	bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	22103139B	dowel sleeve	Enquire

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0103546A	intermediate plate	3W0103546A intermediate plate	-	1	Enquire
2	1E301153H	dowel sleeve D - 06.11.2006>>	1E301153H dowel sleeve D - 06.11.2006>> 16X24,5,	-	2	Enquire
3	N91129601	12 point socket head screw	N91129601 12 point socket head screw M12X100,	-	1	Enquire
4	N91129801	12 point socket head screw	N91129801 12 point socket head screw M12X125,	-	5	Enquire
5	N91129501	Cylinder head screw with torx, head	N91129501 Cylinder head screw with torx, head M12X75,	-	1	Enquire
6	N10691501	bolt, hex. hd. with shoulder	N10691501 bolt, hex. hd. with shoulder M10X118,	-	1	Enquire
7	N91129901	bolt, hex. hd. with shoulder	N91129901 bolt, hex. hd. with shoulder M12X175,	-	1	Enquire
8	N91150701	Cylinder head screw with torx, head	N91150701 Cylinder head screw with torx, head M10X60,	-	2	Enquire
9	N91153201	12-edge flange screw	N91153201 12-edge flange screw M10X95,	-	1	Enquire
10	N10650502	bolt	N10650502 bolt M10X105,	-	2	Enquire
11	22103139B	dowel sleeve	22103139B dowel sleeve 16X13,5,	-	2	Enquire
