Bentley Continental Flying Spur (2013+) - oil pressure line for gear oil cooling, Gear oil cooler, F >> 3W-F-044 095, F >> ZA-F-044 095

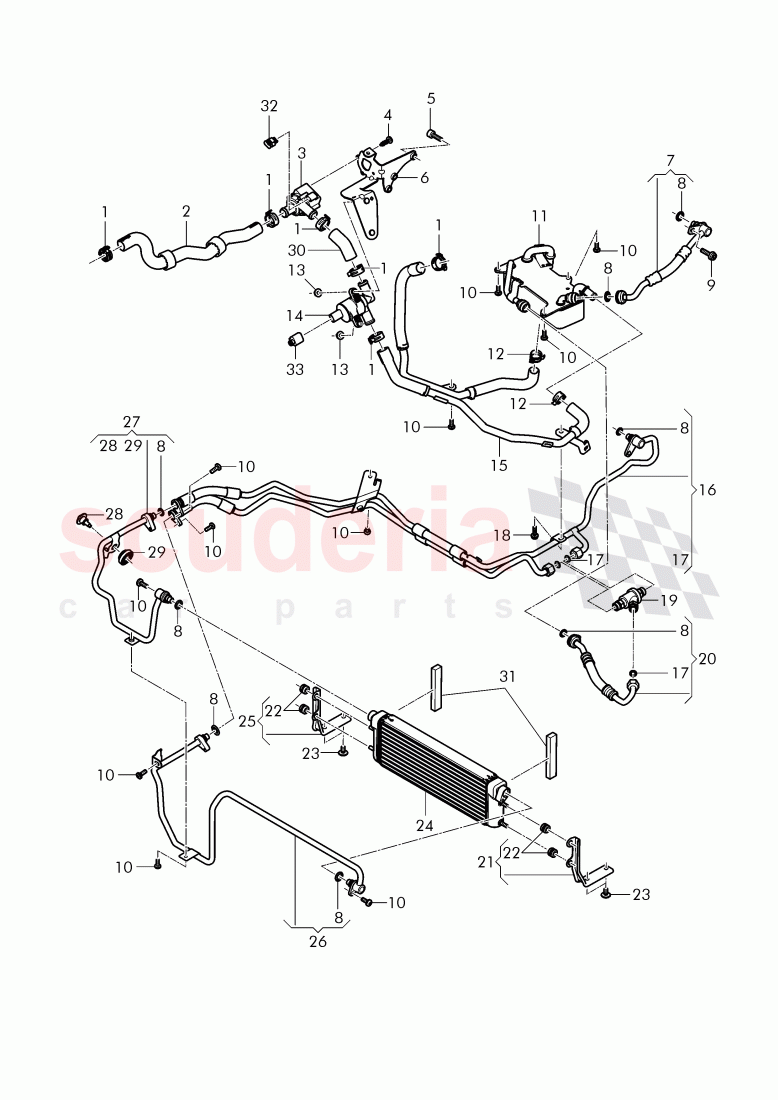

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WHT007714	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317066A	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	59121012A	additional coolant pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002306	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317351	bracket for additional water, pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317759	oil return line, Gear oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90666003	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451405	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317023	heater core, Gear oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90686901	Spring band clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0121671D	solenoid valve, D - 22.07.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317065A	water coolant pipe with, water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317817D	oil pressure line for, gear oil cooling, D - 15.09.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90303801	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10323104	socket head bolt with inner multipoint head D - 06.11.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0317027	thermal switch	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317761	oil pressure line for, gear oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317193	bracket for oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317867	rubber isolator, oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737105	Hexagon socket oval head bolt, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0317019A	Gear oil cooler, D - 07.10.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317355	bracket for oil cooler	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0317808	oil pressure line for, gear oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0317807A	oil pressure line for, gear oil cooling	Enquire

Photo	Part No	Description	Price (each)	Stock
	3C0145830	Spacer sleeve with cylinder collar bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	867129669	Grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0317031	water hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121331	seal piece, (adhesivel)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0972208	plug for socket, water pump, D - MJ 2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0972144	plug for socket, solenoid valve, D - MJ 2015>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	WHT007714	Spring band clamp	WHT007714 Spring band clamp 27X12,	-	6	Enquire
2	3W0317066A	water hose	3W0317066A water hose	-	1	Enquire
3	59121012A	additional coolant pump	59121012A additional coolant pump	-	1	Enquire
4	WHT002306	self-tapping screw	WHT002306 self-tapping screw	-	3	Enquire
6	3W0317351	bracket for additional water, pump	3W0317351 bracket for additional water, pump	-	1	Enquire
7	3W0317759	oil return line, Gear oil cooler	3W0317759 oil return line, Gear oil cooler	-	1	Enquire
8	N90666003	O-ring	N90666003 O-ring 11.5X3,	-	8	Enquire
9	N90500604	socket head bolt with inner, hex round head, D - 06.11.2006>>	N90500604 socket head bolt with inner, hex round head, D - 06.11.2006>> M6X22,	-	1	Enquire
10	N10451405	Oval hexagon socket head bolt	N10451405 Oval hexagon socket head bolt M6X16,	-	11	Enquire
11	3W0317023	heater core, Gear oil cooler	3W0317023 heater core, Gear oil cooler	-	1	Enquire
12	N90686901	Spring band clamp	N90686901 Spring band clamp 23X12,	-	2	Enquire
13	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	2	Enquire
14	4H0121671D	solenoid valve, D - 22.07.2013>>	4H0121671D solenoid valve, D - 22.07.2013>>	-	1	Enquire
15	3W0317065A	water coolant pipe with, water hose	3W0317065A water coolant pipe with, water hose	-	1	Enquire
16	3W0317817D	oil pressure line for, gear oil cooling, D - 15.09.2014>>	3W0317817D oil pressure line for, gear oil cooling, D - 15.09.2014>> supply/return,	-	1	Enquire
17	N90303801	O-Ring	N90303801 O-Ring 9X1,5,	-	3	Enquire
18	N10323104	socket head bolt with inner multipoint head D - 06.11.2006>>	N10323104 socket head bolt with inner multipoint head D - 06.11.2006>> M6X20,	-	1	Enquire
19	4D0317027	thermal switch	4D0317027 thermal switch	-	1	Enquire
20	3W0317761	oil pressure line for, gear oil cooling	3W0317761 oil pressure line for, gear oil cooling	-	1	Enquire
21	3W0317193	bracket for oil cooler	3W0317193 bracket for oil cooler side left,	-	1	Enquire
22	3W0317867	rubber isolator, oil cooler	3W0317867 rubber isolator, oil cooler	-	4	Enquire
23	N90737105	Hexagon socket oval head bolt, self-locking	N90737105 Hexagon socket oval head bolt, self-locking M6X12,	-	4	Enquire
24	4W0317019A	Gear oil cooler, D - 07.10.2013>>	4W0317019A Gear oil cooler, D - 07.10.2013>>	-	1	Enquire
25	3W0317355	bracket for oil cooler	3W0317355 bracket for oil cooler side right,	-	1	Enquire
26	4W0317808	oil pressure line for, gear oil cooling	4W0317808 oil pressure line for, gear oil cooling left,	-	1	Enquire
27	4W0317807A	oil pressure line for, gear oil cooling	4W0317807A oil pressure line for, gear oil cooling right,	-	1	Enquire
28	3C0145830	Spacer sleeve with cylinder collar bolt	3C0145830 Spacer sleeve with cylinder collar bolt	-	1	Enquire
29	867129669	Grommet	867129669 Grommet	-	1	Enquire
30	3W0317031	water hose	3W0317031 water hose	-	1	Enquire
31	3W0121331	seal piece, (adhesivel)	3W0121331 seal piece, (adhesivel) left a. right,	-	2	Enquire
32	3W0972208	plug for socket, water pump, D - MJ 2015>>	3W0972208 plug for socket, water pump, D - MJ 2015>>	-	1	Enquire
33	3W0972144	plug for socket, solenoid valve, D - MJ 2015>>	3W0972144 plug for socket, solenoid valve, D - MJ 2015>>	-	1	Enquire
