windshield washer unit of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - windshield washer unit

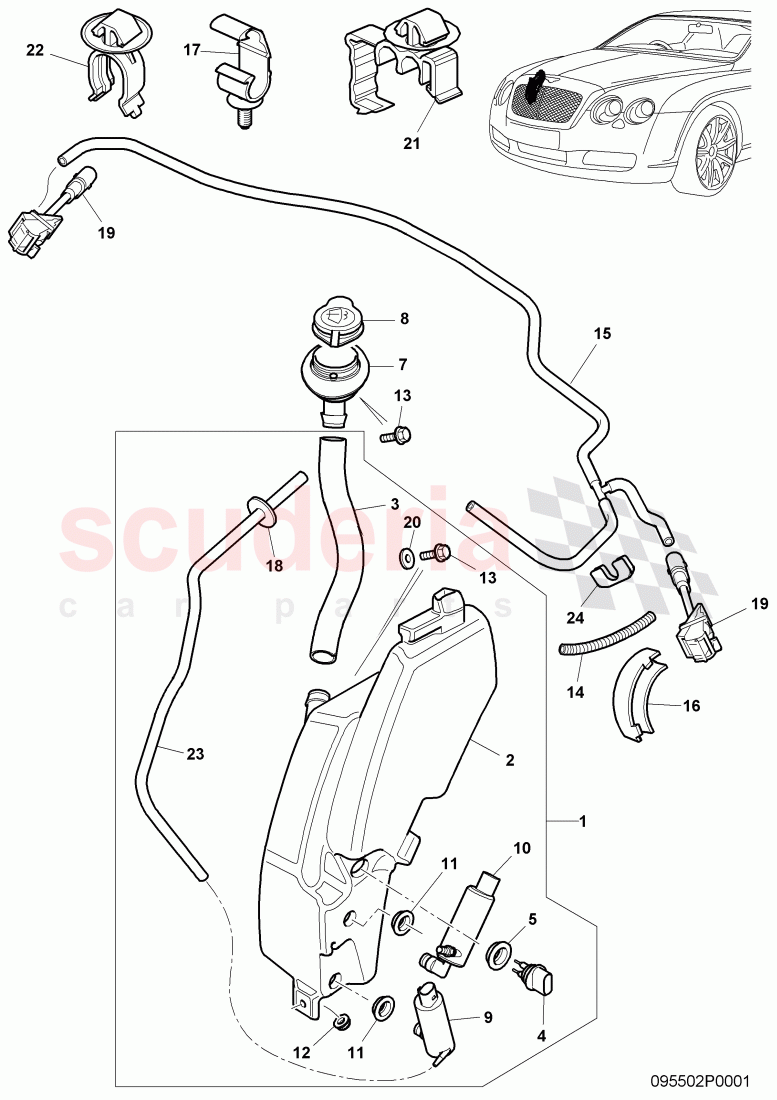

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0955449F	Wash water reservoir, F 3W-8-054 195>>, F 3W-A-062 566>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955453C	Wash water reservoir, D - 31.10.2005>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955487	Hose, water filler neck	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M0919376	Water level switch	Enquire

Photo	Part No	Description	Price (each)	Stock
	7M0919382	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955463B	water filler neck, D - 03.10.2005>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0955455B	sealing cap	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0955651	windscreen washer system pump	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0955681	Pump for headlight-, washer system	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0955465	o-ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10338903	Hex collared bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0955845A	hose support D - >> 26.11.2007	Enquire	IN STOCK
	3W0955845B	Hose, support, F 3W-8-054 139>>, F 3W-A-062 566>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0955964G	hose line for washer water D - >> 26.11.2007	Enquire	IN STOCK
	3W0955964N	windscreen washer fluid line, windshield glass	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0955198	Hose, support	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90681501	Corrugated tube clip	Enquire	IN STOCK
	N90681601	Corrugated tube clip	Enquire	IN STOCK
	N90683801	bracket for corrugated pipe	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0955192	grommet	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0955986A	heated spraying jet	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0115171	washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0955747	bracket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0955747A	bracket, convoluted tubing	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0955964K	windscreen washer fluid line, reservoir, windshield glass, F 3W-8-054 195>>, F 3W-A-062 566>>	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0955125	Clip	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0955449F	Wash water reservoir, F 3W-8-054 195>>, F 3W-A-062 566>>	3W0955449F Wash water reservoir, F 3W-8-054 195>>, F 3W-A-062 566>>	-	1	Enquire
2	3W0955453C	Wash water reservoir, D - 31.10.2005>>	3W0955453C Wash water reservoir, D - 31.10.2005>>	-	1	Enquire
3	3W0955487	Hose, water filler neck	3W0955487 Hose, water filler neck	-	1	Enquire
4	7M0919376	Water level switch	7M0919376 Water level switch	-	1	Enquire
5	7M0919382	seal ring	7M0919382 seal ring	-	1	Enquire
7	3W0955463B	water filler neck, D - 03.10.2005>>	3W0955463B water filler neck, D - 03.10.2005>>	-	1	Enquire
8	3W0955455B	sealing cap IN STOCK	3W0955455B sealing cap IN STOCK	-	1	Enquire
9	3W0955651	windscreen washer system pump	3W0955651 windscreen washer system pump	-	1	Enquire
10	3W0955681	Pump for headlight-, washer system IN STOCK	3W0955681 Pump for headlight-, washer system IN STOCK	-	1	Enquire
11	3W0955465	o-ring IN STOCK	3W0955465 o-ring IN STOCK	-	2	Enquire
12	N02300212	hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742	N02300212 hex. nut, self-locking, F >> 3Y-C-016 742, F >> ZH-C-016 742 M6,	-	1	Enquire
13	N10338903	Hex collared bolt	N10338903 Hex collared bolt	-	2	Enquire
14	3W0955845A	hose support D - >> 26.11.2007	3W0955845A hose support D - >> 26.11.2007	-	1	Enquire
14	3W0955845B	Hose, support, F 3W-8-054 139>>, F 3W-A-062 566>>	3W0955845B Hose, support, F 3W-8-054 139>>, F 3W-A-062 566>>	-	1	Enquire
15	3W0955964G	hose line for washer water D - >> 26.11.2007	3W0955964G hose line for washer water D - >> 26.11.2007	-	1	Enquire
15	3W0955964N	windscreen washer fluid line, windshield glass IN STOCK	3W0955964N windscreen washer fluid line, windshield glass IN STOCK	-	1	Enquire
16	3W0955198	Hose, support	3W0955198 Hose, support	-	1	Enquire
17	N90681501	Corrugated tube clip	N90681501 Corrugated tube clip M12,	-	1	Enquire
17	N90681601	Corrugated tube clip IN STOCK	N90681601 Corrugated tube clip 13, IN STOCK	-	2	Enquire
17	N90683801	bracket for corrugated pipe	N90683801 bracket for corrugated pipe	-	2	Enquire
18	3W0955192	grommet	3W0955192 grommet	-	1	Enquire
19	3D0955986A	heated spraying jet IN STOCK	3D0955986A heated spraying jet LHD and RHD, IN STOCK	-	2	Enquire
20	N0115171	washer IN STOCK	N0115171 washer IN STOCK	-	1	Enquire
21	3D0955747	bracket	3D0955747 bracket	-	3	Enquire
22	3D0955747A	bracket, convoluted tubing	3D0955747A bracket, convoluted tubing	-	2	Enquire
23	3W0955964K	windscreen washer fluid line, reservoir, windshield glass, F 3W-8-054 195>>, F 3W-A-062 566>>	3W0955964K windscreen washer fluid line, reservoir, windshield glass, F 3W-8-054 195>>, F 3W-A-062 566>>	-	1	Enquire
24	3W0955125	Clip	3W0955125 Clip	-	1	Enquire
