Battery system, F 3W-5-026 890>> 3W-5-030 707 of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - Battery system, F 3W-5-026 890>> 3W-5-030 707

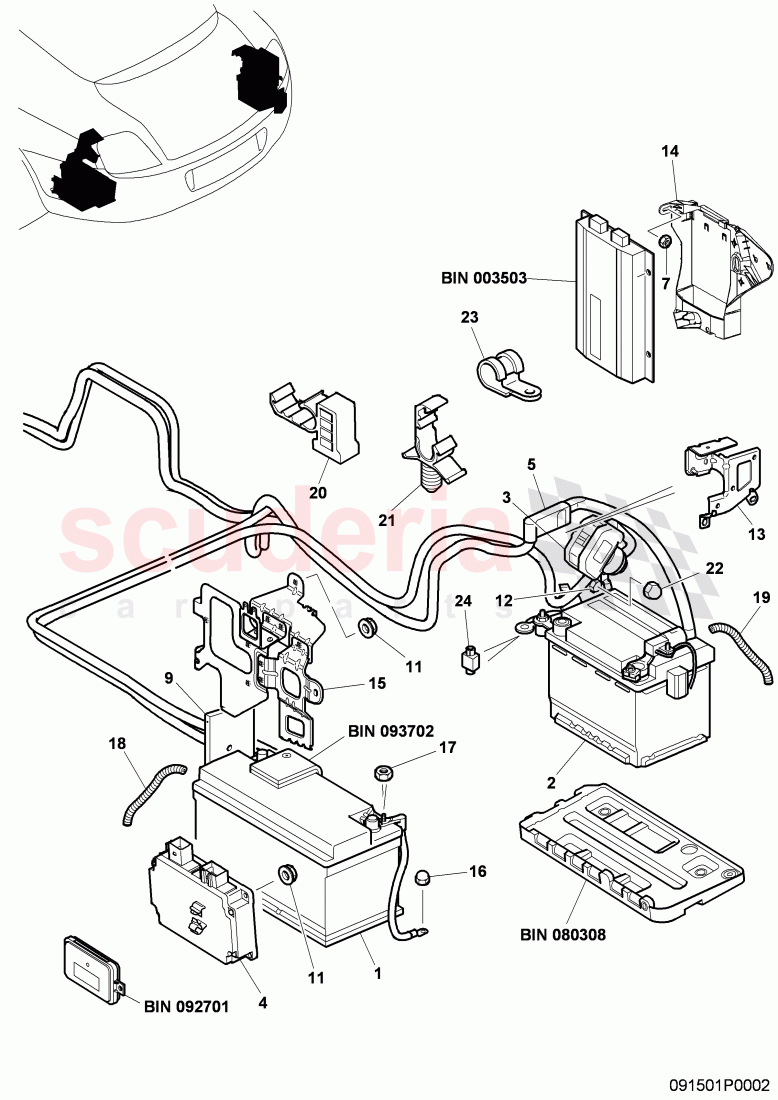

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	915105CE	battery, filled and charged, D - 29.06.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	915105DE	battery with charge state, indicator,filled and charged, D >> - 31.07.2006	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0919507	relay	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0915181F	Control unit for battery, monitoring, (manufactured to order, refer, to the control unit table on, Bentley Hub)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0915521	protective cap, for vehicles with 2.battery, F 3W-5-030 712>> 3W-8-052 842	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90342504	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0971791E	insulation strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000519	shouldered hex. nut, D - 23.05.2011>>	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	$2.93	IN STOCK
	N90652601	weld screw	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W5937513	bracket, solenoid	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0035209C	bracket protective sleeve	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W5907331	bracket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT000869	weld bolt with domed, cap nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N01100840	hexagon nut	$1.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8E0915531	convoluted tubing, battery discahrge	$14.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7H0915531	convoluted tubing, for vehicles with 2.battery, rework if necessary	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90696801	bracket for corrugated pipe	$1.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90681301	bracket for corrugated pipe	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0915521A	protective cap, D >> - 28.11.2005	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10259901	clamp	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1J0919379A	ambient temperature sensor, flat contact housing	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	915105CE	battery, filled and charged, D - 29.06.2011>>	915105CE battery, filled and charged, D - 29.06.2011>> H8, fleece,	-	1	Enquire
2	915105DE	battery with charge state, indicator,filled and charged, D >> - 31.07.2006	915105DE battery with charge state, indicator,filled and charged, D >> - 31.07.2006 H5,	-	1	Enquire
3	3D0919507	relay	3D0919507 relay	-	1	Enquire
4	3D0915181F	Control unit for battery, monitoring, (manufactured to order, refer, to the control unit table on, Bentley Hub)	3D0915181F Control unit for battery, monitoring, (manufactured to order, refer, to the control unit table on, Bentley Hub)	-	1	Enquire
5	3D0915521	protective cap, for vehicles with 2.battery, F 3W-5-030 712>> 3W-8-052 842	3D0915521 protective cap, for vehicles with 2.battery, F 3W-5-030 712>> 3W-8-052 842	-	1	Enquire
7	N90342504	speed nut	N90342504 speed nut M6X19,5X18,0,	-	2	Enquire
9	3D0971791E	insulation strip	3D0971791E insulation strip	-	1	Enquire
11	WHT000519	shouldered hex. nut, D - 23.05.2011>> IN STOCK	WHT000519 shouldered hex. nut, D - 23.05.2011>> M6, IN STOCK	$1.02	8
12	N90215805	shouldered hex. nut, Discont./New add.+FULU calc. IN STOCK	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6, IN STOCK	$2.93	5
12	N90652601	weld screw	N90652601 weld screw M5X16,	-	1	Enquire
13	3W5937513	bracket, solenoid	3W5937513 bracket, solenoid	-	1	Enquire
14	3D0035209C	bracket protective sleeve	3D0035209C bracket protective sleeve	-	1	Enquire
15	3W5907331	bracket	3W5907331 bracket left,	-	1	Enquire
16	WHT000869	weld bolt with domed, cap nut	WHT000869 weld bolt with domed, cap nut M8,	-	2	Enquire
17	N01100840	hexagon nut IN STOCK	N01100840 hexagon nut M8, IN STOCK	$1.61	2
18	8E0915531	convoluted tubing, battery discahrge IN STOCK	8E0915531 convoluted tubing, battery discahrge 1187MM, IN STOCK	$14.80	1
19	7H0915531	convoluted tubing, for vehicles with 2.battery, rework if necessary	7H0915531 convoluted tubing, for vehicles with 2.battery, rework if necessary 470MM,	-	1	Enquire
20	N90696801	bracket for corrugated pipe IN STOCK	N90696801 bracket for corrugated pipe 4,5, IN STOCK	$1.88	2
21	N90681301	bracket for corrugated pipe	N90681301 bracket for corrugated pipe	-	1	Enquire
22	3W0915521A	protective cap, D >> - 28.11.2005	3W0915521A protective cap, D >> - 28.11.2005	-	1	Enquire
23	N10259901	clamp	N10259901 clamp 14X15,	-	2	Enquire
24	1J0919379A	ambient temperature sensor, flat contact housing	1J0919379A ambient temperature sensor, flat contact housing 1J0 973 702,	-	1	Enquire
