wheel hub with bearing and assembly parts, track control arm, F 3W-5-026 890>> 3W-8-052 846 of Bentley Bentley Continental Flying Spur (2006-2012)

View All

Bentley Continental Flying Spur (2006-2012) - wheel hub with bearing and assembly parts, track control arm, F 3W-5-026 890>> 3W-8-052 846

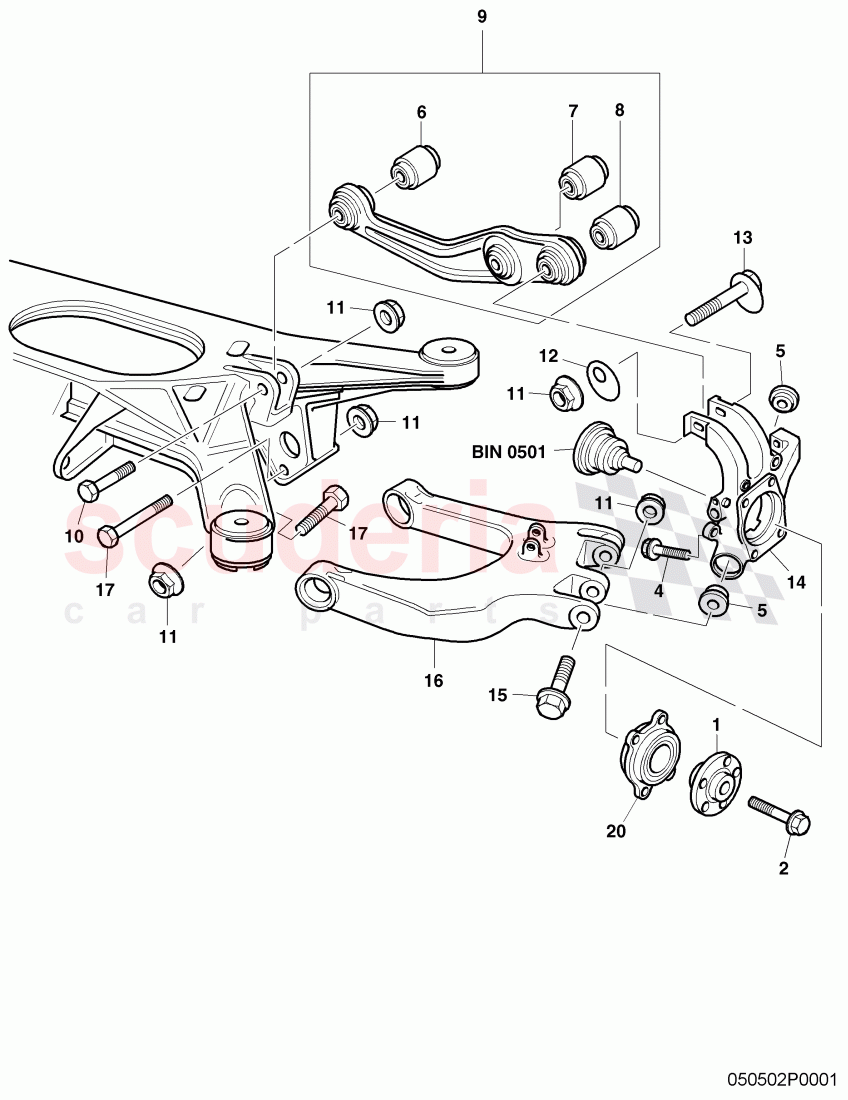

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4E0407613C	wheel hub, F 3W-7-039 828>> 3W-8-052 847	Enquire

Photo	Part No	Description	Price (each)	Stock
	8E0407643A	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT000237	ball screw, marked blue	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0505171	bonded rubber mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0505323AB	wishbone F 3W-8-052 846>> 3W-8-059 514	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10514901	bolt, hex. hd. (combi.), D - 30.01.2006>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001656	eccentric washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT001661	eccentric screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0505435M	wheel bearing housing, F 3W-5-027 315>>	Enquire
	3D0505436M	wheel bearing housing, F 3W-5-027 315>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90924103	bolt, hex. hd. with pin, (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0511511G	trailing arm, F 3W-8-052 846>> 3W-8-059 514	Enquire
	4E0511512G	trailing arm, F 3W-8-052 846>> 3W-8-059 514	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10294902	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0407625F	double (angled) ball bearing with flange F 3W-7-039 828>> 3W-8-052 847	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4E0407613C	wheel hub, F 3W-7-039 828>> 3W-8-052 847	4E0407613C wheel hub, F 3W-7-039 828>> 3W-8-052 847 92MM,	-	2	Enquire
2	8E0407643A	socket head bolt with inner multipoint head	8E0407643A socket head bolt with inner multipoint head M16X72,	-	2	Enquire
4	WHT000237	ball screw, marked blue	WHT000237 ball screw, marked blue M12X1,5 10,9,	-	8	Enquire
5	3D0505171	bonded rubber mounting	3D0505171 bonded rubber mounting	-	4	Enquire
9	4E0505323AB	wishbone F 3W-8-052 846>> 3W-8-059 514	4E0505323AB wishbone F 3W-8-052 846>> 3W-8-059 514 rear, upper,	-	2	Enquire
10	N10514901	bolt, hex. hd. (combi.), D - 30.01.2006>>	N10514901 bolt, hex. hd. (combi.), D - 30.01.2006>> M12X92,	-	2	Enquire
11	N10106402	shouldered hex. nut,, self-locking, D >> - 12.06.2017	N10106402 shouldered hex. nut,, self-locking, D >> - 12.06.2017 M12X1,5,	-	10	Enquire
12	WHT001656	eccentric washer	WHT001656 eccentric washer	-	2	Enquire
13	WHT001661	eccentric screw	WHT001661 eccentric screw M12X1,5X95,	-	2	Enquire
14	3D0505435M	wheel bearing housing, F 3W-5-027 315>>	3D0505435M wheel bearing housing, F 3W-5-027 315>> 92MM, left,	-	1	Enquire
14	3D0505436M	wheel bearing housing, F 3W-5-027 315>>	3D0505436M wheel bearing housing, F 3W-5-027 315>> 92MM, right,	-	1	Enquire
15	N90924103	bolt, hex. hd. with pin, (combi)	N90924103 bolt, hex. hd. with pin, (combi) M12X127,	-	2	Enquire
16	4E0511511G	trailing arm, F 3W-8-052 846>> 3W-8-059 514	4E0511511G trailing arm, F 3W-8-052 846>> 3W-8-059 514 left, PR-K8C+1BK	-	1	Enquire
16	4E0511512G	trailing arm, F 3W-8-052 846>> 3W-8-059 514	4E0511512G trailing arm, F 3W-8-052 846>> 3W-8-059 514	-	1	Enquire
17	N10294902	hexagon head bolt (combi)	N10294902 hexagon head bolt (combi) M12X97, U-S20-TC,	-	4	Enquire

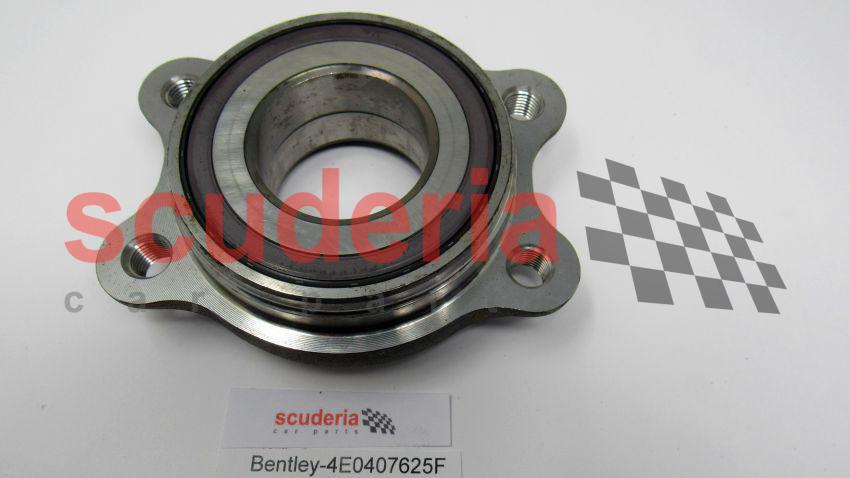

20	4E0407625F	double (angled) ball bearing with flange F 3W-7-039 828>> 3W-8-052 847	4E0407625F double (angled) ball bearing with flange F 3W-7-039 828>> 3W-8-052 847 92MM,	-	2	Enquire
