sub-frame of Bentley Bentley Continental Flying Spur (2006-2012)

View All

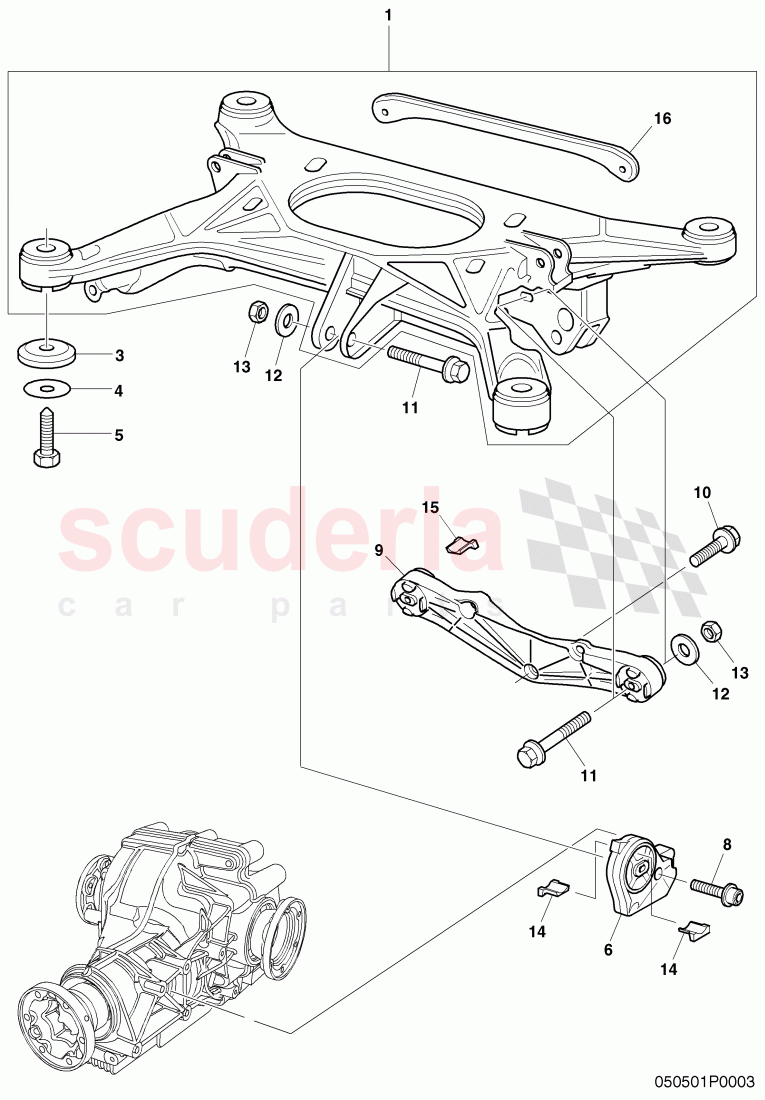

Bentley Continental Flying Spur (2006-2012) - sub-frame

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W5505235A	sub-frame, with rubber mounting, D - 21.07.2008>>	Enquire
	3W5505235A	sub-frame, with rubber mounting, D - 21.07.2008>>	Enquire
	4W0505235A	sub-frame, with rubber mounting, D - 28.07.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0505193	Washer, D >> - 31.10.2011	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90625003	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90975302	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0599125E	support for transmission	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90668204	socket head bolt with inner multipoint head	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0599285A	cross member, D - 24.08.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10452902	socket head bolt with hexagon socket head (combination)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10232904	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01152721	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10209009	hexagon nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0599337	insert	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0505209	insert	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5505479	cross support	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W5505235A	sub-frame, with rubber mounting, D - 21.07.2008>>	3W5505235A sub-frame, with rubber mounting, D - 21.07.2008>> rear,	-	1	Enquire
1	3W5505235A	sub-frame, with rubber mounting, D - 21.07.2008>>	3W5505235A sub-frame, with rubber mounting, D - 21.07.2008>> rear, Standard, SUSPENSION, PR-2MA	-	1	Enquire
1	4W0505235A	sub-frame, with rubber mounting, D - 28.07.2014>>	4W0505235A sub-frame, with rubber mounting, D - 28.07.2014>> rear, DYNAMIC, SUSPENSION, PR-1BK	-	1	Enquire
3	4E0505193	Washer, D >> - 31.10.2011	4E0505193 Washer, D >> - 31.10.2011 105X60X9,	-	4	Enquire
4	N90625003	washer	N90625003 washer M15,	-	4	Enquire
5	N90975302	bolt, hex. hd. with shoulder	N90975302 bolt, hex. hd. with shoulder M14X135,	-	4	Enquire
6	3D0599125E	support for transmission	3D0599125E support for transmission	-	1	Enquire
8	N90668204	socket head bolt with inner multipoint head	N90668204 socket head bolt with inner multipoint head	-	4	Enquire
9	3W0599285A	cross member, D - 24.08.2015>>	3W0599285A cross member, D - 24.08.2015>>	-	1	Enquire
10	N10452902	socket head bolt with hexagon socket head (combination)	N10452902 socket head bolt with hexagon socket head (combination) M12X42,5,	-	3	Enquire
11	N10232904	hexagon head bolt (combi)	N10232904 hexagon head bolt (combi)	-	3	Enquire
12	N01152721	washer	N01152721 washer	-	3	Enquire
13	N10209009	hexagon nut, self-locking	N10209009 hexagon nut, self-locking	-	3	Enquire
14	3W0599337	insert	3W0599337 insert	-	2	Enquire
15	3W0505209	insert	3W0505209 insert	-	2	Enquire
16	3W5505479	cross support	3W5505479 cross support	-	1	Enquire
