sub frame of Bentley Bentley Bentayga (2015-2020)

View All

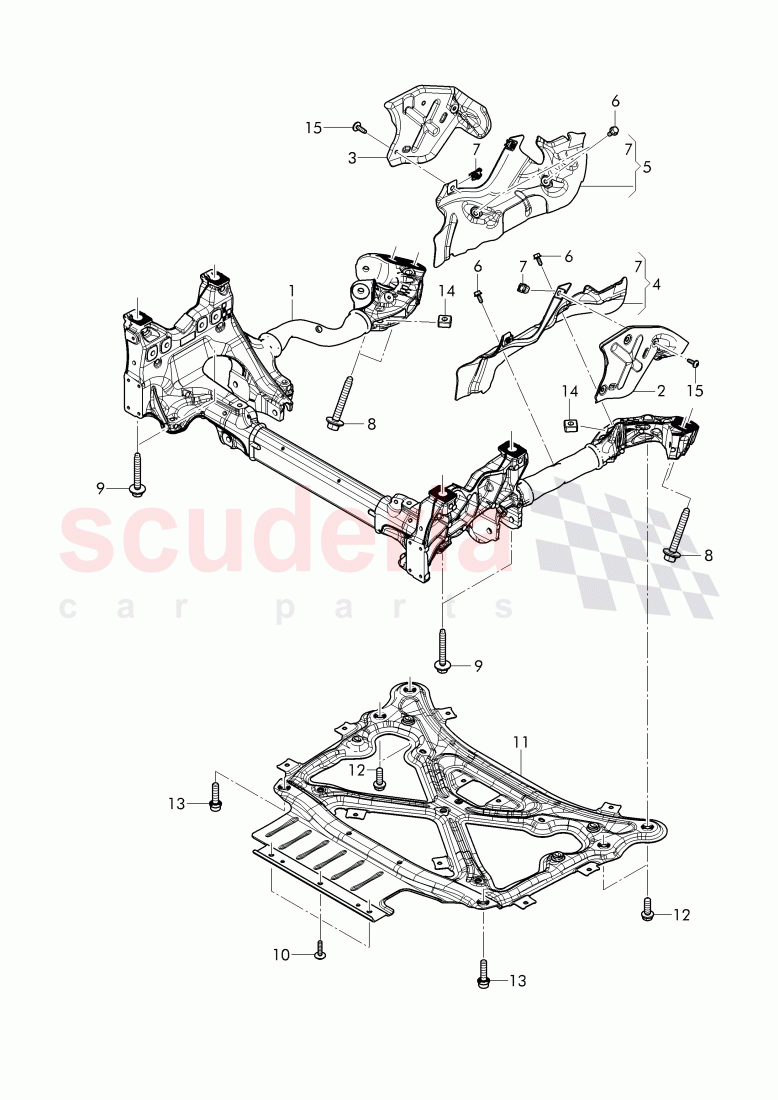

Bentley Bentayga (2015-2020) - sub frame

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0399315AA	sub frame	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0399299D	shield	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0399300D	shield	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0399299C	shield	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M0399300C	shield	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10158605	bolt,hex.hd.with shoul.(combi)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90327504	speed nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91237901	bolt, hex. hd. (combi.)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91184301	bolt, hex. hd. (combi.)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91208802	bolt, with polygon socket hd.	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4M1399345F	Strut brace for, assembly carrier	Enquire	IN STOCK
	4M2399345F	Strut brace for, assembly carrier	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91151101	hexagon head bolt (combi)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT005372	bolt, with polygon socket hd.	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT002305	nut, square	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10751101	Oval hexagon socket head bolt	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	N10759101	Hex collared bolt	N10759101 Hex collared bolt M6X12,	-	6	Enquire
1	4M0399315AA	sub frame IN STOCK	4M0399315AA sub frame IN STOCK	-	1	Enquire
2	4M0399299D	shield	4M0399299D shield left,	-	1	Enquire
3	4M0399300D	shield	4M0399300D shield right,	-	1	Enquire
4	4M0399299C	shield	4M0399299C shield left,	-	1	Enquire
5	4M0399300C	shield	4M0399300C shield right,	-	1	Enquire
6	N10158605	bolt,hex.hd.with shoul.(combi)	N10158605 bolt,hex.hd.with shoul.(combi) M6X16,	-	4	Enquire
7	N90327504	speed nut	N90327504 speed nut M6X23,5X14,5,	-	4	Enquire
8	N91237901	bolt, hex. hd. (combi.)	N91237901 bolt, hex. hd. (combi.) M14X1,5X100-, S22,	-	4	Enquire
9	N91184301	bolt, hex. hd. (combi.)	N91184301 bolt, hex. hd. (combi.) M12X1,5X90,	-	4	Enquire
10	N91208802	bolt, with polygon socket hd.	N91208802 bolt, with polygon socket hd. M8X25,	-	3	Enquire
11	4M1399345F	Strut brace for, assembly carrier	4M1399345F Strut brace for, assembly carrier lhd,	-	1	Enquire
11	4M2399345F	Strut brace for, assembly carrier	4M2399345F Strut brace for, assembly carrier rhd,	-	1	Enquire
12	N91151101	hexagon head bolt (combi)	N91151101 hexagon head bolt (combi) M12X1,5X42,	-	4	Enquire
13	WHT005372	bolt, with polygon socket hd. IN STOCK	WHT005372 bolt, with polygon socket hd. M12X1,50X51, IN STOCK	-	2	Enquire
14	WHT002305	nut, square	WHT002305 nut, square M12X1,5,	-	4	Enquire
15	N10751101	Oval hexagon socket head bolt	N10751101 Oval hexagon socket head bolt M6X20, N 107 591 01,	-	6	Enquire
