Gearbox mounting, for 8-speed automatic gearbox of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - Gearbox mounting, for 8-speed automatic gearbox

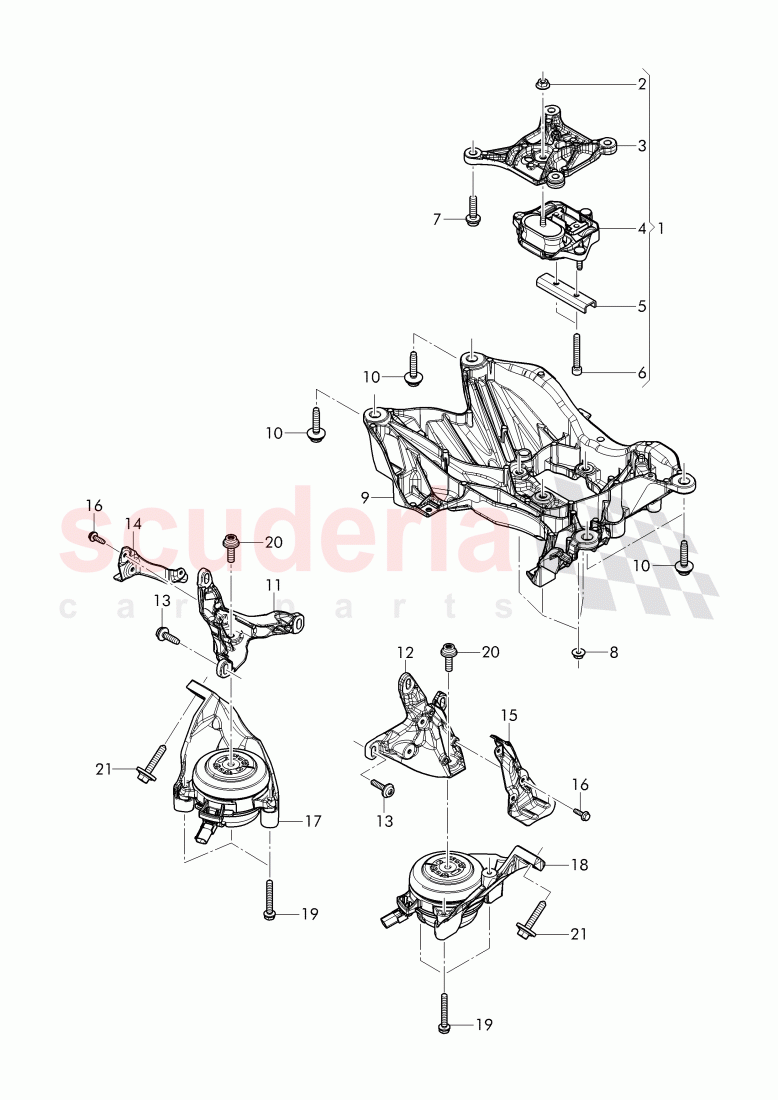

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0399106A	Gearbox mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91157401	hexagon nut, shouldered	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10724701	socket hd. screw with polygon, socket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10720402	socket hd. screw with polygon, socket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91157401	hexagon nut, shouldered	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0399262C	cross member	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91240001	Int. serration flange screw, (combi-instrument)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0399114B	mounting bracket for gearbox	Enquire

Photo	Part No	Description	Price (each)	Stock
	4N0399113	mounting bracket for gearbox, D - 25.09.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91049102	bolt, with polygon socket hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0399308C	heatshield	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0399307F	heatshield, D - 17.10.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90724603	bolt, hex. hd. (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0399202G	hydro-mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0399201G	hydro-mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10344302	bolt, hex. hd. (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91153001	bolt, with polygon socket hd., (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91252601	hexagon screw with washer	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0399106A	Gearbox mounting	4M0399106A Gearbox mounting centre/rear,	-	1	Enquire
2	N91157401	hexagon nut, shouldered	N91157401 hexagon nut, shouldered M8,	-	1	Enquire
6	N10724701	socket hd. screw with polygon, socket	N10724701 socket hd. screw with polygon, socket M8X60,	-	2	Enquire
7	N10720402	socket hd. screw with polygon, socket	N10720402 socket hd. screw with polygon, socket M10X40,	-	4	Enquire
8	N91157401	hexagon nut, shouldered	N91157401 hexagon nut, shouldered M8,	-	4	Enquire
9	4M0399262C	cross member	4M0399262C cross member centre/rear,	-	1	Enquire
10	N91240001	Int. serration flange screw, (combi-instrument)	N91240001 Int. serration flange screw, (combi-instrument) M10X50,	-	4	Enquire
11	4M0399114B	mounting bracket for gearbox	4M0399114B mounting bracket for gearbox right front,	-	1	Enquire
12	4N0399113	mounting bracket for gearbox, D - 25.09.2017>>	4N0399113 mounting bracket for gearbox, D - 25.09.2017>> left front,	-	1	Enquire
13	N91049102	bolt, with polygon socket hd.	N91049102 bolt, with polygon socket hd. M8X32,	-	6	Enquire
14	4M0399308C	heatshield	4M0399308C heatshield side right,	-	1	Enquire
15	4M0399307F	heatshield, D - 17.10.2016>>	4M0399307F heatshield, D - 17.10.2016>> side left,	-	1	Enquire
16	N90724603	bolt, hex. hd. (combi.)	N90724603 bolt, hex. hd. (combi.) M6X22,	-	6	Enquire
17	4M0399202G	hydro-mounting	4M0399202G hydro-mounting right front,	-	1	Enquire
18	4M0399201G	hydro-mounting	4M0399201G hydro-mounting left front,	-	1	Enquire
19	N10344302	bolt, hex. hd. (combi.)	N10344302 bolt, hex. hd. (combi.) M8X60,	-	6	Enquire
20	N91153001	bolt, with polygon socket hd., (combi.)	N91153001 bolt, with polygon socket hd., (combi.) M10X35,	-	2	Enquire
21	N91252601	hexagon screw with washer	N91252601 hexagon screw with washer M10X55,	-	2	Enquire
