refrigerant circuit, for vehicles with 2nd evaporator of Bentley Bentley Bentayga (2015-2020)

View All

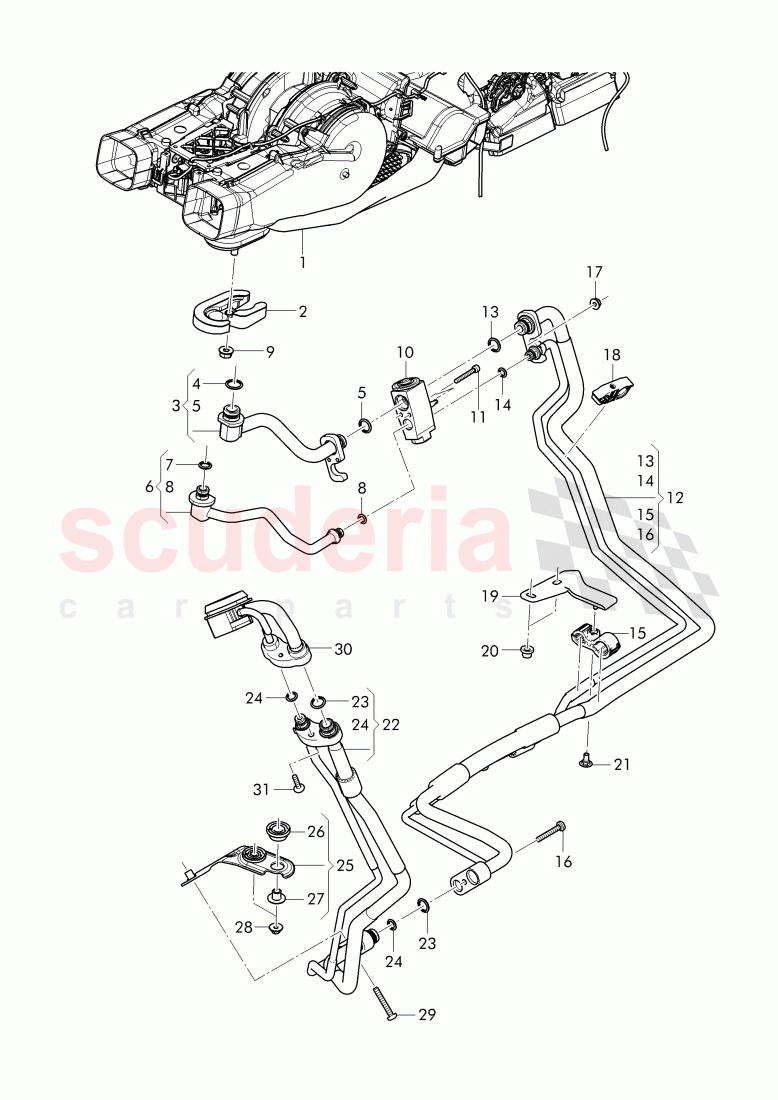

Bentley Bentayga (2015-2020) - refrigerant circuit, for vehicles with 2nd evaporator

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0820251B	retainer plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0816727D	refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0816725D	refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10609201	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0820181B	expansion valve, for refrigerant:	Enquire
	4M0816181A	Expansion valve for refrigerant:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10723801	Socket head bolt with inner hex round head	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0816885F	refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4D0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0260759B	bracket for refrigerant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10582103	oval head countersunk bolt with multi-point socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0260759E	bracket for refrigerant pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0820769E	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90495301	Hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	8D0201441C	speed nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0816886A	refrigerant line	Enquire

Photo	Part No	Description	Price (each)	Stock
	4E0260749B	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0260749C	seal ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	4M0820769H	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	4F0129669F	grommet	Enquire

Photo	Part No	Description	Price (each)	Stock
	8Z0129734	bushing	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90887703	Hexagon flange nut, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10582103	oval head countersunk bolt with multi-point socket head	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10632102	Oval hexagon socket head bolt	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	4M0820251B	retainer plate	4M0820251B retainer plate	-	1	Enquire
3	4M0816727D	refrigerant line	4M0816727D refrigerant line	-	1	Enquire
4	4E0260749C	seal ring	4E0260749C seal ring 16,25X2,5,	-	1	Enquire
5	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5,	-	1	Enquire
6	4M0816725D	refrigerant line	4M0816725D refrigerant line	-	1	Enquire
7	4E0260749B	seal ring	4E0260749B seal ring 11X2,5,	-	1	Enquire
8	4D0260749B	seal ring	4D0260749B seal ring 7,6X2,5,	-	1	Enquire
9	N10609201	Hexagon collar nut	N10609201 Hexagon collar nut M8,	-	1	Enquire
10	4M0820181B	expansion valve, for refrigerant:	4M0820181B expansion valve, for refrigerant: R134A, PR-KK1	-	1	Enquire
10	4M0816181A	Expansion valve for refrigerant:	4M0816181A Expansion valve for refrigerant: R1234YF, PR-KK3	-	1	Enquire
11	N10723801	Socket head bolt with inner hex round head	N10723801 Socket head bolt with inner hex round head M5X40,	-	2	Enquire
12	4M0816885F	refrigerant line	4M0816885F refrigerant line	-	1	Enquire
13	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5,	-	1	Enquire
14	4D0260749B	seal ring	4D0260749B seal ring 7,6X2,5,	-	1	Enquire
15	4H0260759B	bracket for refrigerant pipe	4H0260759B bracket for refrigerant pipe	-	1	Enquire
16	N10582103	oval head countersunk bolt with multi-point socket head	N10582103 oval head countersunk bolt with multi-point socket head M6X40,	-	1	Enquire
17	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	1	Enquire
18	4H0260759E	bracket for refrigerant pipe	4H0260759E bracket for refrigerant pipe	-	1	Enquire
19	4M0820769E	bracket	4M0820769E bracket	-	1	Enquire
20	N90495301	Hexagon nut	N90495301 Hexagon nut 4.1,	-	2	Enquire
21	8D0201441C	speed nut	8D0201441C speed nut	-	1	Enquire
22	4M0816886A	refrigerant line	4M0816886A refrigerant line	-	1	Enquire
23	4E0260749B	seal ring	4E0260749B seal ring 13,7X2,5,	-	2	Enquire
24	3D0260749C	seal ring	3D0260749C seal ring 9,5X2,5,	-	2	Enquire
25	4M0820769H	bracket	4M0820769H bracket	-	1	Enquire
26	4F0129669F	grommet	4F0129669F grommet	-	2	Enquire
27	8Z0129734	bushing	8Z0129734 bushing	-	2	Enquire
28	N90887703	Hexagon flange nut, self-locking	N90887703 Hexagon flange nut, self-locking M6,	-	2	Enquire
29	N10582103	oval head countersunk bolt with multi-point socket head	N10582103 oval head countersunk bolt with multi-point socket head M6X40,	-	1	Enquire
31	N10632102	Oval hexagon socket head bolt	N10632102 Oval hexagon socket head bolt M6X25,	-	1	Enquire
