Find Your Part

exhaust manifold of Bentley Bentley Bentayga (2015-2020)

View All

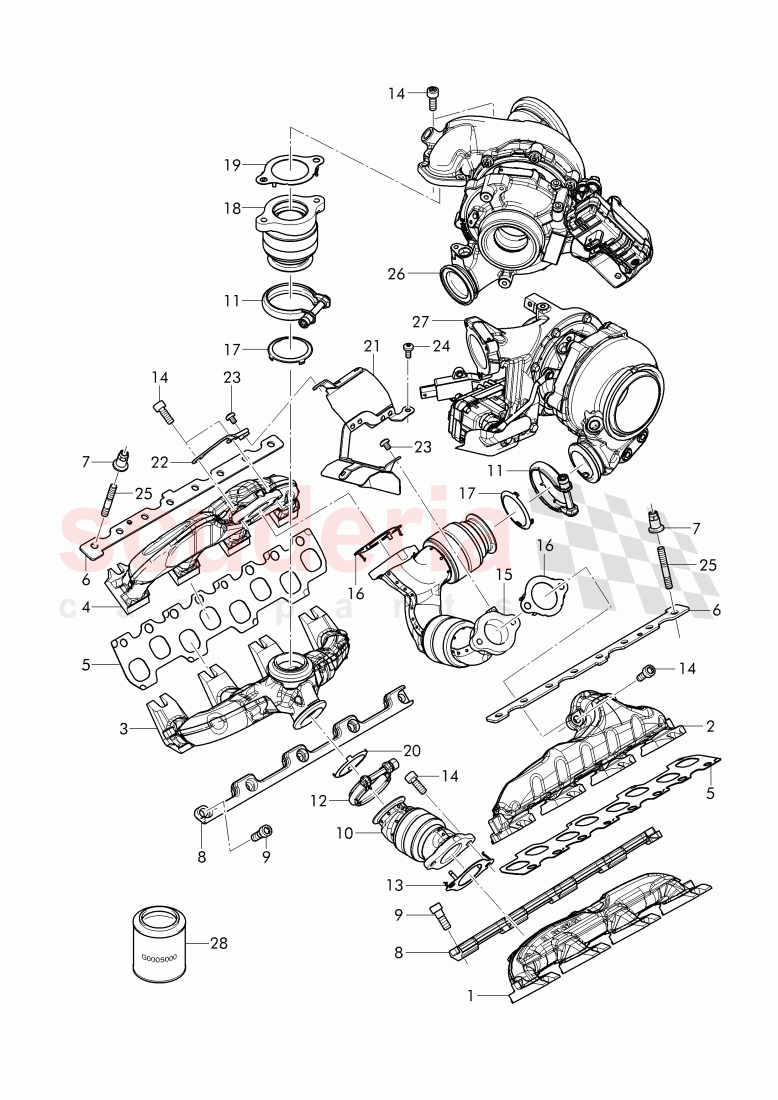

Bentley Bentayga (2015-2020) - exhaust manifold

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	57253033CB	exhaust manifold	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253171D	exhaust manifold	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253034CB	exhaust manifold	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253172D	exhaust manifold	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253039AC	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253099L	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007505	clamping nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253709C	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT007499	Hex socket head locating bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253357J	exhaust pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	59253139D	retaining clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253139B	retaining clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253539C	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91046101	socket hd. screw with polygon, socket	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253358J	exhaust pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253117C	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	59253232C	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253487K	exhaust pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253115H	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253232A	seal strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253220E	Heat shield plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	57253198B	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10680303	Hexagon socket flat, head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N0444415	stud	Enquire

Photo	Part No	Description	Price (each)	Stock
	G052112A3	hot-bolt-paste	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	57253033CB	exhaust manifold	57253033CB exhaust manifold cylinders 5-8, lower,	-	1	Enquire
2	57253171D	exhaust manifold	57253171D exhaust manifold cylinders 5-8, upper,	-	1	Enquire
3	57253034CB	exhaust manifold	57253034CB exhaust manifold cylinders 1-4, lower,	-	1	Enquire
4	57253172D	exhaust manifold	57253172D exhaust manifold cylinders 1-4, upper,	-	1	Enquire
5	57253039AC	gasket	57253039AC gasket left a. right,	-	2	Enquire
6	57253099L	bracket	57253099L bracket left a. right,	-	2	Enquire
7	WHT007505	clamping nut	WHT007505 clamping nut M8X24,	-	16	Enquire
8	57253709C	bracket	57253709C bracket left a. right,	-	2	Enquire
9	WHT007499	Hex socket head locating bolt	WHT007499 Hex socket head locating bolt M9X10X26,	-	10	Enquire
10	57253357J	exhaust pipe	57253357J exhaust pipe Active,	-	1	Enquire
11	59253139D	retaining clip	59253139D retaining clip	-	2	Enquire
12	57253139B	retaining clip	57253139B retaining clip	-	1	Enquire
13	57253539C	gasket	57253539C gasket	-	1	Enquire
14	N91046101	socket hd. screw with polygon, socket	N91046101 socket hd. screw with polygon, socket M8X22,	-	8	Enquire
15	57253358J	exhaust pipe	57253358J exhaust pipe Passive,	-	1	Enquire
16	57253117C	gasket	57253117C gasket	-	2	Enquire
17	59253232C	gasket	59253232C gasket	-	2	Enquire
18	57253487K	exhaust pipe	57253487K exhaust pipe Active,	-	1	Enquire
19	57253115H	gasket	57253115H gasket	-	1	Enquire
20	57253232A	seal strip	57253232A seal strip	-	1	Enquire
21	57253220E	Heat shield plate	57253220E Heat shield plate	-	1	Enquire
22	57253198B	bracket	57253198B bracket	-	1	Enquire
23	N10680303	Hexagon socket flat, head bolt	N10680303 Hexagon socket flat, head bolt M6X8,	-	2	Enquire
24	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X14,	-	1	Enquire
25	N0444415	stud	N0444415 stud M8X40,	-	16	Enquire
28	G052112A3	hot-bolt-paste	G052112A3 hot-bolt-paste 170G,	-	1	Enquire
