Evaporator and Heater of Aston Martin Aston Martin Virage

View All

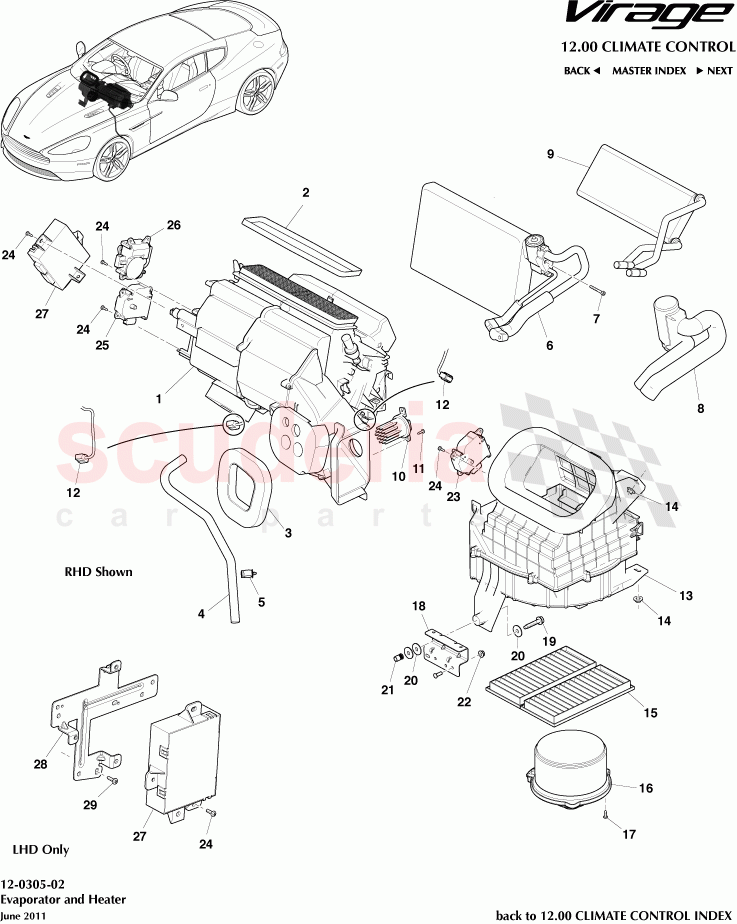

Aston Martin Virage - Evaporator and Heater

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order
	4G4318N407BC	Auto Heater Unit, Including ECU, RHD	Enquire	To Order
	4G4318N407AD	Auto Heater Unit, Including ECU, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319N574AA	Seal, Vent Air Duct	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319D692AA	Seal, A/C Evaporator Tub Outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319A699BB	DRAIN TUBE CONDENSATION - RHD	Enquire	To Order
	4G4319A699AB	DRAIN TUBE CONDENSATION - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701172	Clip, 16 x 2.8 - 3.3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319F616AA	A/C Evaporator & Tube Assy	Enquire	To Order
	4G4319850AA	Evaporator A/C, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43ALR8679AA	Screw, M5 x 40, Hex Socket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318D673AA	Sealing, Heater Core Tube to Heater Case	Enquire	To Order
	4G4318693AA	Sealing, Heater Core Tube to Heater Case	Enquire	To Order
	4G4318D669AA	Sealing, Heater Core, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318A271BA	Core & Tube Assy Heater, RHD	Enquire	To Order
	4G4318D671AA	Core & Tube Assy, heater, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319F615AA	Transistor Power A/C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N104084AA	Screw, M5 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319F598AA	Sensor A/C Evaporator Temperature	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319924BB	Blower Assy, RHD	Enquire	To Order
	4G4319925AB	Blower Assy, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313ZE1AAPK	Pollen and Odour Filter (Pack of 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319F612AA	Motor and Fan Assy A/C, RHD	Enquire	To Order
	4G4319F613AA	Motor and Fan Assy A/C, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43N104301AA	SCREW M5 x 16 HX SPCL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318535BF	Bracket, Heater Blower Mounting, RHD	Enquire	To Order
	4G4318535AE	Bracket, Heater Blower Mounting, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703745	SCREW-M8x35 FLG 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703137	Washer, M8, HVAC to bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3358762AA	RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318A250AA	Servo Assy, A/C Heater Fresh/Recirculate Air RHD	Enquire	To Order
	4G4318A251AA	Servo Assy, A/C Heater Fresh/Recirculate Air LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692785	SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318D674AA	Servo Assy, A/C Heater Air Mix, RHD	Enquire	To Order
	4G4318D675AA	Servo Assy, A/C Heater Air Mix, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318E246AA	Servo Assy, A/C Heater Mode, RHD	Enquire	To Order
	4G4318E247AA	Servo Assy, A/C Heater Mode, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314F164AA	Control Assy, A/C & heater temp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43121205AA	Bracket, ECU mounting, LHD Only	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692785	SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
1	4G4318N407BC	Auto Heater Unit, Including ECU, RHD	4G4318N407BC Auto Heater Unit, Including ECU, RHD	-	1	Enquire
1	4G4318N407AD	Auto Heater Unit, Including ECU, LHD	4G4318N407AD Auto Heater Unit, Including ECU, LHD	-	1	Enquire
2	4G4319N574AA	Seal, Vent Air Duct	4G4319N574AA Seal, Vent Air Duct	-	1	Enquire
3	4G4319D692AA	Seal, A/C Evaporator Tub Outer	4G4319D692AA Seal, A/C Evaporator Tub Outer	-	1	Enquire
4	4G4319A699BB	DRAIN TUBE CONDENSATION - RHD	4G4319A699BB DRAIN TUBE CONDENSATION - RHD	-	1	Enquire
4	4G4319A699AB	DRAIN TUBE CONDENSATION - LHD	4G4319A699AB DRAIN TUBE CONDENSATION - LHD	-	1	Enquire
5	701172	Clip, 16 x 2.8 - 3.3	701172 Clip, 16 x 2.8 - 3.3	-	1	Enquire
6	4G4319F616AA	A/C Evaporator & Tube Assy	4G4319F616AA A/C Evaporator & Tube Assy	-	1	Enquire
6	4G4319850AA	Evaporator A/C, RHD	4G4319850AA Evaporator A/C, RHD	-	1	Enquire
7	4G43ALR8679AA	Screw, M5 x 40, Hex Socket	4G43ALR8679AA Screw, M5 x 40, Hex Socket	-	2	Enquire
8	4G4318D673AA	Sealing, Heater Core Tube to Heater Case	4G4318D673AA Sealing, Heater Core Tube to Heater Case	-	1	Enquire
8	4G4318693AA	Sealing, Heater Core Tube to Heater Case	4G4318693AA Sealing, Heater Core Tube to Heater Case	-	1	Enquire
8	4G4318D669AA	Sealing, Heater Core, LHD	4G4318D669AA Sealing, Heater Core, LHD	-	1	Enquire
9	4G4318A271BA	Core & Tube Assy Heater, RHD	4G4318A271BA Core & Tube Assy Heater, RHD	-	1	Enquire
9	4G4318D671AA	Core & Tube Assy, heater, LHD	4G4318D671AA Core & Tube Assy, heater, LHD	-	1	Enquire
10	4G4319F615AA	Transistor Power A/C	4G4319F615AA Transistor Power A/C	-	1	Enquire
11	4G43N104084AA	Screw, M5 x 16	4G43N104084AA Screw, M5 x 16	-	2	Enquire
12	4G4319F598AA	Sensor A/C Evaporator Temperature	4G4319F598AA Sensor A/C Evaporator Temperature	-	2	Enquire
13	4G4319924BB	Blower Assy, RHD	4G4319924BB Blower Assy, RHD	-	1	Enquire
13	4G4319925AB	Blower Assy, LHD	4G4319925AB Blower Assy, LHD	-	1	Enquire
14	703612	Nut & Washer, M6, HVAC to XCB	703612 Nut & Washer, M6, HVAC to XCB	-	5	Enquire
15	4G4313ZE1AAPK	Pollen and Odour Filter (Pack of 2)	4G4313ZE1AAPK Pollen and Odour Filter (Pack of 2)	-	1	Enquire
16	4G4319F612AA	Motor and Fan Assy A/C, RHD	4G4319F612AA Motor and Fan Assy A/C, RHD	-	1	Enquire
16	4G4319F613AA	Motor and Fan Assy A/C, LHD	4G4319F613AA Motor and Fan Assy A/C, LHD	-	1	Enquire
17	4G43N104301AA	SCREW M5 x 16 HX SPCL	4G43N104301AA SCREW M5 x 16 HX SPCL	-	3	Enquire
18	4G4318535BF	Bracket, Heater Blower Mounting, RHD	4G4318535BF Bracket, Heater Blower Mounting, RHD	-	1	Enquire
18	4G4318535AE	Bracket, Heater Blower Mounting, LHD	4G4318535AE Bracket, Heater Blower Mounting, LHD	-	1	Enquire
19	703745	SCREW-M8x35 FLG 8.8	703745 SCREW-M8x35 FLG 8.8	-	1	Enquire
20	703137	Washer, M8, HVAC to bracket	703137 Washer, M8, HVAC to bracket	-	2	Enquire
21	6G3358762AA	RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N	6G3358762AA RIVNUT M8 LOW PROFILE 0.8 3MM ZN/N	-	1	Enquire
22	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
23	4G4318A250AA	Servo Assy, A/C Heater Fresh/Recirculate Air RHD	4G4318A250AA Servo Assy, A/C Heater Fresh/Recirculate Air RHD	-	1	Enquire
23	4G4318A251AA	Servo Assy, A/C Heater Fresh/Recirculate Air LHD	4G4318A251AA Servo Assy, A/C Heater Fresh/Recirculate Air LHD	-	1	Enquire
24	692785	SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	692785 SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	-	12	Enquire
25	4G4318D674AA	Servo Assy, A/C Heater Air Mix, RHD	4G4318D674AA Servo Assy, A/C Heater Air Mix, RHD	-	1	Enquire
25	4G4318D675AA	Servo Assy, A/C Heater Air Mix, LHD	4G4318D675AA Servo Assy, A/C Heater Air Mix, LHD	-	1	Enquire
26	4G4318E246AA	Servo Assy, A/C Heater Mode, RHD	4G4318E246AA Servo Assy, A/C Heater Mode, RHD	-	1	Enquire
26	4G4318E247AA	Servo Assy, A/C Heater Mode, LHD	4G4318E247AA Servo Assy, A/C Heater Mode, LHD	-	1	Enquire
27	4G4314F164AA	Control Assy, A/C & heater temp	4G4314F164AA Control Assy, A/C & heater temp	-	1	Enquire
28	4G43121205AA	Bracket, ECU mounting, LHD Only	4G43121205AA Bracket, ECU mounting, LHD Only	-	1	Enquire
29	692785	SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	692785 SCREW M4 x 16 POSI PAN HEAD ZINC PLATED	-	3	Enquire
