Air Con Lines Fittings

Find Your Part

Aston Martin Virage - Air Con Lines Fittings

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AG4319972AA Tube - Air Conditioning Compressor to Condenser $794.51 To Order
Photo Part No Description Price (each) Stock
703201 SCREW M8 x 30 HEX FLANGE CHROME FREE $0.71 To Order
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.45 To Order
Photo Part No Description Price (each) Stock
AD4319D719AA TUBE ASSY - COND TO R/DRIER $177.63 To Order
Photo Part No Description Price (each) Stock
4G4319E891AD Air Conditioning Drier $299.56 To Order
Photo Part No Description Price (each) Stock
4G436147XAD BRACKET - AIRCON / ELECTRICAL $42.79 To Order
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.53 To Order
Photo Part No Description Price (each) Stock
AG4319A705AA Tube Assy, Evaporator Outlet $344.67 To Order
Photo Part No Description Price (each) Stock
AG4319A705CA Tube Assy, A/C Evaporator Outlet, Upper $362.69 To Order
Photo Part No Description Price (each) Stock
AG4319A705BA Tube Assy, A/C Evaporator Outlet, Upper $201.47 To Order
Photo Part No Description Price (each) Stock
AG4319835CA Tube Assy, Receiver Drier to Evaporator $196.97 To Order
Photo Part No Description Price (each) Stock
AG4319835BA Tube Assy, Receiver Drier to Evaporator $785.27 To Order
Photo Part No Description Price (each) Stock
4G434073AAA CLAMP - LIQ $5.42 To Order
Photo Part No Description Price (each) Stock
701182 Clip, Pipe Swivel $2.10 To Order
Photo Part No Description Price (each) Stock
701180 Clip, 14 x 4, Push In $1.44 To Order
Photo Part No Description Price (each) Stock
699634 P-Clip,13 x 15 x M6 $2.23 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.21 To Order
Photo Part No Description Price (each) Stock
1R128910192 Switch, A/C High Pressure $587.07 To Order
Photo Part No Description Price (each) Stock
AG438911295 SW ASY-A/C PRES CTOF $628.00 To Order
Photo Part No Description Price (each) Stock
703025 Screw, M6 x 25, Hex Flange Head $0.21 To Order
View All

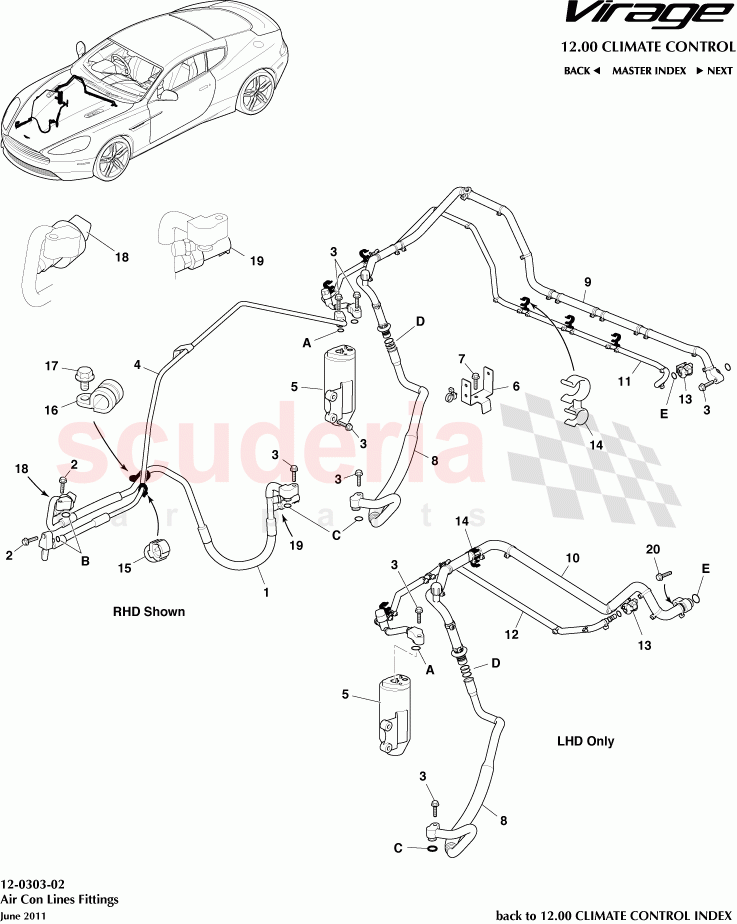

Air Con Lines Fittings of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G438910908PK
O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) 		$5.95 1
- 4G438910910PK
O Rings-DB9 & V8 Condenser (Pack of 2) 		$6.06 1
- 4G438910909PK
O-Ring Compressor (Pack of 2) 		$6.06 1
- 4G438910911PK
O RINGS-DB9 EVAPORATOR-PACK OF 3 		$14.96 1
- 6G438910446PK
O RING-V8 EVAPORATOR PACK OF 2 		$9.73 1
1 AG4319972AA
Tube - Air Conditioning Compressor to Condenser 		$794.51 1
2 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE 		$0.71 2
3 703199
Bolt M6x30 HEX FLG Chrome Free 		$0.45 4
4 AD4319D719AA
TUBE ASSY - COND TO R/DRIER 		$177.63 1
5 4G4319E891AD
Air Conditioning Drier 		$299.56 1
6 4G436147XAD
BRACKET - AIRCON / ELECTRICAL 		$42.79 1
7 703151
Screw M6x16 Washer Hex HD Chrome Free 		$0.53 1
8 AG4319A705AA
Tube Assy, Evaporator Outlet 		$344.67 1
9 AG4319A705CA
Tube Assy, A/C Evaporator Outlet, Upper 		$362.69 1
10 AG4319A705BA
Tube Assy, A/C Evaporator Outlet, Upper 		$201.47 1
11 AG4319835CA
Tube Assy, Receiver Drier to Evaporator 		$196.97 1
12 AG4319835BA
Tube Assy, Receiver Drier to Evaporator 		$785.27 1
13 4G434073AAA
CLAMP - LIQ 		$5.42 1
14 701182
Clip, Pipe Swivel 		$2.10 5
15 701180
Clip, 14 x 4, Push In 		$1.44 -
16 699634
P-Clip,13 x 15 x M6 		$2.23 1
17 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		$0.21 1
18 1R128910192
Switch, A/C High Pressure 		$587.07 1
19 AG438911295
SW ASY-A/C PRES CTOF 		$628.00 1
20 703025
Screw, M6 x 25, Hex Flange Head 		$0.21 1
