Filler Cap and Pipe of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

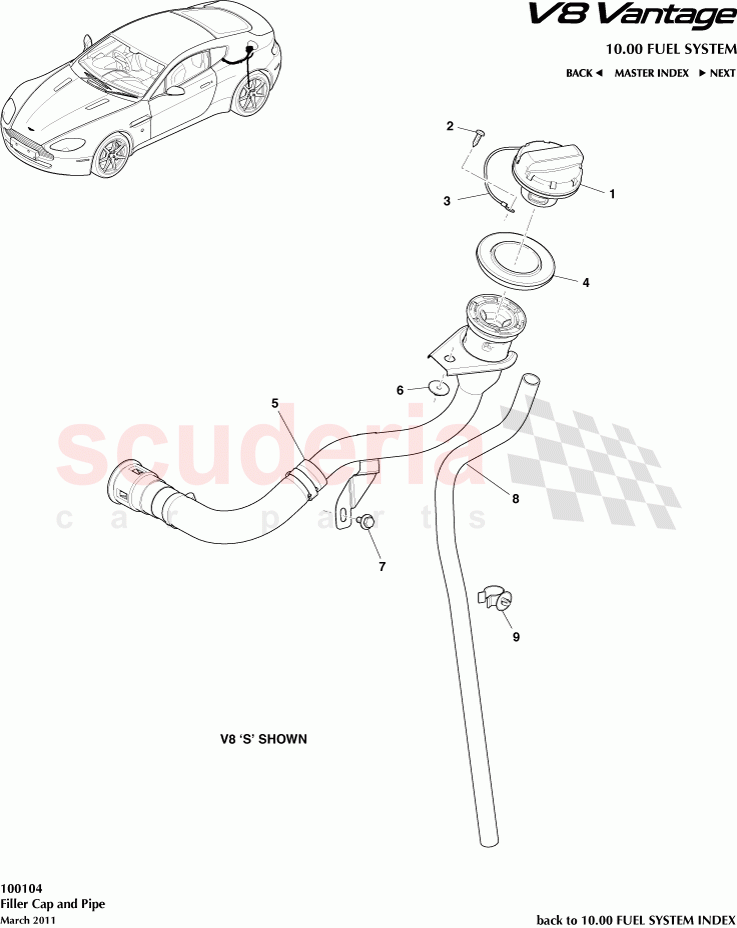

Aston Martin V8 Vantage (upto 2016) - Filler Cap and Pipe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	GG339030AA	CAP FUEL TANK	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702288	Screw, 4.2 x 16 Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C027AA	TETHER FUEL TANK FILLER CAP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438703AA	FUEL FILLER PIPE GAITER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD239032AA	PIPE & HOSE ASSY FUEL TANK FILL COUPE	Enquire	To Order
	6G339032BE	PIPE & HOSE ASSY FUEL TANK FILL - VOLANTE	Enquire	To Order
	6G339032AC	PIPE & HOSE ASSY FUEL TANK FILL - COUPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704327	Nut and Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AG339C071AA	PIPE FU FILL O/FLOW	Enquire	To Order
	4G439C071AA	PIPE FUEL FILL OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12343982AA	FILTER DRAIN TUBE FUEL FILLER BOWL	Enquire	To Order
	6G33D108648AA	EDGE CLIP	Enquire	To Order
	4G439A317AA	Clip, fuel fill overflow pipe	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	GG339030AA	CAP FUEL TANK IN STOCK	GG339030AA CAP FUEL TANK IN STOCK	-	1	Enquire
2	702288	Screw, 4.2 x 16 Self Tapping	702288 Screw, 4.2 x 16 Self Tapping tether to body	-	1	Enquire
3	4G439C027AA	TETHER FUEL TANK FILLER CAP IN STOCK	4G439C027AA TETHER FUEL TANK FILLER CAP IN STOCK	-	1	Enquire
4	4G438703AA	FUEL FILLER PIPE GAITER IN STOCK	4G438703AA FUEL FILLER PIPE GAITER IN STOCK	-	1	Enquire
5	AD239032AA	PIPE & HOSE ASSY FUEL TANK FILL COUPE	AD239032AA PIPE & HOSE ASSY FUEL TANK FILL COUPE V8S/ 12.25MY	-	1	Enquire
5	6G339032BE	PIPE & HOSE ASSY FUEL TANK FILL - VOLANTE	6G339032BE PIPE & HOSE ASSY FUEL TANK FILL - VOLANTE	-	1	Enquire
5	6G339032AC	PIPE & HOSE ASSY FUEL TANK FILL - COUPE	6G339032AC PIPE & HOSE ASSY FUEL TANK FILL - COUPE	-	1	Enquire
6	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	1	Enquire
7	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free IN STOCK	-	1	Enquire
8	AG339C071AA	PIPE FU FILL O/FLOW	AG339C071AA PIPE FU FILL O/FLOW	-	1	Enquire
8	4G439C071AA	PIPE FUEL FILL OVERFLOW	4G439C071AA PIPE FUEL FILL OVERFLOW	-	1	Enquire
9	1R12343982AA	FILTER DRAIN TUBE FUEL FILLER BOWL	1R12343982AA FILTER DRAIN TUBE FUEL FILLER BOWL	-	1	Enquire
9	6G33D108648AA	EDGE CLIP	6G33D108648AA EDGE CLIP	-	1	Enquire
9	4G439A317AA	Clip, fuel fill overflow pipe	4G439A317AA Clip, fuel fill overflow pipe	-	2	Enquire
9	4R338W287BA	CLIP - HOSE	4R338W287BA CLIP - HOSE	-	2	Enquire
