Exhaust of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

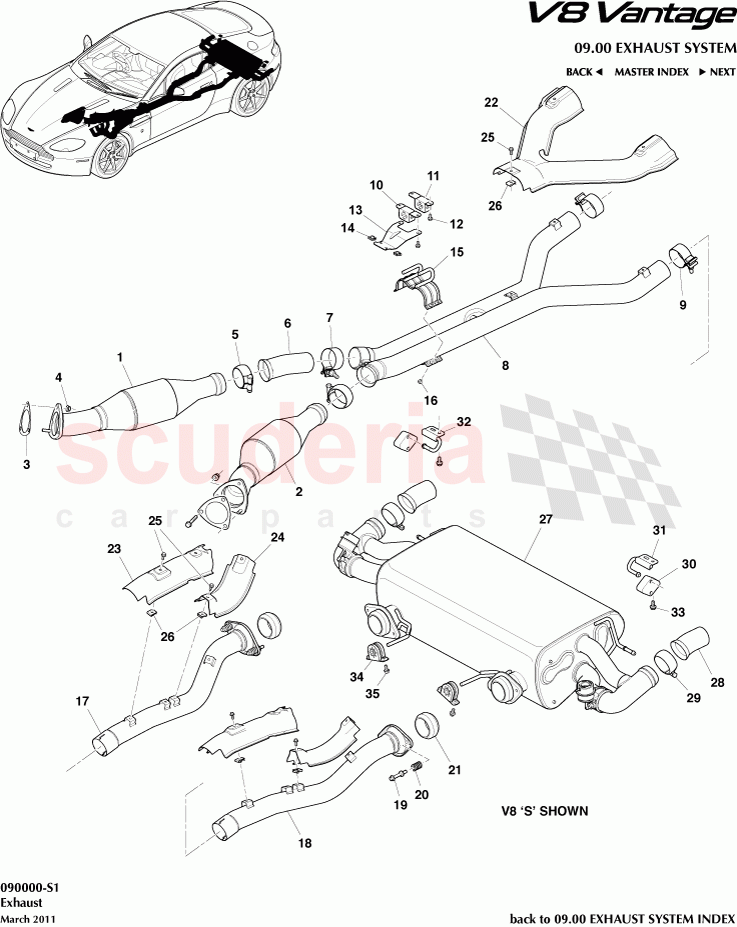

Aston Martin V8 Vantage (upto 2016) - Exhaust

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG335E211AB	RH CONVERTER	Enquire	To Order
	6G335E211DC	EU4 U/FLOOR CAT-RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG335E213AB	LH CONVERTER	Enquire	To Order
	6G335E213DC	EU4 U/FLOOR CAT-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435E281AA	EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG435220FA	Pipe, Exhaust Intermediate Stub	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220AE	INT PIPE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG335220AA	PIPE ASSY - CTR	Enquire	To Order
	6G335220DD	PIPE ASSY - CTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220AA	Clamp, exhaust pipe rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962FA	Bracket, Exhaust Isolator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510025	Rubber, Exhaust Mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962ED	Bracket, Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699736	Clip, Exhaust Heatshields	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335G298BC	Brace assy, Exhaust pipe centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703266	Screw M6 x 10 Pan Head Torx	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335220AD	Pipe, Exhaust Intermediate, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335220BD	Pipe, Exhaust Intermediate, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4370816AA	Bolt, M8 Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435F264AA	Spring, Exhaust Pipe Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317213BA	Sealing Ring Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG335G221AB	Heatshield assy, Exhaust rear	Enquire	To Order
	6G335G221AB	Shield Assy, Exhaust System Rear, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335G221BE	Heatshield Assy, Exhaust, Intermediate Pipe, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335G221CB	Heatshield Assy, Exhaust, Intermediate Pipe, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699736	Clip, Exhaust Heatshields	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD235230AE	MUFFLER ASSY	Enquire	To Order
	BG335230AC	MUFFLER ASSY	Enquire	To Order
	6G335230HK	MUFFLER ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335220FB	Pipe, Exhaust Outlet Stub	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510026	Isolator, Exhaust Hanger	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N201HC	Bracket, Muffler Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N201JC	Bracket, Muffler Mounting, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430910036	FRONT MUFFLER RUBBER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703730	Screw, M8 x 16, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BG335E211AB	RH CONVERTER	BG335E211AB RH CONVERTER V8S	-	1	Enquire
1	6G335E211DC	EU4 U/FLOOR CAT-RH	6G335E211DC EU4 U/FLOOR CAT-RH	-	1	Enquire
2	BG335E213AB	LH CONVERTER	BG335E213AB LH CONVERTER V8S	-	1	Enquire
2	6G335E213DC	EU4 U/FLOOR CAT-LH	6G335E213DC EU4 U/FLOOR CAT-LH	-	1	Enquire
3	4G435E281AA	EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	4G435E281AA EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	-	1	Enquire
4	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	4G4302738AAPK Nut, M8 Hex Flange Head, Stainless (Pack of 10)	-	6	Enquire
5	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	-	2	Enquire
6	CG435220FA	Pipe, Exhaust Intermediate Stub	CG435220FA Pipe, Exhaust Intermediate Stub	-	1	Enquire
7	4G435220AE	INT PIPE - EXHAUST	4G435220AE INT PIPE - EXHAUST Exhaust pipe centre	-	1	Enquire
8	BG335220AA	PIPE ASSY - CTR	BG335220AA PIPE ASSY - CTR V8S/ 12.25MY, incl Heatshield	-	1	Enquire
8	6G335220DD	PIPE ASSY - CTR	6G335220DD PIPE ASSY - CTR incl Heatshield	-	1	Enquire
9	4G435220AA	Clamp, exhaust pipe rear	4G435220AA Clamp, exhaust pipe rear Exhaust pipe, rear	-	2	Enquire
10	4G433962FA	Bracket, Exhaust Isolator	4G433962FA Bracket, Exhaust Isolator	-	2	Enquire
11	4G433510025	Rubber, Exhaust Mount	4G433510025 Rubber, Exhaust Mount	-	2	Enquire
12	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	-	16	Enquire
13	4G433962ED	Bracket, Support	4G433962ED Bracket, Support	-	1	Enquire
14	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields	-	2	Enquire
15	6G335G298BC	Brace assy, Exhaust pipe centre	6G335G298BC Brace assy, Exhaust pipe centre	-	1	Enquire
16	703266	Screw M6 x 10 Pan Head Torx	703266 Screw M6 x 10 Pan Head Torx	-	4	Enquire
17	6G335220AD	Pipe, Exhaust Intermediate, RH	6G335220AD Pipe, Exhaust Intermediate, RH incl Heatshields	-	1	Enquire
18	6G335220BD	Pipe, Exhaust Intermediate, LH	6G335220BD Pipe, Exhaust Intermediate, LH incl Heatshields	-	1	Enquire
19	4G4370816AA	Bolt, M8 Flange Head	4G4370816AA Bolt, M8 Flange Head	-	4	Enquire
20	4G435F264AA	Spring, Exhaust Pipe Flange	4G435F264AA Spring, Exhaust Pipe Flange	-	4	Enquire
21	4G4317213BA	Sealing Ring Exhaust	4G4317213BA Sealing Ring Exhaust	-	2	Enquire
22	BG335G221AB	Heatshield assy, Exhaust rear	BG335G221AB Heatshield assy, Exhaust rear 11MY	-	1	Enquire
22	6G335G221AB	Shield Assy, Exhaust System Rear, Front	6G335G221AB Shield Assy, Exhaust System Rear, Front	-	1	Enquire
23	6G335G221BE	Heatshield Assy, Exhaust, Intermediate Pipe, Front	6G335G221BE Heatshield Assy, Exhaust, Intermediate Pipe, Front	-	2	Enquire
24	6G335G221CB	Heatshield Assy, Exhaust, Intermediate Pipe, Rear	6G335G221CB Heatshield Assy, Exhaust, Intermediate Pipe, Rear	-	2	Enquire
25	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	-	4	Enquire
26	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields	-	4	Enquire
27	AD235230AE	MUFFLER ASSY	AD235230AE MUFFLER ASSY N420 and option from 11MY	-	1	Enquire
27	BG335230AC	MUFFLER ASSY	BG335230AC MUFFLER ASSY V8S	-	1	Enquire
27	6G335230HK	MUFFLER ASSY	6G335230HK MUFFLER ASSY	-	1	Enquire
28	6G335220FB	Pipe, Exhaust Outlet Stub	6G335220FB Pipe, Exhaust Outlet Stub	-	2	Enquire
29	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	-	2	Enquire
30	4G433510026	Isolator, Exhaust Hanger	4G433510026 Isolator, Exhaust Hanger	-	6	Enquire
31	6G335N201HC	Bracket, Muffler Mounting, LH	6G335N201HC Bracket, Muffler Mounting, LH	-	1	Enquire
32	6G335N201JC	Bracket, Muffler Mounting, RH	6G335N201JC Bracket, Muffler Mounting, RH	-	1	Enquire
33	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	8	Enquire
34	6G430910036	FRONT MUFFLER RUBBER SUPPORT	6G430910036 FRONT MUFFLER RUBBER SUPPORT	-	2	Enquire
35	703730	Screw, M8 x 16, Hex Flange Head	703730 Screw, M8 x 16, Hex Flange Head	-	4	Enquire
