Fuel Tank of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

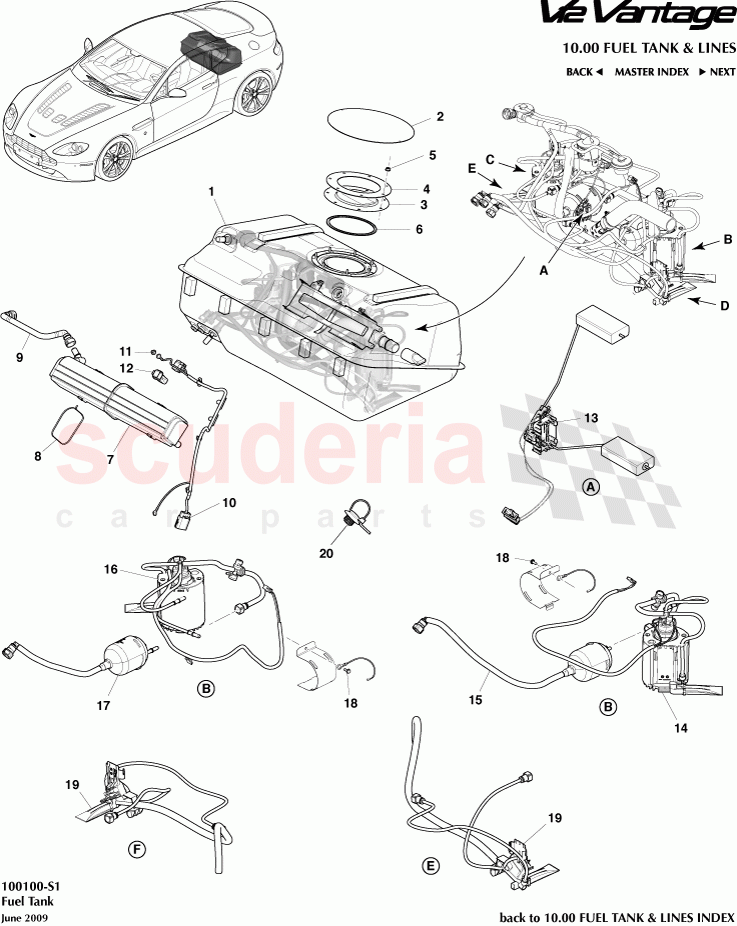

Aston Martin V12 Vantage (upto 2016) - Fuel Tank

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD239C133AF	TNK & CNSTR ASY FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439074EA	PLATE ASY FU TANK CV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C055CA	COVER - FUEL TANK SERVICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4332133AA	CLAMP PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439073AA	Gasket, Fuel Tank Service Cover	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G439D653AA	CARBON CANNISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C133aPIA03	Tie-wrap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G334090AA	HOSE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2314007AC	Harness, fuel tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710041	ELEC CONNECTOR-6 WAY SUMITOMO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439E275AA	Sensor - Fuel Tank Sender	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439B260AC	LH FUEL PUMP & RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439155BA	Filter assy, fuel, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339B260CC	Fuel Pump and Reservoir RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339155AB	Fuel Filter RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702082	Bolt, Self Locking, M5 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339B260BD	Module Assy, Jet Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439012APIA01	TIE WRAP - FIR TREE Aprx 18cm/180mm (L)	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD239C133AF	TNK & CNSTR ASY FUEL	AD239C133AF TNK & CNSTR ASY FUEL	-	1	Enquire
2	4G439074EA	PLATE ASY FU TANK CV	4G439074EA PLATE ASY FU TANK CV	-	1	Enquire
3	4G439C055CA	COVER - FUEL TANK SERVICE	4G439C055CA COVER - FUEL TANK SERVICE	-	1	Enquire
4	4G4332133AA	CLAMP PLATE	4G4332133AA CLAMP PLATE	-	1	Enquire
5	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	8	Enquire
6	4G439073AA	Gasket, Fuel Tank Service Cover ARRIVING SOON	4G439073AA Gasket, Fuel Tank Service Cover Replace each time Cover Plate is removed ARRIVING SOON	-	1	Enquire
7	4G439D653AA	CARBON CANNISTER	4G439D653AA CARBON CANNISTER	-	1	Enquire
8	4G439C133aPIA03	Tie-wrap	4G439C133aPIA03 Tie-wrap Cannister Assy	-	1	Enquire
9	6G334090AA	HOSE ASSY	6G334090AA HOSE ASSY	-	1	Enquire
10	AD2314007AC	Harness, fuel tank	AD2314007AC Harness, fuel tank	-	1	Enquire
11	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	1	Enquire
12	4G433710041	ELEC CONNECTOR-6 WAY SUMITOMO	4G433710041 ELEC CONNECTOR-6 WAY SUMITOMO without ??ring	-	1	Enquire
13	4G439E275AA	Sensor - Fuel Tank Sender	4G439E275AA Sensor - Fuel Tank Sender	-	1	Enquire
14	8G439B260AC	LH FUEL PUMP & RESERVOIR	8G439B260AC LH FUEL PUMP & RESERVOIR	-	1	Enquire
15	8G439155BA	Filter assy, fuel, LH	8G439155BA Filter assy, fuel, LH	-	1	Enquire
16	6G339B260CC	Fuel Pump and Reservoir RH	6G339B260CC Fuel Pump and Reservoir RH	-	1	Enquire
17	6G339155AB	Fuel Filter RH	6G339155AB Fuel Filter RH	-	1	Enquire
18	702082	Bolt, Self Locking, M5 x 16	702082 Bolt, Self Locking, M5 x 16	-	2	Enquire
19	6G339B260BD	Module Assy, Jet Pump	6G339B260BD Module Assy, Jet Pump	-	2	Enquire
20	4G439012APIA01	TIE WRAP - FIR TREE Aprx 18cm/180mm (L)	4G439012APIA01 TIE WRAP - FIR TREE Aprx 18cm/180mm (L)	-	4	Enquire
