Aston Martin V12 Vantage (upto 2016) - Exhaust System

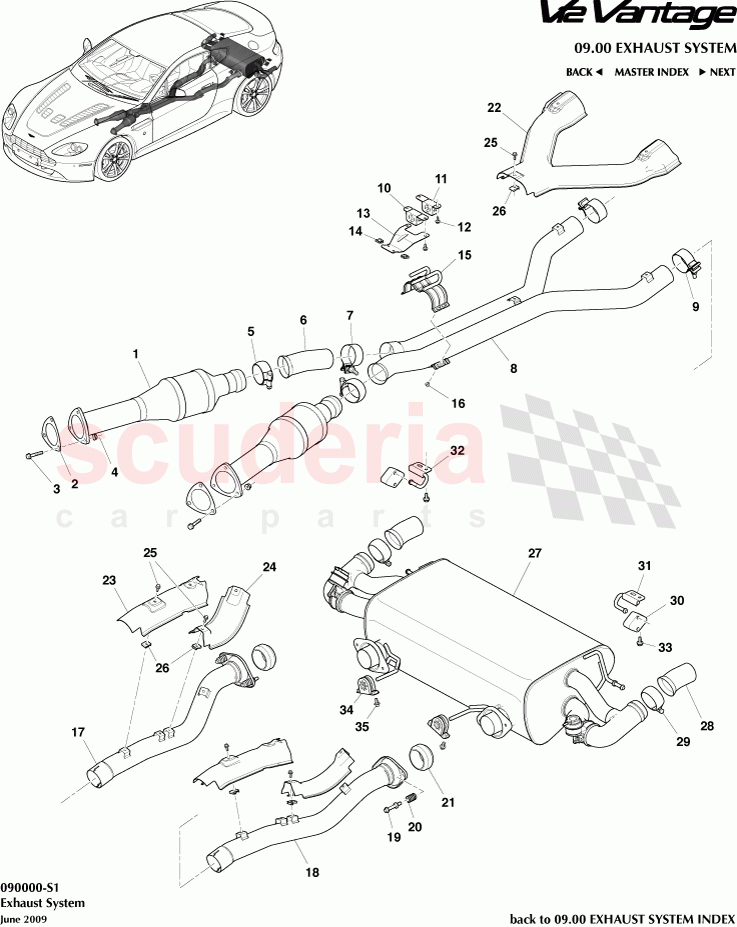

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G435E211AD	Catalyst & Pipe Assembly	$1,147.98	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435E281AA	EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	$53.33	To Order

Photo	Part No	Description	Price (each)	Stock
	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	$16.65	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	$42.25	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order

Photo	Part No	Description	Price (each)	Stock
	CG435220FA	Pipe, Exhaust Intermediate Stub	$43.36	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220AE	INT PIPE - EXHAUST	$585.13	To Order

Photo	Part No	Description	Price (each)	Stock
	AD235220AA	PIPE ASSY - CTR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220AA	Clamp, exhaust pipe rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433962FA	Bracket, Exhaust Isolator	$86.84	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510025	Rubber, Exhaust Mount	$8.43	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233962AA	Bracket, Support	$42.06	To Order

Photo	Part No	Description	Price (each)	Stock
	699736	Clip, Exhaust Heatshields	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	AD235G298AA	Brace assy, Exhaust pipe centre	$169.91	To Order

Photo	Part No	Description	Price (each)	Stock
	703266	Screw M6 x 10 Pan Head Torx	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220BE	INTER PIPE - EXH LH	$585.13	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435220AE	INT PIPE - EXHAUST	$585.13	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4370816AA	Bolt, M8 Flange Head	$4.64	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435F264AA	Spring, Exhaust Pipe Flange	$16.26	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317213BA	Sealing Ring Exhaust	$59.78	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335G221AB	Shield Assy, Exhaust System Rear, Front	$1,173.46	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335G221BE	Heatshield Assy, Exhaust, Intermediate Pipe, Front	$220.69	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335G221CB	Heatshield Assy, Exhaust, Intermediate Pipe, Rear	$366.06	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	699736	Clip, Exhaust Heatshields	$3.05	To Order

Photo	Part No	Description	Price (each)	Stock
	AD235230AE	MUFFLER ASSY	$4,148.89	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335220FB	Pipe, Exhaust Outlet Stub	$69.21	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435221CA	Clamp, Spherical, Exhaust Pipe	$33.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433510026	Isolator, Exhaust Hanger	$68.98	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N201HC	Bracket, Muffler Mounting, LH	$93.12	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335N201JC	Bracket, Muffler Mounting, RH	$93.12	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430910036	FRONT MUFFLER RUBBER SUPPORT	$57.89	To Order

Photo	Part No	Description	Price (each)	Stock
	703730	Screw, M8 x 16, Hex Flange Head	$0.48	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G435E211AD	Catalyst & Pipe Assembly	8G435E211AD Catalyst & Pipe Assembly	$1,147.98	2
2	4G435E281AA	EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	4G435E281AA EXHAUST GASKET MANIFOLD TO CATALYST (SINGLE)	$53.33	1
3	702698	BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	702698 BOLT-M8x45 FLANGE HEAD STAINLESS STEEL	$16.65	6
4	4G4302738AAPK	Nut, M8 Hex Flange Head, Stainless (Pack of 10)	4G4302738AAPK Nut, M8 Hex Flange Head, Stainless (Pack of 10)	$42.25	6
5	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	2
6	CG435220FA	Pipe, Exhaust Intermediate Stub	CG435220FA Pipe, Exhaust Intermediate Stub	$43.36	1
7	4G435220AE	INT PIPE - EXHAUST	4G435220AE INT PIPE - EXHAUST Exhaust pipe centre	$585.13	1
8	AD235220AA	PIPE ASSY - CTR	AD235220AA PIPE ASSY - CTR incl Heatshield	-	1	Enquire
9	4G435220AA	Clamp, exhaust pipe rear	4G435220AA Clamp, exhaust pipe rear Exhaust pipe rear	-	2	Enquire
10	4G433962FA	Bracket, Exhaust Isolator	4G433962FA Bracket, Exhaust Isolator	$86.84	2
11	4G433510025	Rubber, Exhaust Mount	4G433510025 Rubber, Exhaust Mount	$8.43	2
12	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	$0.75	16
13	AD233962AA	Bracket, Support	AD233962AA Bracket, Support	$42.06	1
14	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields	$3.05	2
15	AD235G298AA	Brace assy, Exhaust pipe centre	AD235G298AA Brace assy, Exhaust pipe centre	$169.91	1
16	703266	Screw M6 x 10 Pan Head Torx	703266 Screw M6 x 10 Pan Head Torx	$0.91	4
17	4G435220BE	INTER PIPE - EXH LH	4G435220BE INTER PIPE - EXH LH incl Heatshields	$585.13	1
18	4G435220AE	INT PIPE - EXHAUST	4G435220AE INT PIPE - EXHAUST incl Heatshields	$585.13	1
19	4G4370816AA	Bolt, M8 Flange Head	4G4370816AA Bolt, M8 Flange Head	$4.64	4
20	4G435F264AA	Spring, Exhaust Pipe Flange	4G435F264AA Spring, Exhaust Pipe Flange	$16.26	4
21	4G4317213BA	Sealing Ring Exhaust	4G4317213BA Sealing Ring Exhaust	$59.78	2
22	6G335G221AB	Shield Assy, Exhaust System Rear, Front	6G335G221AB Shield Assy, Exhaust System Rear, Front	$1,173.46	1
23	6G335G221BE	Heatshield Assy, Exhaust, Intermediate Pipe, Front	6G335G221BE Heatshield Assy, Exhaust, Intermediate Pipe, Front	$220.69	2
24	6G335G221CB	Heatshield Assy, Exhaust, Intermediate Pipe, Rear	6G335G221CB Heatshield Assy, Exhaust, Intermediate Pipe, Rear	$366.06	2
25	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	$0.75	4
26	699736	Clip, Exhaust Heatshields	699736 Clip, Exhaust Heatshields	$3.05	4
27	AD235230AE	MUFFLER ASSY	AD235230AE MUFFLER ASSY	$4,148.89	1
28	6G335220FB	Pipe, Exhaust Outlet Stub	6G335220FB Pipe, Exhaust Outlet Stub	$69.21	2
29	4G435221CA	Clamp, Spherical, Exhaust Pipe	4G435221CA Clamp, Spherical, Exhaust Pipe	$33.46	2
30	4G433510026	Isolator, Exhaust Hanger	4G433510026 Isolator, Exhaust Hanger	$68.98	6
31	6G335N201HC	Bracket, Muffler Mounting, LH	6G335N201HC Bracket, Muffler Mounting, LH	$93.12	1
32	6G335N201JC	Bracket, Muffler Mounting, RH	6G335N201JC Bracket, Muffler Mounting, RH	$93.12	1
33	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	$0.29	8
34	6G430910036	FRONT MUFFLER RUBBER SUPPORT	6G430910036 FRONT MUFFLER RUBBER SUPPORT	$57.89	2
35	703730	Screw, M8 x 16, Hex Flange Head	703730 Screw, M8 x 16, Hex Flange Head	$0.48	4
