Name: Courtesy Lighting
Rating: 5.0 (1 reviews)

View All

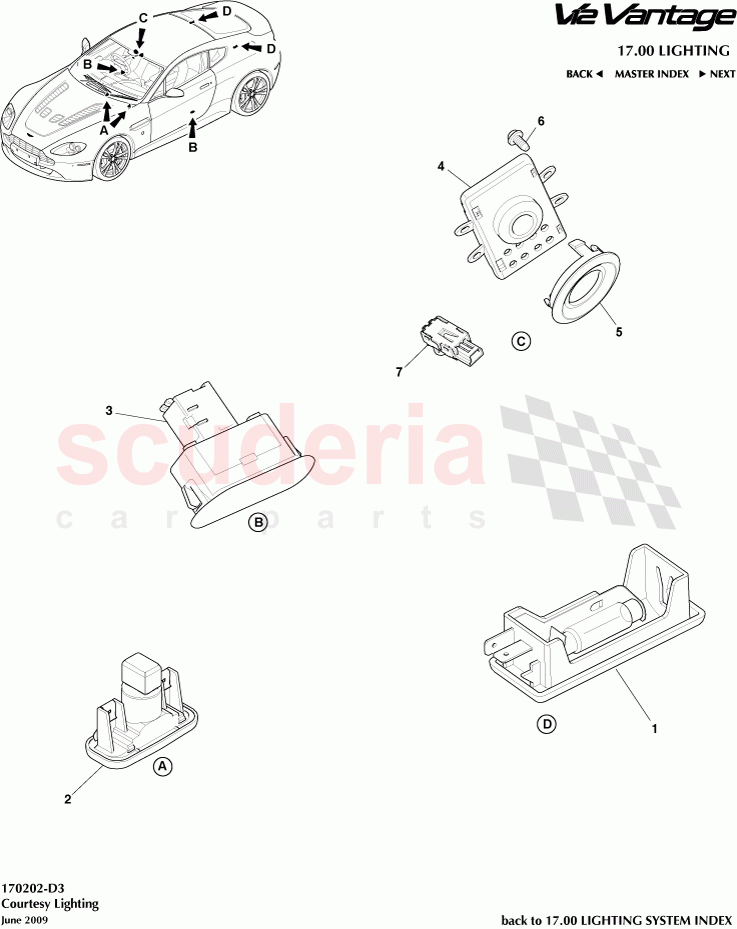

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	93BG13A756AB	Lamp, Boot	$8.72	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313K705AA	LAMP - INTERIOR FOOTWELL	$101.77	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710018	Lamp, Door Ajar / Puddle	$14.49	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D764AB	PCB Housing Assembly, Interior Lamp	$64.02	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313B716AB	Bezel Assy, Capacitive Switching, Satin Chrome	$32.00	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	$0.14	To Order

...and 2 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	93BG13A756AB	Lamp, Boot	93BG13A756AB Lamp, Boot	$8.72	2
2	8D3313K705AA	LAMP - INTERIOR FOOTWELL	8D3313K705AA LAMP - INTERIOR FOOTWELL	$101.77	2
3	4G433710018	Lamp, Door Ajar / Puddle	4G433710018 Lamp, Door Ajar / Puddle	$14.49	2
4	8D3313D764AB	PCB Housing Assembly, Interior Lamp	8D3313D764AB PCB Housing Assembly, Interior Lamp	$64.02	2
5	8D3313B716AB	Bezel Assy, Capacitive Switching, Satin Chrome	8D3313B716AB Bezel Assy, Capacitive Switching, Satin Chrome	$32.00	2
6	4G4380899AA	SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	4G4380899AA SCREW 4 x 8 PAN CLR 6 LOB T/H PLAS (HAND SCREWED)	$0.14	4
7	4G4313465AAPK	BULB W5W BLUE PK 2	4G4313465AAPK BULB W5W BLUE PK 2	$25.89	1
7	8D3313B626AB	Lamp, Ambient, LED	8D3313B626AB Lamp, Ambient, LED	$20.73	1
7	690370707	Bulb, 12V 5W, Capless	690370707 Bulb, 12V 5W, Capless	$2.30	2
7	200370709	BULB-FESTOON 12V 5W	200370709 BULB-FESTOON 12V 5W	$3.17	2
7	1R123710368	BULB-12v WY5W YELLOW WEG FITTING	1R123710368 BULB-12v WY5W YELLOW WEG FITTING	$9.57	2
