Receiver and Audio Media System of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

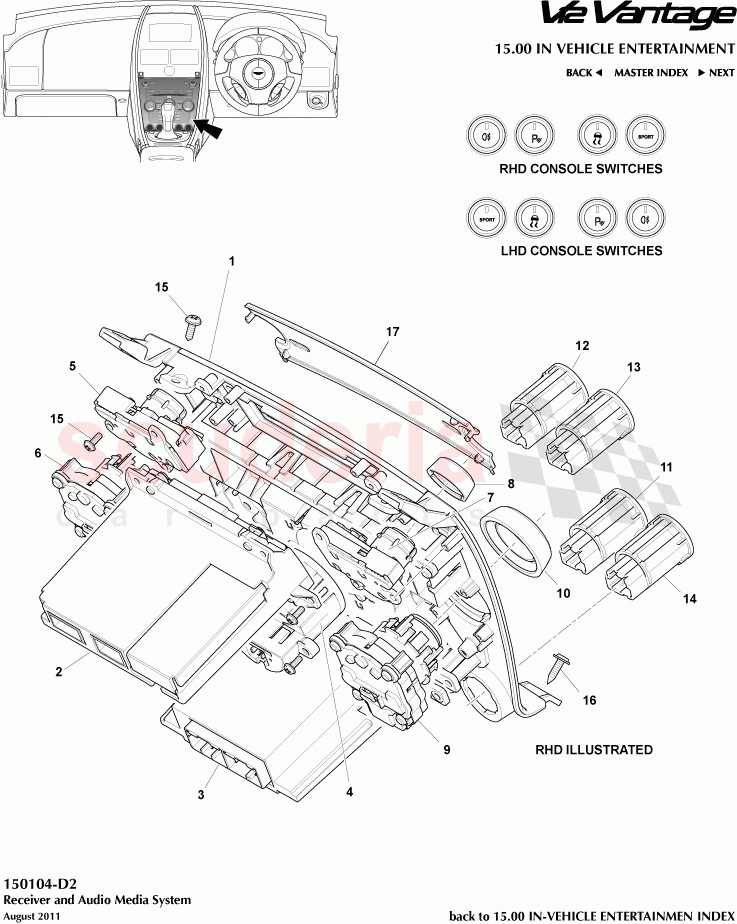

Aston Martin V12 Vantage (upto 2016) - Receiver and Audio Media System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G3313D734AC	SWITCH MAIN BODY (GRAPHITE)	Enquire	To Order
	CD3313D734CA	SWITCH MAIN BODY	Enquire	To Order
	CG3313D734AA	Switch body, Graphite	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG3318C612AB	Module, HVAC control	Enquire	To Order
	8D3318C612AB	CENTRE CONSOLE MODULE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3315000BB	Analogue Clock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D734CB	Switch body, Piano Black surround and Silver lens	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612DA	Module, Temp HVAC Rotary Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D734BB	Module, Volume / Auto Audio Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4318817BA	AUDIO CONTROL KNOB	Enquire	To Order
	8D3318817AC	AUDIO CONROL KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4318783AA	Knob, HVAC control, satin chrome	Enquire	To Order
	8D3318783AC	HVAC CONTROL KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3315A860BB	SWITCH-PARKNG SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314B626BB	SPORTS MODE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG432C418BA	DSC CONTROL SWITCH	Enquire	To Order
	6G332C418AA	DSC CONTROL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315K237BB	FOGLAMP SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707263	SCREW 4.2x13 FLG T/F	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4304708BB	ICM LENS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3318C815JE	CENTRE STACK ASSY	CD3318C815JE CENTRE STACK ASSY 12MY	-	1	Enquire
-	CG3318C815BE	CENTRE STACK	CG3318C815BE CENTRE STACK 12MY	-	1	Enquire
-	8D3318C815CD	CENTRE STACK ASSY PIANO BLACK	8D3318C815CD CENTRE STACK ASSY PIANO BLACK	-	1	Enquire
-	9G3318C815AD	Centre stack assy, Graphite Inner / Graphite Outer	9G3318C815AD Centre stack assy, Graphite Inner / Graphite Outer	-	1	Enquire
1	9G3313D734AC	SWITCH MAIN BODY (GRAPHITE)	9G3313D734AC SWITCH MAIN BODY (GRAPHITE) to include items 8 & 10	-	1	Enquire
1	CD3313D734CA	SWITCH MAIN BODY	CD3313D734CA SWITCH MAIN BODY 12MY	-	1	Enquire
1	CG3313D734AA	Switch body, Graphite	CG3313D734AA Switch body, Graphite 12MY	-	1	Enquire
1	8D3313D734EC	SWITCH MAIN BODY (PIANO BLACK)	8D3313D734EC SWITCH MAIN BODY (PIANO BLACK)	-	1	Enquire
2	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE	-	1	Enquire
3	CG3318C612AB	Module, HVAC control	CG3318C612AB Module, HVAC control 12MY	-	1	Enquire
3	8D3318C612AB	CENTRE CONSOLE MODULE ECU	8D3318C612AB CENTRE CONSOLE MODULE ECU	-	1	Enquire
4	8D3315000BB	Analogue Clock	8D3315000BB Analogue Clock	-	1	Enquire
5	8D3313D734CB	Switch body, Piano Black surround and Silver lens	8D3313D734CB Switch body, Piano Black surround and Silver lens	-	1	Enquire
6	8D3318C612DA	Module, Temp HVAC Rotary Control	8D3318C612DA Module, Temp HVAC Rotary Control	-	1	Enquire
7	8D3313D734BB	Module, Volume / Auto Audio Control	8D3313D734BB Module, Volume / Auto Audio Control	-	1	Enquire
8	CG4318817BA	AUDIO CONTROL KNOB	CG4318817BA AUDIO CONTROL KNOB 12MY	-	2	Enquire
8	8D3318817AC	AUDIO CONROL KNOB	8D3318817AC AUDIO CONROL KNOB	-	2	Enquire
9	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	8D3318C612EA Module, Fan Speed HVAC Rotary Control	-	1	Enquire
10	CG4318783AA	Knob, HVAC control, satin chrome	CG4318783AA Knob, HVAC control, satin chrome 12MY	-	2	Enquire
10	8D3318783AC	HVAC CONTROL KNOB	8D3318783AC HVAC CONTROL KNOB	-	2	Enquire
11	8D3315A860BB	SWITCH-PARKNG SENSOR	8D3315A860BB SWITCH-PARKNG SENSOR	-	1	Enquire
12	6G3314B626BB	SPORTS MODE SWITCH	6G3314B626BB SPORTS MODE SWITCH	-	1	Enquire
13	BG432C418BA	DSC CONTROL SWITCH	BG432C418BA DSC CONTROL SWITCH 11MY	-	1	Enquire
13	6G332C418AA	DSC CONTROL SWITCH	6G332C418AA DSC CONTROL SWITCH	-	1	Enquire
14	6G3315K237BB	FOGLAMP SWITCH	6G3315K237BB FOGLAMP SWITCH	-	1	Enquire
15	707263	SCREW 4.2x13 FLG T/F	707263 SCREW 4.2x13 FLG T/F	-	2	Enquire
16	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	2	Enquire
17	AG4304708BB	ICM LENS	AG4304708BB ICM LENS 9.5MY on	-	1	Enquire
