Aston Martin Vanquish (2012+) - Rear Suspension Links and Arms

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock

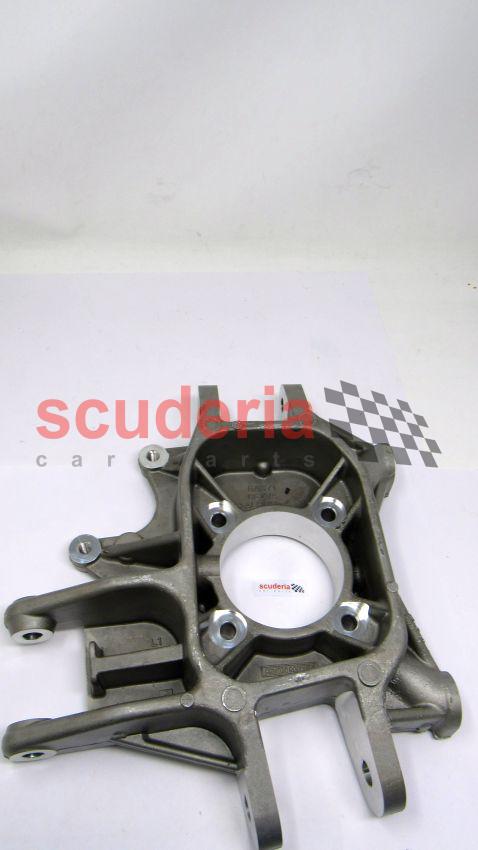

AD235A971AA Knuckle, Rear Wheel, LH $1,908.33 To Order
Photo Part No Description Price (each) Stock

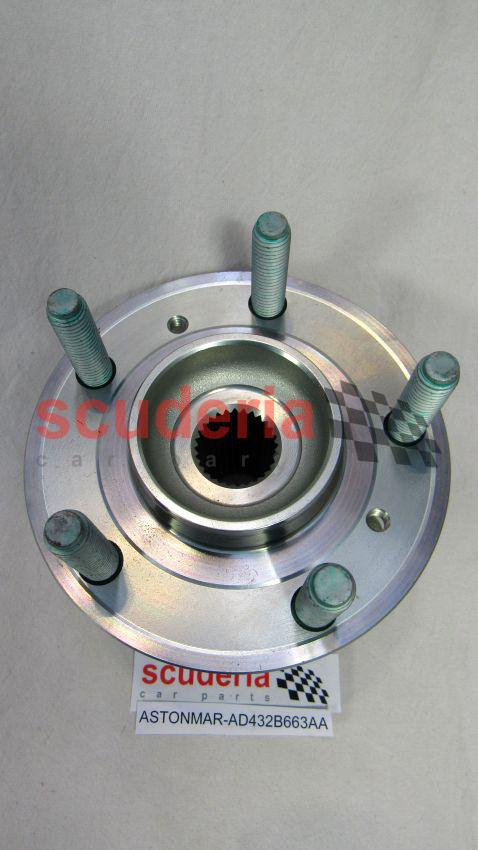

AD432B663AA Suspension Hub and Bearing $913.89 IN STOCK
Photo Part No Description Price (each) Stock
4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) $27.31 IN STOCK
Photo Part No Description Price (each) Stock

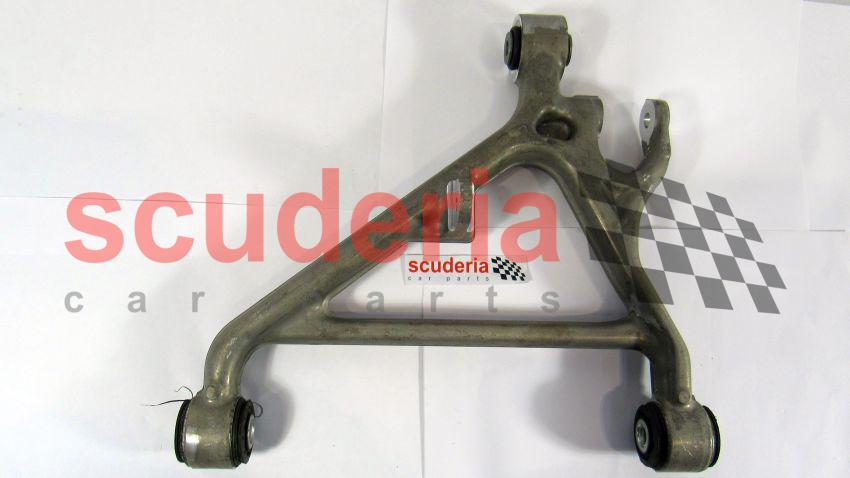

DG435B531AB ARM & BUSH ASSY REAR $695.50 To Order
Photo Part No Description Price (each) Stock
703133 BOLT M14 X 110 HEX FLANGE CHROME FREE $21.66 IN STOCK
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head $1.39 IN STOCK
Photo Part No Description Price (each) Stock
CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED $6.69 IN STOCK
Photo Part No Description Price (each) Stock
703274 Bolt, M12, Eccentric $47.10 IN STOCK
Photo Part No Description Price (each) Stock
4G432610840PK WASHER-M12 ECCENTRIC PACK OF 10 $17.17 To Order
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.27 IN STOCK
Photo Part No Description Price (each) Stock

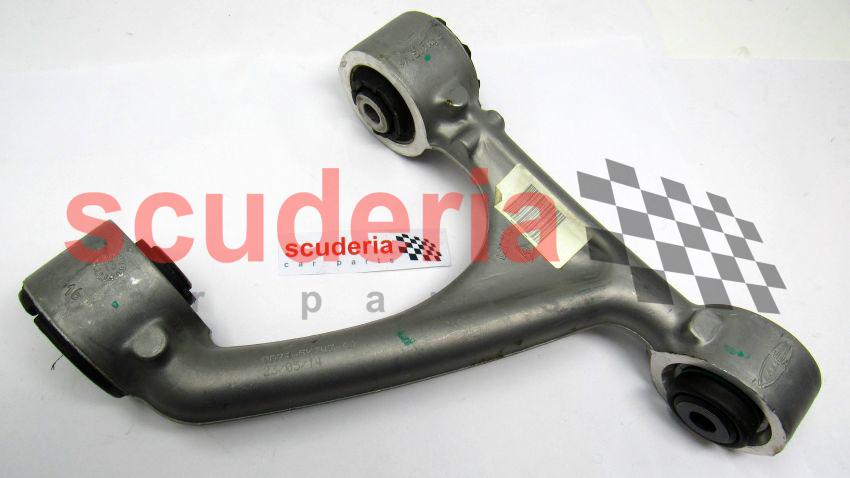

DD335K743AA Arm & Bush Assy, Rear Suspension, Upper $626.86 To Order
Photo Part No Description Price (each) Stock
AD33487029AA Bolt, M12 x 110, Hex Flange Head $9.77 IN STOCK
Photo Part No Description Price (each) Stock
703181 BOLT M12 X 85 HEX FLANGE CHROME FREE $12.48 IN STOCK
Photo Part No Description Price (each) Stock
BG435B551AA Arm Assy, Rear Toe Control $310.38 To Order
Photo Part No Description Price (each) Stock
4G435K978AB Bolt, M12, Eccentric $45.41 IN STOCK
View All

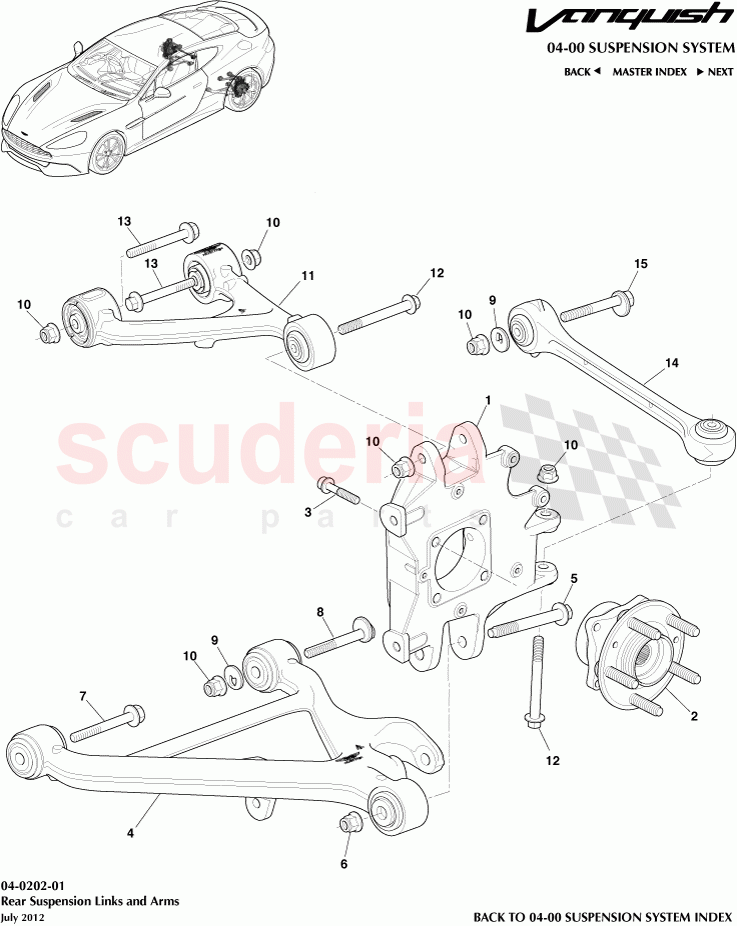

Rear Suspension Links and Arms of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- AD235A970AA
KNUCKLE - REAR WHEEL RH 		$1,908.33 1
- DG435B530AB
ARM & BUSH ASSY RR 		$709.43 1
1 AD235A971AA
Knuckle, Rear Wheel, LH 		$1,908.33 1
2 AD432B663AA
Suspension Hub and Bearing
IN STOCK 		$913.89 2
3 4G430783AAPK
Hub Bolt M10 x 55 x 1.25 (Pack of 5)
Pack of 5
IN STOCK 		$27.31 8
4 DG435B531AB
ARM & BUSH ASSY REAR 		$695.50 1
5 703133
BOLT M14 X 110 HEX FLANGE CHROME FREE
IN STOCK 		$21.66 2
6 704596
Nut, M14, Hex Flange Head
IN STOCK 		$1.39 2
7 CG4308024AA
BOLT M12 X 90 HEXAGON HEAD FLANGED
IN STOCK 		$6.69 2
8 703274
Bolt, M12, Eccentric
IN STOCK 		$47.10 2
9 4G432610840PK
WASHER-M12 ECCENTRIC PACK OF 10
Pack of 10 		$17.17 4
10 703565
NUT-M12 HEX FLANGE
IN STOCK 		$1.27 12
11 DD335K743AA
Arm & Bush Assy, Rear Suspension, Upper 		$626.86 2
12 AD33487029AA
Bolt, M12 x 110, Hex Flange Head
IN STOCK 		$9.77 4
13 703181
BOLT M12 X 85 HEX FLANGE CHROME FREE
IN STOCK 		$12.48 4
14 BG435B551AA
Arm Assy, Rear Toe Control 		$310.38 2
15 4G435K978AB
Bolt, M12, Eccentric
IN STOCK 		$45.41 2
