Front Wheel and Tyre of Aston Martin Aston Martin Vanquish (2012+)

View All

Aston Martin Vanquish (2012+) - Front Wheel and Tyre

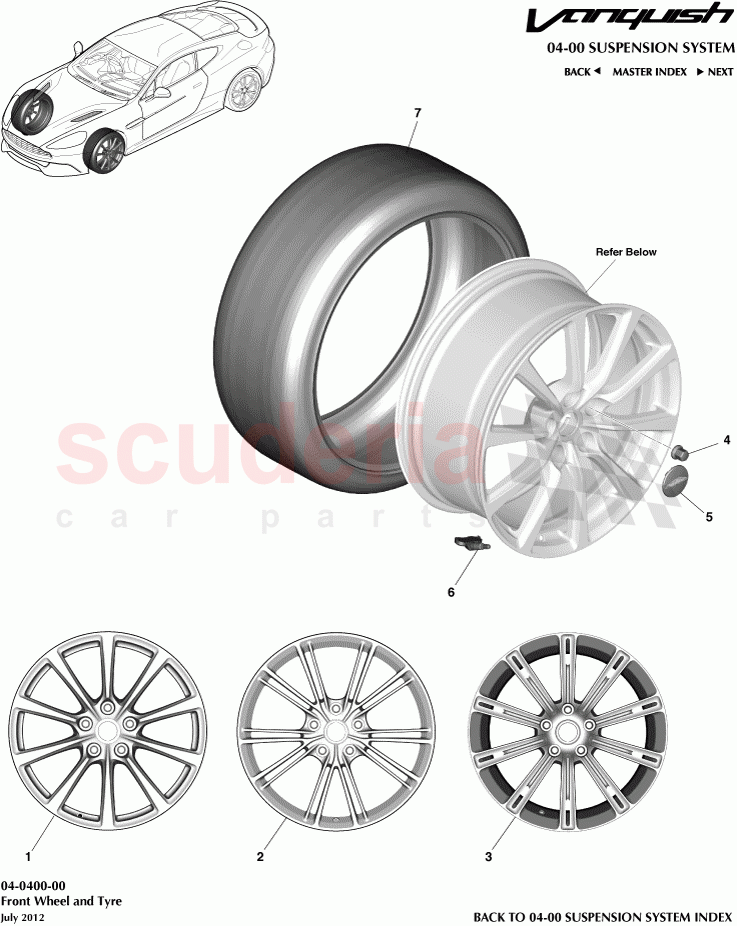

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD331007AA	Wheel, Front 20 Inch, 10 Spoke	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD331007CA	Wheel, Front 20 Inch, 20 Spoke	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD431007XA	Wheel, Front 20 Inch, 10 Spoke	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431K024BD	Nut, Wheel, M14 x 2.0	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	HY531A096FAPK	BADGE-WHEEL CENTRE (PACK OF 4)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD23360671CA	TPMS Valve and Transmitter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FD331508AB	RD TYRE FT 25535ZR20	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD331007BA	Wheel, Front 20 Inch, 10 Spoke	CD331007BA Wheel, Front 20 Inch, 10 Spoke Graphite	-	2	Enquire
-	CD331007EA	Wheel, Front 20 Inch, 20 Spoke	CD331007EA Wheel, Front 20 Inch, 20 Spoke Gloss Black Diamond Turned	-	2	Enquire
-	CD331007FA	Wheel, Front 20 Inch, 20 Spoke	CD331007FA Wheel, Front 20 Inch, 20 Spoke Silver Diamond Turned	-	2	Enquire
-	CD331007GA	Wheel, Front 20 Inch, 20 Spoke	CD331007GA Wheel, Front 20 Inch, 20 Spoke Graphite Diamond Turned	-	2	Enquire
-	CD331007HA	Wheel, Front 20 Inch, 20 Spoke	CD331007HA Wheel, Front 20 Inch, 20 Spoke Satin Black Diamond Turned	-	2	Enquire
-	HY531A096EAPK	BADGE-WHL CENTRE(4)	HY531A096EAPK BADGE-WHL CENTRE(4) Black / Black	-	2	Enquire
-	HY531A096HAPK	BADGE-WHL CENTRE(4)	HY531A096HAPK BADGE-WHL CENTRE(4) Black / Graphite	-	2	Enquire
-	CD23360671DA	TPMS Valve and Transmitter Assy	CD23360671DA TPMS Valve and Transmitter Assy 315 MHZ	-	2	Enquire
-	CG333610675	TYRE VALVE SET	CG333610675 TYRE VALVE SET	-	2	Enquire
-	AY2Y1040AA	Weight, Counter Balance, 5 Grams	AY2Y1040AA Weight, Counter Balance, 5 Grams	-	A/R	Enquire
-	8D331508CA	Tyre, Road Front Winter, 245/35 R20	8D331508CA Tyre, Road Front Winter, 245/35 R20 Only Use with Item 3	-	2	Enquire
-	CG43974747AA	Label, Winter Tyre, Maximum Speeds When Fitted	CG43974747AA Label, Winter Tyre, Maximum Speeds When Fitted	-	1	Enquire
1	CD331007AA	Wheel, Front 20 Inch, 10 Spoke	CD331007AA Wheel, Front 20 Inch, 10 Spoke Silver	-	2	Enquire
2	CD331007CA	Wheel, Front 20 Inch, 20 Spoke	CD331007CA Wheel, Front 20 Inch, 20 Spoke Liquid Silver	-	2	Enquire
3	AD431007XA	Wheel, Front 20 Inch, 10 Spoke	AD431007XA Wheel, Front 20 Inch, 10 Spoke Graphite, Winter Wheel	-	2	Enquire
4	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 ARRIVING SOON	-	10	Enquire
5	HY531A096FAPK	BADGE-WHEEL CENTRE (PACK OF 4)	HY531A096FAPK BADGE-WHEEL CENTRE (PACK OF 4) Black / Silver	-	2	Enquire
6	CD23360671CA	TPMS Valve and Transmitter	CD23360671CA TPMS Valve and Transmitter 433 MHZ	-	2	Enquire
7	FD331508AB	RD TYRE FT 25535ZR20	FD331508AB RD TYRE FT 25535ZR20 Pzero	-	2	Enquire
