Name: Steering Column Assembly
Rating: 5.0 (1 reviews)

Steering Column Assembly of Aston Martin Aston Martin V12 Zagato

View All

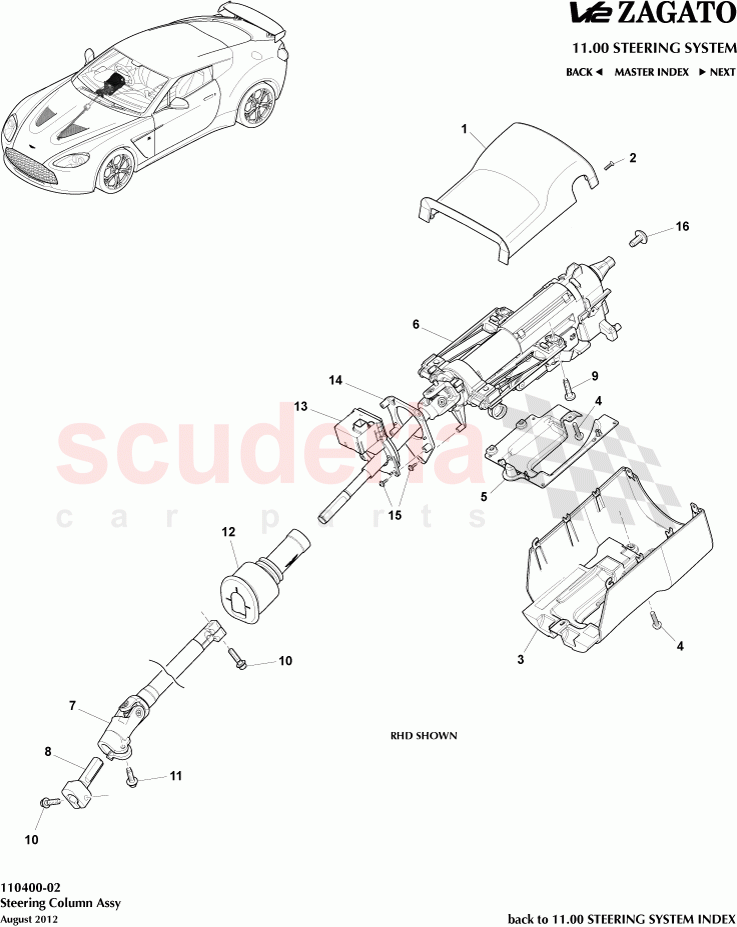

Aston Martin V12 Zagato - Steering Column Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433C695BDW	Shroud, Steering Column Upper	$1,611.84	To Order

Photo	Part No	Description	Price (each)	Stock
	699123	Screw, No.6 x 9.5 Countersunk Head	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333533ADW	SHRD ASY STNG COL LW	$740.42	To Order

Photo	Part No	Description	Price (each)	Stock
	703736	Screw Self Tapping, 4.2 x 19, Washer Head	$0.12	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333E721AB	Plate, steering column, load spread	$10.59	To Order

Photo	Part No	Description	Price (each)	Stock
	AD433C529AB	Column Assy, Electric with Isolator	$1,624.78	To Order

Photo	Part No	Description	Price (each)	Stock
	91963	STEERING COLUMN ASSY	$4,943.05	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433N997AC	Coupling, Steering Gear to Column	$117.53	To Order

Photo	Part No	Description	Price (each)	Stock
	701353	Screw, M8 x 30 Pan Head, Torx Drive	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433C684AB	Bolt, M8 x 30, Hex Head Flange, Patch	$3.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703138PK	BOLT-M8x25 PATCH CHROME FREE PACK OF 10	$6.94	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433D677BA	Gaiter, Steering Column, RHD	$58.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433F818AB	SNS ASY - STNG ROT	$372.36	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43ALR3219BA	Bracket, Steering Angle Sensor Mounting	$4.35	To Order

Photo	Part No	Description	Price (each)	Stock
	707158	Screw & Washer, M3.5 x 13, Flange Pan Head	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701355	Screw, M10 x 21.8, Pan Head, Pilot	$1.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	4G433D677AA	Gaiter, Steering Column, LHD	4G433D677AA Gaiter, Steering Column, LHD	$59.67	1
1	4G433C695BDW	Shroud, Steering Column Upper	4G433C695BDW Shroud, Steering Column Upper	$1,611.84	1
2	699123	Screw, No.6 x 9.5 Countersunk Head	699123 Screw, No.6 x 9.5 Countersunk Head	$0.37	2
3	8D333533ADW	SHRD ASY STNG COL LW	8D333533ADW SHRD ASY STNG COL LW	$740.42	1
4	703736	Screw Self Tapping, 4.2 x 19, Washer Head	703736 Screw Self Tapping, 4.2 x 19, Washer Head	$0.12	8
5	8D333E721AB	Plate, steering column, load spread	8D333E721AB Plate, steering column, load spread	$10.59	1
6	AD433C529AB	Column Assy, Electric with Isolator	AD433C529AB Column Assy, Electric with Isolator	$1,624.78	1
7	91963	STEERING COLUMN ASSY	91963 STEERING COLUMN ASSY	$4,943.05	1
8	4G433N997AC	Coupling, Steering Gear to Column	4G433N997AC Coupling, Steering Gear to Column	$117.53	1
9	701353	Screw, M8 x 30 Pan Head, Torx Drive	701353 Screw, M8 x 30 Pan Head, Torx Drive	$1.30	4
10	4G433C684AB	Bolt, M8 x 30, Hex Head Flange, Patch IN STOCK	4G433C684AB Bolt, M8 x 30, Hex Head Flange, Patch IN STOCK	$3.17	2
11	703138PK	BOLT-M8x25 PATCH CHROME FREE PACK OF 10	703138PK BOLT-M8x25 PATCH CHROME FREE PACK OF 10 Pack of 10	$6.94	1
12	4G433D677BA	Gaiter, Steering Column, RHD	4G433D677BA Gaiter, Steering Column, RHD	$58.46	1
13	4G433F818AB	SNS ASY - STNG ROT	4G433F818AB SNS ASY - STNG ROT	$372.36	1
14	4G43ALR3219BA	Bracket, Steering Angle Sensor Mounting	4G43ALR3219BA Bracket, Steering Angle Sensor Mounting	$4.35	1
15	707158	Screw & Washer, M3.5 x 13, Flange Pan Head IN STOCK	707158 Screw & Washer, M3.5 x 13, Flange Pan Head IN STOCK	$1.23	6
16	701355	Screw, M10 x 21.8, Pan Head, Pilot	701355 Screw, M10 x 21.8, Pan Head, Pilot	$1.27	1
