Cooler, Hoses, and Reservoir - LHD of Aston Martin Aston Martin V12 Zagato

View All

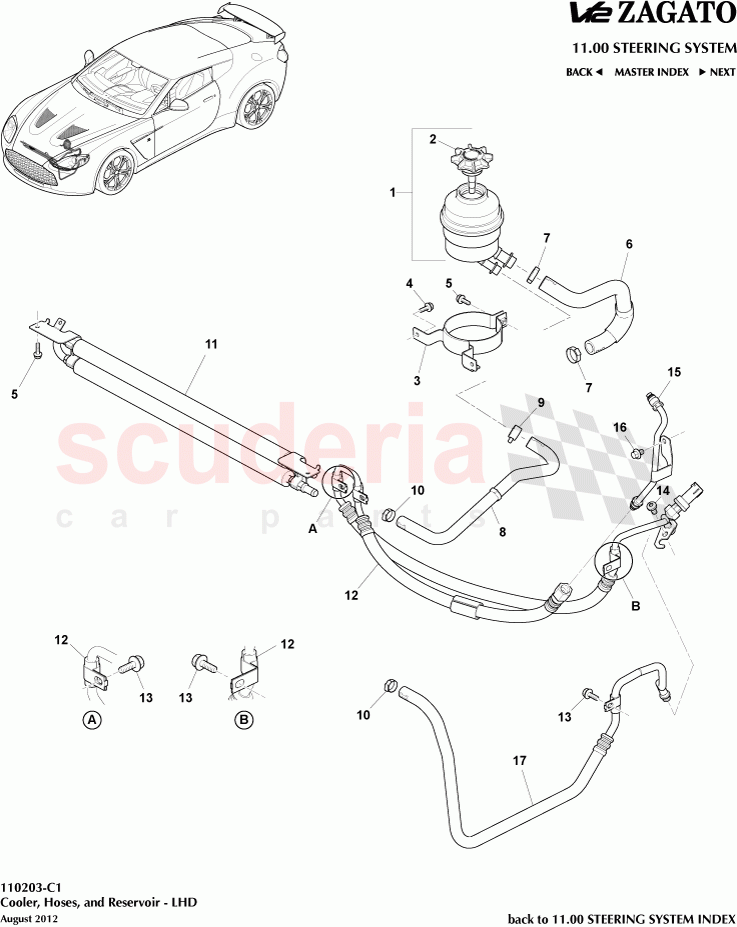

Aston Martin V12 Zagato - Cooler, Hoses, and Reservoir - LHD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433R700AB	Reservoir and Cap Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2334006AA	Cap, Power Steering Reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233489AA	BRACKET ASSY - PAS RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233E525AB	HOSE ASSY PAS RESERVOIR TO PUMP SUCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233A713AA	PAS HOSE COOLER TO RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701349	Clamp, Hose 20 Dia	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3360155AA	CLAMP - PAS HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233D746AA	Cooler Assy, Power Steering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233A719CA	Hose Assy, PAS Pressure Line, Pump to Gear, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703141	SCREW M8 x 16 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233494AA	Tube Assy, PWR Steering Pump Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703202	Screw, M8 x 12, Flange Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD233F558AA	PAS RETURN HOSE GEAR TO COOLER LHD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G433R700AB	Reservoir and Cap Assembly	4G433R700AB Reservoir and Cap Assembly	-	1	Enquire
2	AD2334006AA	Cap, Power Steering Reservoir	AD2334006AA Cap, Power Steering Reservoir	-	1	Enquire
3	AD233489AA	BRACKET ASSY - PAS RESERVOIR	AD233489AA BRACKET ASSY - PAS RESERVOIR	-	1	Enquire
4	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
5	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	7	Enquire
6	AD233E525AB	HOSE ASSY PAS RESERVOIR TO PUMP SUCTION	AD233E525AB HOSE ASSY PAS RESERVOIR TO PUMP SUCTION	-	1	Enquire
7	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	699545 HOSE CLAMP OETIKER REF: 025.6 - 706R	-	2	Enquire
8	AD233A713AA	PAS HOSE COOLER TO RESERVOIR	AD233A713AA PAS HOSE COOLER TO RESERVOIR	-	1	Enquire
9	701349	Clamp, Hose 20 Dia	701349 Clamp, Hose 20 Dia	-	1	Enquire
10	8D3360155AA	CLAMP - PAS HOSE	8D3360155AA CLAMP - PAS HOSE	-	2	Enquire
11	AD233D746AA	Cooler Assy, Power Steering	AD233D746AA Cooler Assy, Power Steering	-	1	Enquire
12	AD233A719CA	Hose Assy, PAS Pressure Line, Pump to Gear, LHD	AD233A719CA Hose Assy, PAS Pressure Line, Pump to Gear, LHD	-	1	Enquire
13	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	4	Enquire
14	703141	SCREW M8 x 16 CHROME FREE	703141 SCREW M8 x 16 CHROME FREE	-	1	Enquire
15	AD233494AA	Tube Assy, PWR Steering Pump Outlet	AD233494AA Tube Assy, PWR Steering Pump Outlet Includes O Rings	-	1	Enquire
16	703202	Screw, M8 x 12, Flange Hd	703202 Screw, M8 x 12, Flange Hd	-	1	Enquire
17	AD233F558AA	PAS RETURN HOSE GEAR TO COOLER LHD	AD233F558AA PAS RETURN HOSE GEAR TO COOLER LHD	-	1	Enquire
