Name: Differential- MANUAL
Rating: 4.7 (1 reviews)

Differential- MANUAL of Aston Martin Aston Martin V12 Zagato

View All

Aston Martin V12 Zagato - Differential- MANUAL

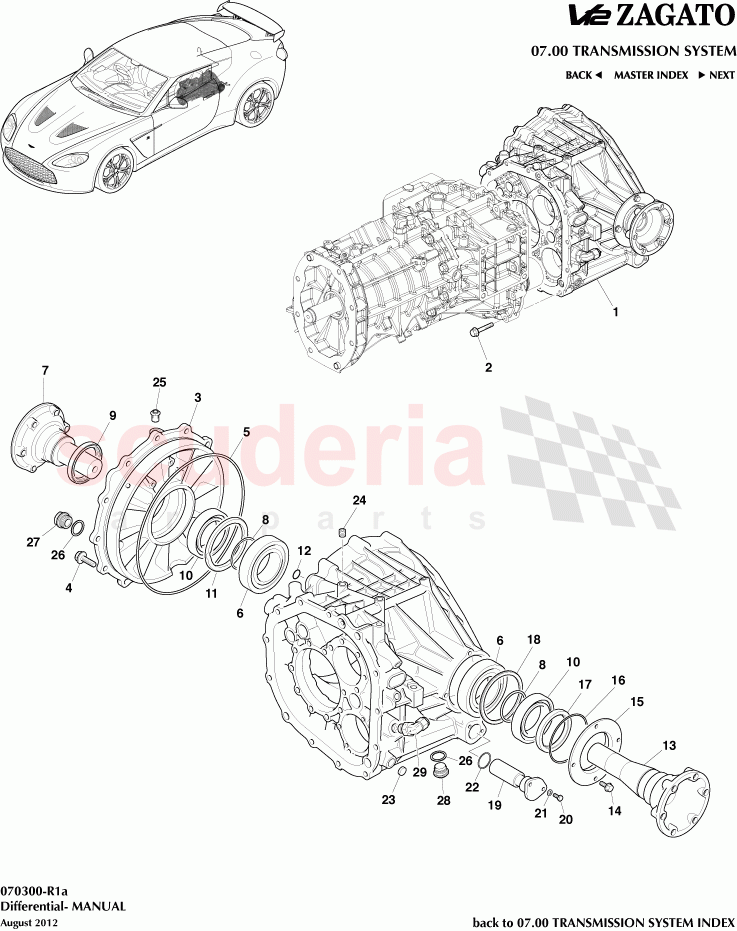

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G432710611	HOUSING-DIFFERENTIAL	$5,202.57	To Order

Photo	Part No	Description	Price (each)	Stock
	CY832710001	Bolt, M8 x 45, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710606	COVER - DIFFERENTIAL	$1,641.99	To Order

Photo	Part No	Description	Price (each)	Stock
	702815	BOLT M8 x 30	$5.35	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710607	SEAL - COVER	$127.30	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710605	Bearing, Differential Output	$325.16	To Order

Photo	Part No	Description	Price (each)	Stock
	702813	SHIM	$4.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	$77.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G432710603	Bearing, Differential Output Shaft	$216.12	To Order

Photo	Part No	Description	Price (each)	Stock
	702814	SHIM	$175.72	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710502	O Ring, 2.69 x 9.92	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710600	OUTPUT SHAFT - LEFT SIDE DIF	$1,261.98	To Order

Photo	Part No	Description	Price (each)	Stock
	702812	Bolt, M6 x 16, Hex Flange Head	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	CY832710002	Retainer, Differential Output Shaft Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710482	O Ring, 2.62 x 75.87	$12.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	$78.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702816	SHIM	$70.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710490	Filter, Oil	$211.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G432710492	Screw, M5 x 12	$3.28	To Order

Photo	Part No	Description	Price (each)	Stock
	702821	Washer, 5.3 x 0.5	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	$44.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702818	PLUG	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	702817	Set Screw, M8 x 10	$7.35	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710488	Adaptor, Breather	$99.11	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	$43.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G432710493	PLUG - OIL LEVEL M22	$14.78	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	$54.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	CY832710003	Adaptor, 90 Degree, Cooler Pipe	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G4319G506BA	Grease, Input Shaft Spline	4G4319G506BA Grease, Input Shaft Spline	$28.08	A/R
-	6G3375106AAS	Oil, Manual Transmission, 1 ltr	6G3375106AAS Oil, Manual Transmission, 1 ltr	$40.90	A/R
1	4G432710611	HOUSING-DIFFERENTIAL	4G432710611 HOUSING-DIFFERENTIAL	$5,202.57	1
2	CY832710001	Bolt, M8 x 45, Hex Flange Head	CY832710001 Bolt, M8 x 45, Hex Flange Head	-	13	Enquire
3	4G432710606	COVER - DIFFERENTIAL	4G432710606 COVER - DIFFERENTIAL	$1,641.99	1
4	702815	BOLT M8 x 30	702815 BOLT M8 x 30	$5.35	12
5	4G432710607	SEAL - COVER	4G432710607 SEAL - COVER	$127.30	1
6	4G432710605	Bearing, Differential Output	4G432710605 Bearing, Differential Output	$325.16	2
8	702813	SHIM	702813 SHIM	$4.51	2
9	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8 IN STOCK	4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8 IN STOCK	$77.89	1
10	4G432710603	Bearing, Differential Output Shaft	4G432710603 Bearing, Differential Output Shaft	$216.12	2
11	702814	SHIM	702814 SHIM	$175.72	1
12	4G432710502	O Ring, 2.69 x 9.92	4G432710502 O Ring, 2.69 x 9.92	$1.85	1
13	4G432710600	OUTPUT SHAFT - LEFT SIDE DIF	4G432710600 OUTPUT SHAFT - LEFT SIDE DIF	$1,261.98	1
14	702812	Bolt, M6 x 16, Hex Flange Head	702812 Bolt, M6 x 16, Hex Flange Head	$1.27	4
15	CY832710002	Retainer, Differential Output Shaft Bearing	CY832710002 Retainer, Differential Output Shaft Bearing	-	1	Enquire
16	4G432710482	O Ring, 2.62 x 75.87 IN STOCK	4G432710482 O Ring, 2.62 x 75.87 IN STOCK	$12.75	1
17	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8 IN STOCK	4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8 IN STOCK	$78.68	1
18	702816	SHIM	702816 SHIM	$70.51	1
19	4G432710490	Filter, Oil IN STOCK	4G432710490 Filter, Oil IN STOCK	$211.45	1
20	4G432710492	Screw, M5 x 12	4G432710492 Screw, M5 x 12	$3.28	2
21	702821	Washer, 5.3 x 0.5	702821 Washer, 5.3 x 0.5	$4.33	2
22	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10) IN STOCK	4G432710491PK O RING 2.62 x 20.63 (PACK OF 10) IN STOCK	$44.23	1
23	702818	PLUG	702818 PLUG	$3.53	2
24	702817	Set Screw, M8 x 10	702817 Set Screw, M8 x 10	$7.35	6
25	4G432710488	Adaptor, Breather	4G432710488 Adaptor, Breather	$99.11	1
26	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10) IN STOCK	4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10) IN STOCK	$43.47	2
27	4G432710493	PLUG - OIL LEVEL M22 IN STOCK	4G432710493 PLUG - OIL LEVEL M22 IN STOCK	$14.78	1
28	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) IN STOCK	4G432710244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF) IN STOCK	$54.16	1
29	CY832710003	Adaptor, 90 Degree, Cooler Pipe	CY832710003 Adaptor, 90 Degree, Cooler Pipe	-	1	Enquire

Differential- Manual

Aston Martin V12 Zagato

Aston Martin V12 Zagato - Differential- MANUAL
