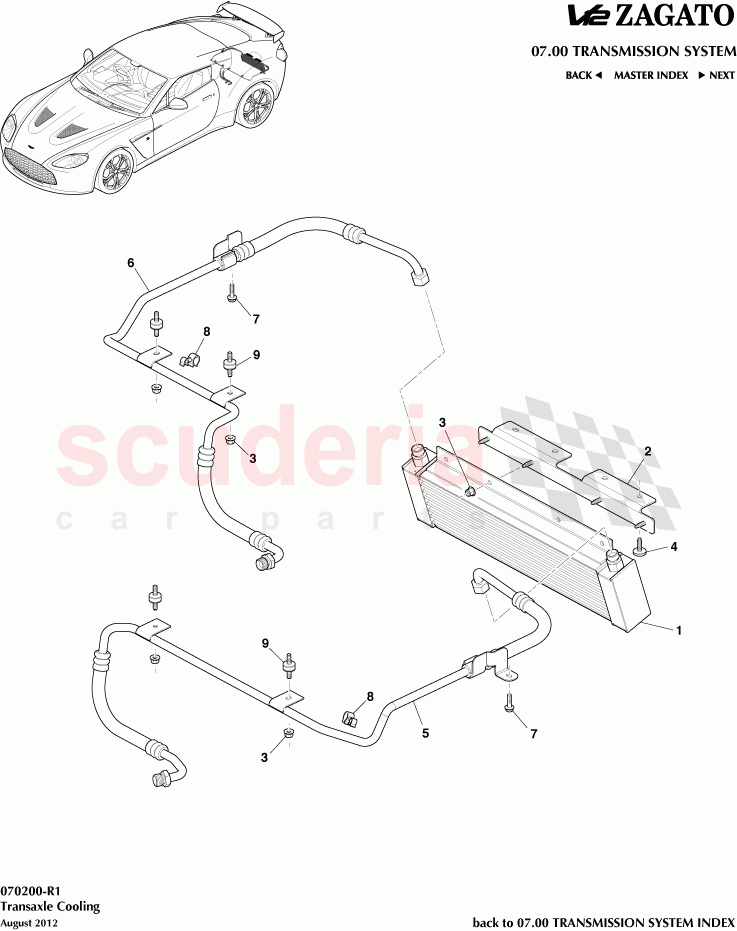

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD237869AB	Cooler Assy, Transmission Oil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2317759AA	Bracket, Transmission Cooler to Bumper Beam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337F112DB	Cooler Pipe, Outlet Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337F113DB	Cooler Pipe, Inlet Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702283	Clip, Double Swivel Type, 6-11mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336C778BA	Isolator, Oil Cooler Pipe Mounting	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD237869AB	Cooler Assy, Transmission Oil	AD237869AB Cooler Assy, Transmission Oil	-	1	Enquire
2	AD2317759AA	Bracket, Transmission Cooler to Bumper Beam	AD2317759AA Bracket, Transmission Cooler to Bumper Beam	-	1	Enquire
3	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	8	Enquire
4	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	2	Enquire
5	6G337F112DB	Cooler Pipe, Outlet Rear	6G337F112DB Cooler Pipe, Outlet Rear	-	1	Enquire
6	6G337F113DB	Cooler Pipe, Inlet Rear	6G337F113DB Cooler Pipe, Inlet Rear	-	1	Enquire
7	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
8	702283	Clip, Double Swivel Type, 6-11mm	702283 Clip, Double Swivel Type, 6-11mm	-	2	Enquire
9	6G336C778BA	Isolator, Oil Cooler Pipe Mounting	6G336C778BA Isolator, Oil Cooler Pipe Mounting	-	4	Enquire
