Rear Wheel and Tyre Assembly of Aston Martin Aston Martin Rapide

View All

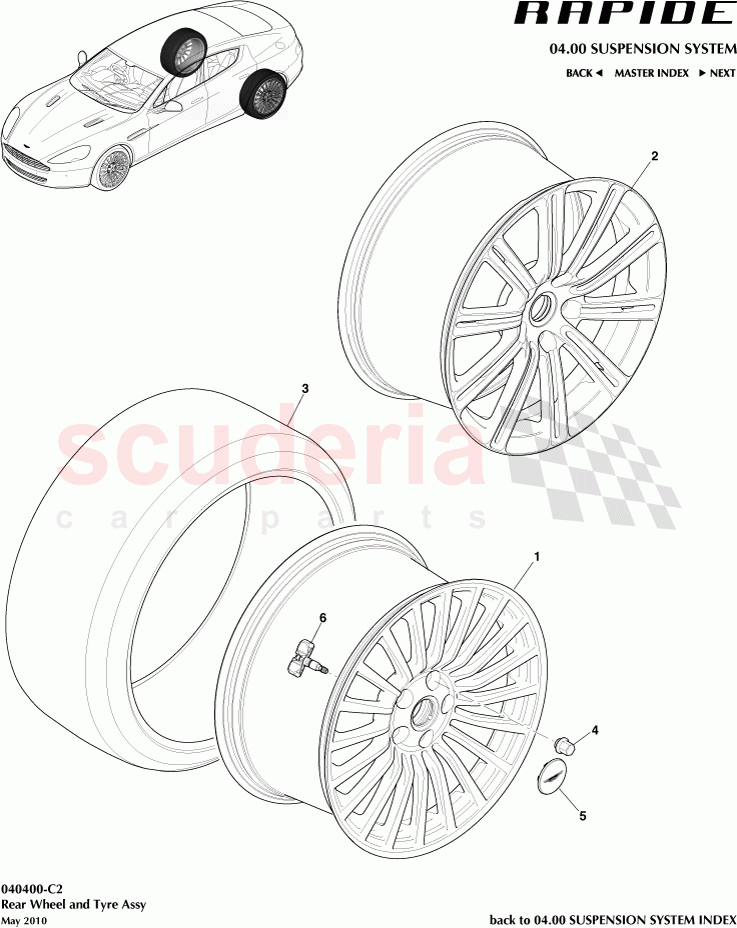

Aston Martin Rapide - Rear Wheel and Tyre Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD431007RA	WHEEL REAR GRAPHITE 20 SPOKE 20 inch DT	Enquire	To Order
	AD431007NA	WHEEL REAR-20 inch SILVER DT 433MHZ 20 SPOKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD431007JA	WHEEL REAR-SILVER 10 SPOKE 20 inch	Enquire	To Order
	AD431007LA	10 SPOKE 20 inch WHEEL REAR-GRAPHITE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD431508DA	WINTER TYRE-REAR 295/35/R20	Enquire	To Order
	FD431508BB	TYRE REAR 295-35R20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G431K024BD	Nut, Wheel, M14 x 2.0	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	HY531A096DAPK	Badge - Wheel Centre (Pack of 4)	Enquire	To Order
	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD23360671CA	TPMS Valve and Transmitter	Enquire	To Order
	CD23360671DA	TPMS Valve and Transmitter Assy	Enquire	To Order
	AD33974747AA	Label, winter tyre	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD431007RA	WHEEL REAR GRAPHITE 20 SPOKE 20 inch DT	AD431007RA WHEEL REAR GRAPHITE 20 SPOKE 20 inch DT Multi spoke	-	2	Enquire
1	AD431007NA	WHEEL REAR-20 inch SILVER DT 433MHZ 20 SPOKE	AD431007NA WHEEL REAR-20 inch SILVER DT 433MHZ 20 SPOKE Multi spoke	-	2	Enquire
2	AD431007JA	WHEEL REAR-SILVER 10 SPOKE 20 inch	AD431007JA WHEEL REAR-SILVER 10 SPOKE 20 inch Ten spoke	-	2	Enquire
2	AD431007LA	10 SPOKE 20 inch WHEEL REAR-GRAPHITE	AD431007LA 10 SPOKE 20 inch WHEEL REAR-GRAPHITE Ten spoke	-	2	Enquire
3	AD431508DA	WINTER TYRE-REAR 295/35/R20	AD431508DA WINTER TYRE-REAR 295/35/R20 -Winter tyre	-	2	Enquire
3	FD431508BB	TYRE REAR 295-35R20	FD431508BB TYRE REAR 295-35R20	-	2	Enquire
4	4G431K024BD	Nut, Wheel, M14 x 2.0 ARRIVING SOON	4G431K024BD Nut, Wheel, M14 x 2.0 ARRIVING SOON	-	10	Enquire
5	HY531A096DAPK	Badge - Wheel Centre (Pack of 4)	HY531A096DAPK Badge - Wheel Centre (Pack of 4) -Anthracite/ Graphite	-	1	Enquire
5	HY531A096BAPK	Badge Wheel Centre (Pack of 4)	HY531A096BAPK Badge Wheel Centre (Pack of 4) -Silver	-	1	Enquire
6	CD23360671CA	TPMS Valve and Transmitter	CD23360671CA TPMS Valve and Transmitter -433 MHZ	-	2	Enquire
6	CD23360671DA	TPMS Valve and Transmitter Assy	CD23360671DA TPMS Valve and Transmitter Assy -313 MHZ	-	2	Enquire
6	AD33974747AA	Label, winter tyre	AD33974747AA Label, winter tyre	-	1	Enquire
6	1R123610555	TRANSMITTER DUST CAP SILVER	1R123610555 TRANSMITTER DUST CAP SILVER	-	2	Enquire
6	4G431040AA	Weight, counter balance	4G431040AA Weight, counter balance	-	-	Enquire
