Front Suspension Assembly of Aston Martin Aston Martin Rapide

View All

Aston Martin Rapide - Front Suspension Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD433K186AC	KNL ASY-FRT WHL RH	Enquire	To Order

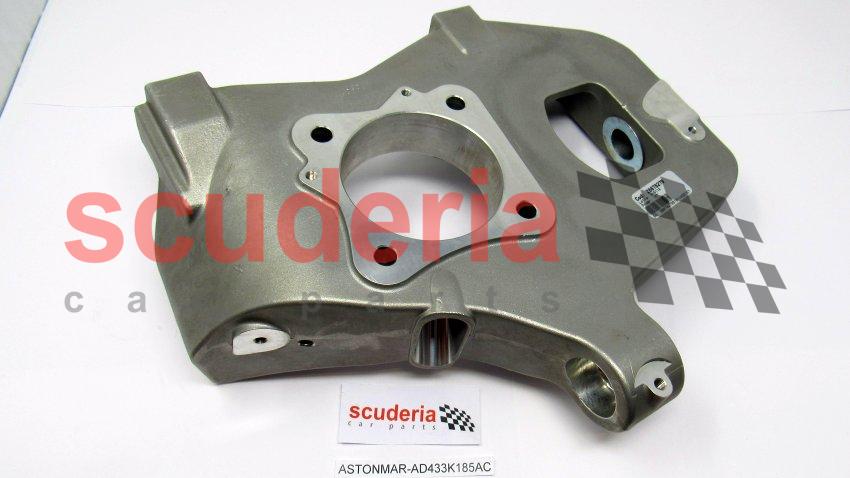

	AD433K185AC	KNL ASY-FRT WHL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432B663AA	Suspension Hub and Bearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG430783AAPK	Screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD433091AA	FRONT SUSPENSION LH UPPER ARM AND BUSH	Enquire	To Order
	AD433084AA	FRONT SUSPENSION RH UPPER ARM AND BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703565	NUT-M12 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD433A052AA	Arm & Bush, Front Suspension Lower, RH	Enquire	To Order
	AD433A053AA	Arm & Bush Front Suspension Lower LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433B236BB	Bolt M12 Eccentric Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433B237BB	Washer, M12, Eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433B236CB	Bolt, M14, eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704596	Nut, M14, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433B237CA	Washer, M14 eccentric	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD430907AA	NUT AND WASHER M14 HEX FL PT PLAS 10	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD433K186AC	KNL ASY-FRT WHL RH	AD433K186AC KNL ASY-FRT WHL RH	-	1	Enquire
1	AD433K185AC	KNL ASY-FRT WHL LH	AD433K185AC KNL ASY-FRT WHL LH	-	1	Enquire
2	AD432B663AA	Suspension Hub and Bearing	AD432B663AA Suspension Hub and Bearing	-	2	Enquire
3	AG430783AAPK	Screw with washer	AG430783AAPK Screw with washer Bearing to Knuckle	-	8	Enquire
4	AD433091AA	FRONT SUSPENSION LH UPPER ARM AND BUSH	AD433091AA FRONT SUSPENSION LH UPPER ARM AND BUSH	-	1	Enquire
4	AD433084AA	FRONT SUSPENSION RH UPPER ARM AND BUSH	AD433084AA FRONT SUSPENSION RH UPPER ARM AND BUSH	-	1	Enquire
5	703565	NUT-M12 HEX FLANGE	703565 NUT-M12 HEX FLANGE	-	8	Enquire
6	CG4308024AA	BOLT M12 X 90 HEXAGON HEAD FLANGED	CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED	-	4	Enquire
7	AD433A052AA	Arm & Bush, Front Suspension Lower, RH	AD433A052AA Arm & Bush, Front Suspension Lower, RH	-	1	Enquire
7	AD433A053AA	Arm & Bush Front Suspension Lower LH	AD433A053AA Arm & Bush Front Suspension Lower LH	-	1	Enquire
8	4G433B236BB	Bolt M12 Eccentric Front	4G433B236BB Bolt M12 Eccentric Front	-	2	Enquire
9	4G433B237BB	Washer, M12, Eccentric	4G433B237BB Washer, M12, Eccentric	-	2	Enquire
10	4G433B236CB	Bolt, M14, eccentric	4G433B236CB Bolt, M14, eccentric	-	2	Enquire
11	704596	Nut, M14, Hex Flange Head	704596 Nut, M14, Hex Flange Head	-	2	Enquire
12	4G433B237CA	Washer, M14 eccentric	4G433B237CA Washer, M14 eccentric	-	2	Enquire
13	AD430907AA	NUT AND WASHER M14 HEX FL PT PLAS 10	AD430907AA NUT AND WASHER M14 HEX FL PT PLAS 10	-	2	Enquire
