Pas Hoses, Cooler & Reservoir- Rhd

Aston Martin One-77

Find Your Part

Aston Martin One-77 - PAS Hoses, Cooler & Reservoir- RHD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433R700AB Reservoir and Cap Assembly Enquire To Order
Photo Part No Description Price (each) Stock
4G4334006AA Cap assy, power steering reservoir Enquire To Order
Photo Part No Description Price (each) Stock
KV12023038358AA Bracket, reservoir Enquire To Order
Photo Part No Description Price (each) Stock
12023038734AA Hose, reservoir to pump hose Enquire To Order
Photo Part No Description Price (each) Stock
699545 HOSE CLAMP OETIKER REF: 025.6 - 706R Enquire To Order
Photo Part No Description Price (each) Stock
12023038732AB Hose, cooler to tank Enquire To Order
Photo Part No Description Price (each) Stock
701349 Clamp, Hose 20 Dia Enquire To Order
Photo Part No Description Price (each) Stock
8D3360155AA CLAMP - PAS HOSE Enquire To Order
Photo Part No Description Price (each) Stock
12023038737AA Hose Assy, cooler to rack assy Enquire To Order
Photo Part No Description Price (each) Stock
4G436C727AA HOSE CLIP (RAYMOND 81442) Enquire To Order
Photo Part No Description Price (each) Stock
12023038742AA Grommet, 18.5 bore Enquire To Order
Photo Part No Description Price (each) Stock
12023038740AA Power Steering Cooler Assy Enquire To Order
Photo Part No Description Price (each) Stock
12023038120AA Attenuation Loop Assy Enquire To Order
Photo Part No Description Price (each) Stock
699711 ‘P Clip, 23 x 15 x M6 Enquire To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free Enquire To Order
Photo Part No Description Price (each) Stock
703141 SCREW M8 x 16 CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
AY933494AA Tube Assy, power steering pump outlet Enquire To Order
View All

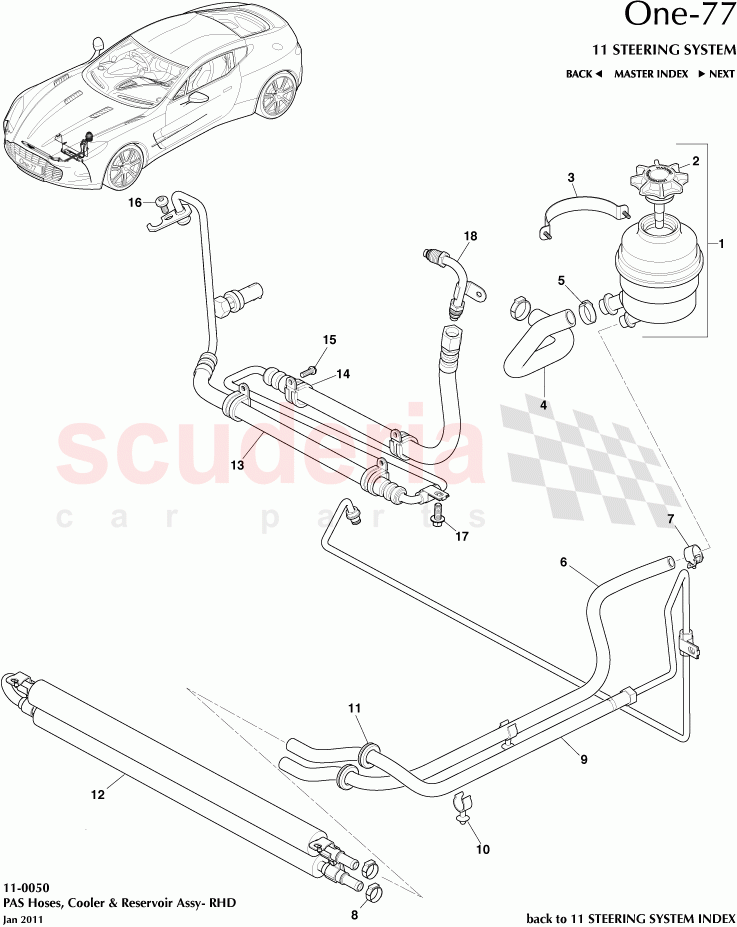

PAS Hoses, Cooler & Reservoir- RHD of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G433R700AB
Reservoir and Cap Assembly 		- 1 Enquire
2 4G4334006AA
Cap assy, power steering reservoir 		- 1 Enquire
3 KV12023038358AA
Bracket, reservoir 		- 1 Enquire
4 12023038734AA
Hose, reservoir to pump hose 		- 1 Enquire
5 699545
HOSE CLAMP OETIKER REF: 025.6 - 706R 		- 2 Enquire
6 12023038732AB
Hose, cooler to tank 		- 1 Enquire
7 701349
Clamp, Hose 20 Dia 		- 1 Enquire
8 8D3360155AA
CLAMP - PAS HOSE 		- 2 Enquire
9 12023038737AA
Hose Assy, cooler to rack assy 		- 1 Enquire
10 4G436C727AA
HOSE CLIP (RAYMOND 81442) 		- 2 Enquire
11 12023038742AA
Grommet, 18.5 bore 		- 2 Enquire
12 12023038740AA
Power Steering Cooler Assy 		- 1 Enquire
13 12023038120AA
Attenuation Loop Assy 		- 1 Enquire
14 699711
‘P Clip, 23 x 15 x M6 		- 4 Enquire
15 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 4 Enquire
16 703141
SCREW M8 x 16 CHROME FREE 		- 1 Enquire
17 703121
Screw, M8 x 25, Hex Flange Head 		- 1 Enquire
18 AY933494AA
Tube Assy, power steering pump outlet
Includes O rings 		- 1 Enquire
