Aston Martin One-77 - Steering Column Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023146850AA Shroud Assy, steering column upper, RHD Enquire To Order
Photo Part No Description Price (each) Stock
12023146852AA Shroud Assy, steering column lower, RHD Enquire To Order
Photo Part No Description Price (each) Stock
8D333E721AB Plate, steering column, load spread Enquire To Order
Photo Part No Description Price (each) Stock
4G433L508AA Insulation, fill plate Enquire To Order
Photo Part No Description Price (each) Stock
703736 Screw Self Tapping, 4.2 x 19, Washer Head Enquire To Order
Photo Part No Description Price (each) Stock
702289 SCREW M4x16 THREAD FORMING Enquire To Order
Photo Part No Description Price (each) Stock
701440 Screw Self Tapping Washer Head 4.2 x 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
AD433C529AB Column Assy, Electric with Isolator Enquire To Order
Photo Part No Description Price (each) Stock
701353 Screw, M8 x 30 Pan Head, Torx Drive Enquire To Order
Photo Part No Description Price (each) Stock
4G433F818AB SNS ASY - STNG ROT Enquire To Order
Photo Part No Description Price (each) Stock
4G43ALR3219BA Bracket, Steering Angle Sensor Mounting Enquire To Order
Photo Part No Description Price (each) Stock
707158 Screw & Washer, M3.5 x 13, Flange Pan Head Enquire To Order
Photo Part No Description Price (each) Stock
4G433D677BA Gaiter, Steering Column, RHD Enquire To Order
Photo Part No Description Price (each) Stock
91963 STEERING COLUMN ASSY Enquire To Order
Photo Part No Description Price (each) Stock
4G433C684AB Bolt, M8 x 30, Hex Head Flange, Patch Enquire To Order
Photo Part No Description Price (each) Stock
703138PK BOLT-M8x25 PATCH CHROME FREE PACK OF 10 Enquire To Order
Photo Part No Description Price (each) Stock
4G433N997BA Coupling, steering column shaft Enquire To Order
Photo Part No Description Price (each) Stock
701355 Screw, M10 x 21.8, Pan Head, Pilot Enquire To Order
View All

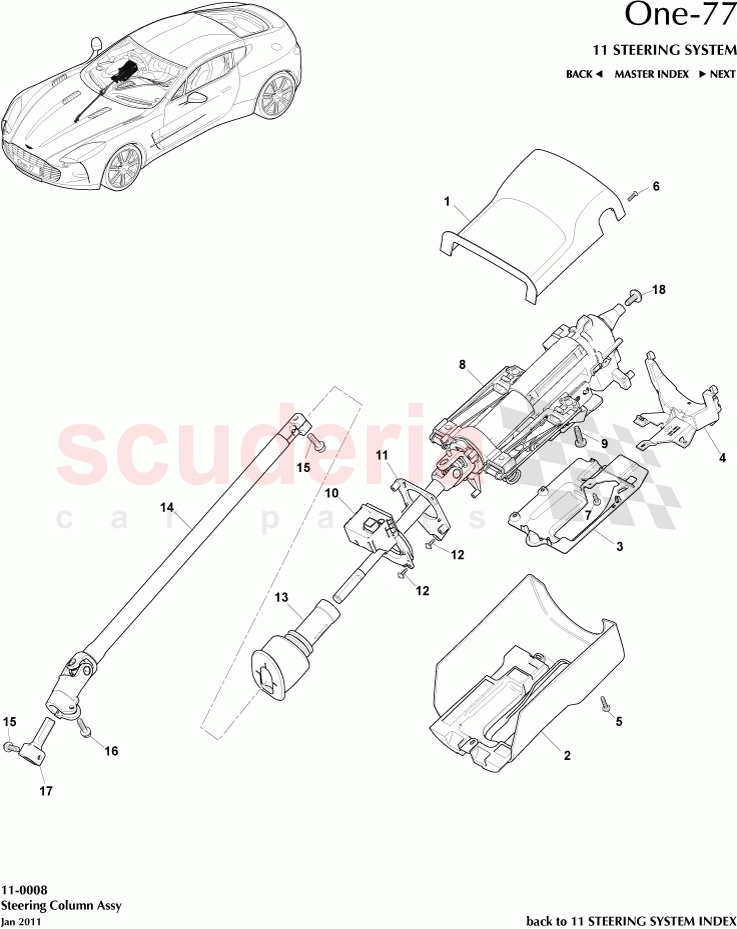

Steering Column Assembly of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G433D677AA
Gaiter, Steering Column, LHD 		- 1 Enquire
- 12023111058AB
Shaft Assy, steering column lower, LHD 		- 1 Enquire
1 12023146850AA
Shroud Assy, steering column upper, RHD 		- 1 Enquire
2 12023146852AA
Shroud Assy, steering column lower, RHD 		- 1 Enquire
3 8D333E721AB
Plate, steering column, load spread 		- 1 Enquire
4 4G433L508AA
Insulation, fill plate
Non Auto 		- 1 Enquire
5 703736
Screw Self Tapping, 4.2 x 19, Washer Head 		- 3 Enquire
6 702289
SCREW M4x16 THREAD FORMING 		- 4 Enquire
7 701440
Screw Self Tapping Washer Head 4.2 x 9.5 		- 1 Enquire
8 AD433C529AB
Column Assy, Electric with Isolator 		- 1 Enquire
9 701353
Screw, M8 x 30 Pan Head, Torx Drive 		- 4 Enquire
10 4G433F818AB
SNS ASY - STNG ROT 		- 1 Enquire
11 4G43ALR3219BA
Bracket, Steering Angle Sensor Mounting 		- 1 Enquire
12 707158
Screw & Washer, M3.5 x 13, Flange Pan Head 		- 1 Enquire
13 4G433D677BA
Gaiter, Steering Column, RHD 		- 1 Enquire
14 91963
STEERING COLUMN ASSY 		- 1 Enquire
15 4G433C684AB
Bolt, M8 x 30, Hex Head Flange, Patch 		- 2 Enquire
16 703138PK
BOLT-M8x25 PATCH CHROME FREE PACK OF 10 		- 1 Enquire
17 4G433N997BA
Coupling, steering column shaft 		- 1 Enquire
18 701355
Screw, M10 x 21.8, Pan Head, Pilot 		- 1 Enquire
