Aston Martin One-77 - Brake Tubes Assembly, RHD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12023037044AB Brake Line, front left B $170.69 To Order
Photo Part No Description Price (each) Stock
12023037040AA Brake Line, front right A Enquire To Order
Photo Part No Description Price (each) Stock
12023037038AA Brake Line, front right B $170.60 To Order
Photo Part No Description Price (each) Stock
12023037042AA Brake Line, front left A $170.60 To Order
Photo Part No Description Price (each) Stock
12023037052AB Brake Line, rear left A $371.62 To Order
Photo Part No Description Price (each) Stock
12023037054AA Brake Line, rear left B $170.60 To Order
Photo Part No Description Price (each) Stock
12023037046AA Brake Line, rear right A $196.88 To Order
Photo Part No Description Price (each) Stock
12023037048AA Brake Line, rear right B $170.60 To Order
Photo Part No Description Price (each) Stock
12023037050AA Brake Line, rear right C $196.88 To Order
Photo Part No Description Price (each) Stock
12023037056AA Brake Line, rear left C $170.60 To Order
Photo Part No Description Price (each) Stock
12023038309AC Brake Line, PC $822.29 To Order
Photo Part No Description Price (each) Stock
12023038311AC Brake Line, SC $640.11 To Order
Photo Part No Description Price (each) Stock
4G43ADU8846AA Clip, Brake Pipe, Triple $4.92 To Order
Photo Part No Description Price (each) Stock
4G4379125A Clip, brake pipe, double Enquire To Order
Photo Part No Description Price (each) Stock
4G4379124AA Clip, Brake Pipe, Single $4.39 To Order
View All

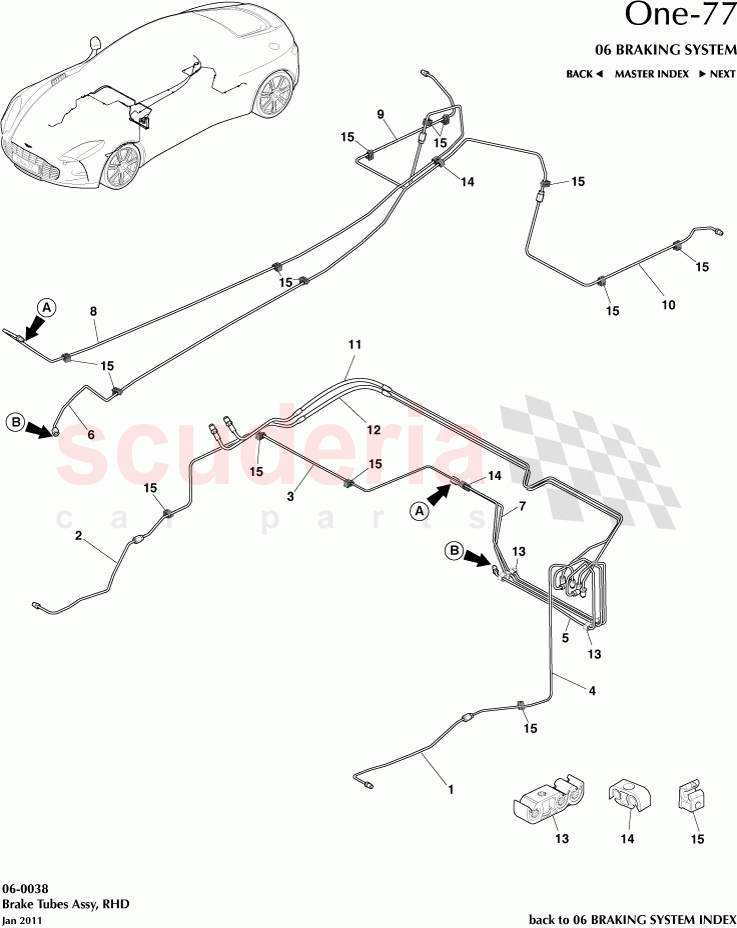

Brake Tubes Assembly, RHD of Aston Martin Aston Martin One-77 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 12023037044AB
Brake Line, front left B 		$170.69 1
2 12023037040AA
Brake Line, front right A 		- 1 Enquire
3 12023037038AA
Brake Line, front right B 		$170.60 1
4 12023037042AA
Brake Line, front left A 		$170.60 1
5 12023037052AB
Brake Line, rear left A 		$371.62 1
6 12023037054AA
Brake Line, rear left B 		$170.60 1
7 12023037046AA
Brake Line, rear right A 		$196.88 1
8 12023037048AA
Brake Line, rear right B 		$170.60 1
9 12023037050AA
Brake Line, rear right C 		$196.88 1
10 12023037056AA
Brake Line, rear left C 		$170.60 1
11 12023038309AC
Brake Line, PC 		$822.29 1
12 12023038311AC
Brake Line, SC 		$640.11 1
13 4G43ADU8846AA
Clip, Brake Pipe, Triple 		$4.92 2
14 4G4379125A
Clip, brake pipe, double 		- 2 Enquire
15 4G4379124AA
Clip, Brake Pipe, Single 		$4.39 14
