Rear Brake Assembly of Aston Martin Aston Martin One-77

View All

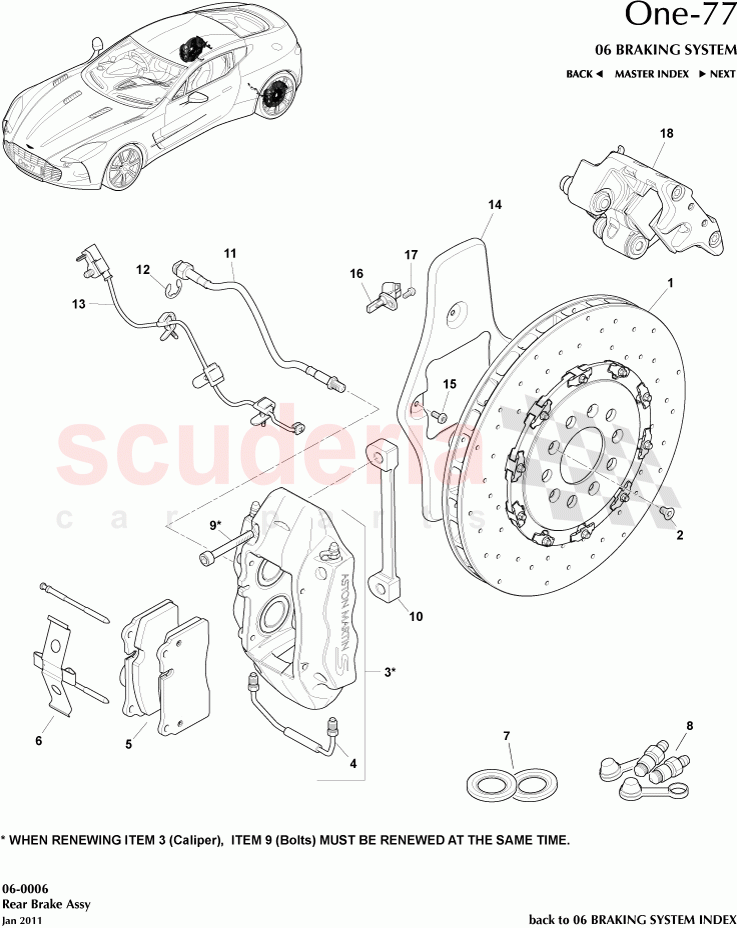

Aston Martin One-77 - Rear Brake Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY932C026AA	Brake Disc, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY932810008	Caliper,Rear LH, without pads inc bolts	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332C562BB	BRAKE PAD KIT REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332C588BA	KIT PAD SPRING AND PIN REAR (PER CALIPER)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3332610AA	Kit, Dust Boot, Rear Caliper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432C563AA	Kit, Bleed Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332B128AB	Spacer, caliper to knuckle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332282AC	Hose, Rear Wheel Brake	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33JYC10088AB	E Clip Bowed, Nom 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332D009AB	Pad Wear Lead, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332C029AA	SHIELD - REAR BRAKE DISC LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026AA	Screw, retaining disc shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439010039	Sensor, Wheel Speed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4313D026BA	Screw, wheel speed sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD432K328BA	Caliper Assy, Parkbrake LH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY932810009	Caliper,Rear RH, without pads inc bolts	AY932810009 Caliper,Rear RH, without pads inc bolts Special order, contact with VIN	-	1	Enquire
-	AY932C465AA	Caliper,Rear LH, without pads inc bolts	AY932C465AA Caliper,Rear LH, without pads inc bolts Grey	-	1	Enquire
-	AY932C464AA	Caliper,Rear RH, without pads inc bolts	AY932C464AA Caliper,Rear RH, without pads inc bolts Grey	-	1	Enquire
-	AY932C465CA	Caliper,Rear LH, without pads inc bolts	AY932C465CA Caliper,Rear LH, without pads inc bolts Black	-	1	Enquire
-	AY932C464CA	Caliper,Rear RH, without pads inc bolts	AY932C464CA Caliper,Rear RH, without pads inc bolts Black	-	1	Enquire
-	AY932C465DA	Caliper,Rear LH, without pads inc bolts	AY932C465DA Caliper,Rear LH, without pads inc bolts Red	-	1	Enquire
-	AY932C464DA	Caliper,Rear RH, without pads inc bolts	AY932C464DA Caliper,Rear RH, without pads inc bolts Red	-	1	Enquire
-	AY932C465EA	Caliper,Rear LH, without pads inc bolts	AY932C465EA Caliper,Rear LH, without pads inc bolts Silver	-	1	Enquire
-	AY932C464EA	Caliper,Rear RH, without pads inc bolts	AY932C464EA Caliper,Rear RH, without pads inc bolts Silver	-	1	Enquire
-	4G4333693AA	Cap, Bleed Screw	4G4333693AA Cap, Bleed Screw Per caliper	-	1	Enquire
-	8D332C028AA	SHIELD - REAR BRAKE DISC RH	8D332C028AA SHIELD - REAR BRAKE DISC RH	-	1	Enquire
-	AD432K327BA	Caliper Assy, Parkbrake RH	AD432K327BA Caliper Assy, Parkbrake RH	-	1	Enquire
-	4G432C564CA	Bolt M10x87 Hex flange, secures EPB	4G432C564CA Bolt M10x87 Hex flange, secures EPB	-	1	Enquire
1	AY932C026AA	Brake Disc, Rear	AY932C026AA Brake Disc, Rear	-	1	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Head Countersunk	4G432N389AA Screw, M8 x 14, Flat Head Countersunk	-	2	Enquire
3	AY932810008	Caliper,Rear LH, without pads inc bolts	AY932810008 Caliper,Rear LH, without pads inc bolts Special order, contact with VIN	-	1	Enquire
4	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right	-	1	Enquire
5	8D332C562BB	BRAKE PAD KIT REAR	8D332C562BB BRAKE PAD KIT REAR Per axle set	-	1	Enquire
6	8D332C588BA	KIT PAD SPRING AND PIN REAR (PER CALIPER)	8D332C588BA KIT PAD SPRING AND PIN REAR (PER CALIPER) Per caliper	-	1	Enquire
7	8D3332610AA	Kit, Dust Boot, Rear Caliper	8D3332610AA Kit, Dust Boot, Rear Caliper Per caliper	-	2	Enquire
8	4G432C563AA	Kit, Bleed Screw	4G432C563AA Kit, Bleed Screw Per caliper	-	2	Enquire
9	8D332C564AA	Brake Bolt, M12 x 95, Caliper to Knuckle	8D332C564AA Brake Bolt, M12 x 95, Caliper to Knuckle	-	2	Enquire
10	8D332B128AB	Spacer, caliper to knuckle	8D332B128AB Spacer, caliper to knuckle	-	1	Enquire
11	6G332282AC	Hose, Rear Wheel Brake	6G332282AC Hose, Rear Wheel Brake	-	1	Enquire
12	6G33JYC10088AB	E Clip Bowed, Nom 16mm	6G33JYC10088AB E Clip Bowed, Nom 16mm	-	1	Enquire
13	6G332D009AB	Pad Wear Lead, Rear	6G332D009AB Pad Wear Lead, Rear	-	1	Enquire
14	8D332C029AA	SHIELD - REAR BRAKE DISC LH	8D332C029AA SHIELD - REAR BRAKE DISC LH	-	1	Enquire
15	4G4313D026AA	Screw, retaining disc shield	4G4313D026AA Screw, retaining disc shield	-	4	Enquire
16	4G439010039	Sensor, Wheel Speed	4G439010039 Sensor, Wheel Speed	-	1	Enquire
17	4G4313D026BA	Screw, wheel speed sensor	4G4313D026BA Screw, wheel speed sensor	-	1	Enquire
18	AD432K328BA	Caliper Assy, Parkbrake LH	AD432K328BA Caliper Assy, Parkbrake LH	-	1	Enquire
