Clutch & Flywheel Assembly of Aston Martin Aston Martin One-77

View All

Aston Martin One-77 - Clutch & Flywheel Assembly

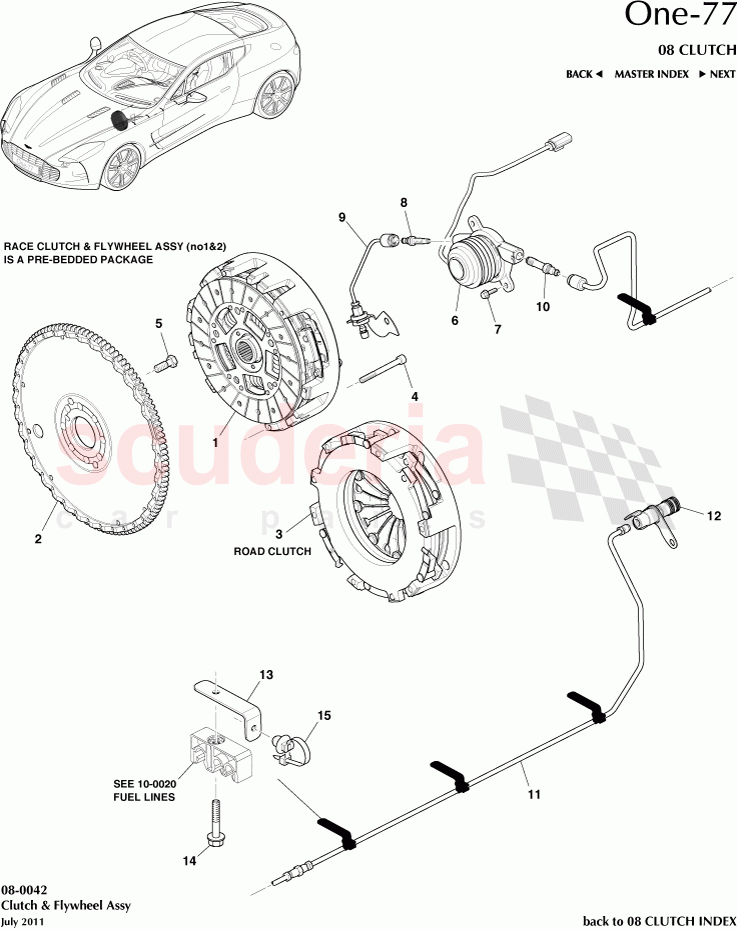

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY937C545AA	Clutch and Flywheel assy, twin plate O/D 215mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY936375BB	FLYWHEEL 215 OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD237540AB	CLUTCH ASSENBLY, TWIN PLATE 215MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23CD60AA	Bolt, M6 x 1.0 x 75, Socket Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337A564AA	Cylinder Slave Clutch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337K640CA	Connector assy, Bleeder	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	AY937H552AA	Pipe assy, Bleeder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337K640DA	Connector assy, Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY237K502AA	Tube assy, Clutch Master Cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337J200AB	BRACKET ASSY CLUTCH TUBE ASSY ASM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY23R7N630AA	Bracket, Clutch Pipe Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG3319233BA	Screw M5x35 hex flg	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43619B00AA	TIE WRAP - 200MM X 4.6MM WITH FIR TREE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AY937C545AA	Clutch and Flywheel assy, twin plate O/D 215mm	AY937C545AA Clutch and Flywheel assy, twin plate O/D 215mm RACE CLUTCH- Pre-bedded	-	1	Enquire
2	AY936375BB	FLYWHEEL 215 OD	AY936375BB FLYWHEEL 215 OD	-	1	Enquire
3	AD237540AB	CLUTCH ASSENBLY, TWIN PLATE 215MM	AD237540AB CLUTCH ASSENBLY, TWIN PLATE 215MM ROAD CLUTCH- Un-bedded	-	1	Enquire
4	AD23CD60AA	Bolt, M6 x 1.0 x 75, Socket Head	AD23CD60AA Bolt, M6 x 1.0 x 75, Socket Head Clutch to Flywheel	-	9	Enquire
5	697748	Plug-Oil Pan Drain	697748 Plug-Oil Pan Drain Flywheel to Crank	-	8	Enquire
6	BG337A564AA	Cylinder Slave Clutch	BG337A564AA Cylinder Slave Clutch	-	1	Enquire
7	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free CSC to T/T hsg	-	2	Enquire
8	6G337K640CA	Connector assy, Bleeder ARRIVING SOON	6G337K640CA Connector assy, Bleeder ARRIVING SOON	-	1	Enquire
9	AY937H552AA	Pipe assy, Bleeder	AY937H552AA Pipe assy, Bleeder	-	1	Enquire
10	6G337K640DA	Connector assy, Pressure	6G337K640DA Connector assy, Pressure	-	1	Enquire
11	AY237K502AA	Tube assy, Clutch Master Cylinder	AY237K502AA Tube assy, Clutch Master Cylinder	-	1	Enquire
12	6G337J200AB	BRACKET ASSY CLUTCH TUBE ASSY ASM	6G337J200AB BRACKET ASSY CLUTCH TUBE ASSY ASM	-	1	Enquire
13	AY23R7N630AA	Bracket, Clutch Pipe Mounting	AY23R7N630AA Bracket, Clutch Pipe Mounting	-	5	Enquire
14	BG3319233BA	Screw M5x35 hex flg	BG3319233BA Screw M5x35 hex flg Fuel Pipe Clip to Torque Tube	-	5	Enquire
15	4G43619B00AA	TIE WRAP - 200MM X 4.6MM WITH FIR TREE	4G43619B00AA TIE WRAP - 200MM X 4.6MM WITH FIR TREE	-	5	Enquire
