Transaxle Assembly of Aston Martin Aston Martin One-77

View All

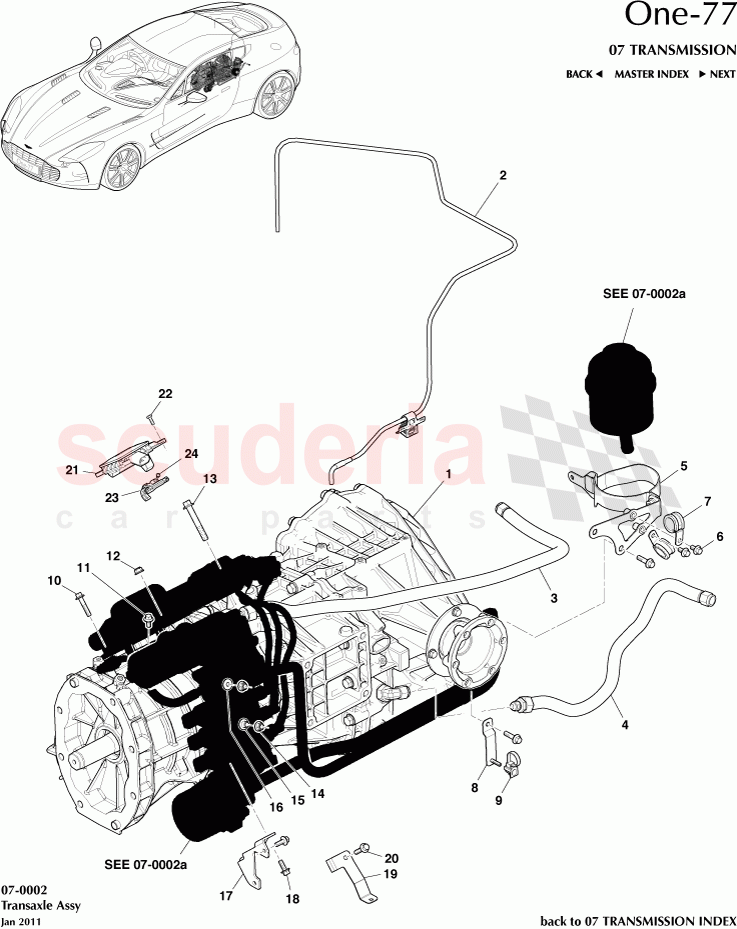

Aston Martin One-77 - Transaxle Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY937002AA	Transaxle assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038654AB	Breather assy, Transaxle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038572AE	Pipe, Transaxle Cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038574AE	Pipe, Transaxle Cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038356AC	Bracket, ASM Resevoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702535	Screw M6x12 hex flg hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699699	'P' CLIP - 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023038576AD	Bracket, ASM Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33180107D445	Retainer, Hellerman 20mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337J039BA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337J039AA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L564BB	ASM HYDRAULIC PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L564AC	ASM HYDRAULIC PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337J269AC	SENSOR TRANSMISSION ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702959	SCREW M4x12 PAN HEAD 6 LOBE TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337J282AC	MAGNET ASSY - TRANMISSION ACTUATOR POSN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33505066AC	Screw, M3 x 6, button head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AY937002AA	Transaxle assy	AY937002AA Transaxle assy	-	1	Enquire
2	12023038654AB	Breather assy, Transaxle	12023038654AB Breather assy, Transaxle	-	1	Enquire
3	12023038572AE	Pipe, Transaxle Cooler	12023038572AE Pipe, Transaxle Cooler	-	1	Enquire
4	12023038574AE	Pipe, Transaxle Cooler	12023038574AE Pipe, Transaxle Cooler	-	1	Enquire
5	12023038356AC	Bracket, ASM Resevoir	12023038356AC Bracket, ASM Resevoir	-	1	Enquire
6	702535	Screw M6x12 hex flg hd	702535 Screw M6x12 hex flg hd	-	2	Enquire
7	699699	'P' CLIP - 16	699699 'P' CLIP - 16	-	2	Enquire
8	12023038576AD	Bracket, ASM Pipe	12023038576AD Bracket, ASM Pipe	-	1	Enquire
9	8D33180107D445	Retainer, Hellerman 20mm	8D33180107D445 Retainer, Hellerman 20mm ASM Pipe	-	1	Enquire
10	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free	-	5	Enquire
11	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	1	Enquire
12	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	1	Enquire
13	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	-	1	Enquire
14	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	3	Enquire
15	6G337J039BA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	6G337J039BA ISOLATOR - TRANS SHIFT CONTROL MOUNTING	-	2	Enquire
16	6G337J039AA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	6G337J039AA ISOLATOR - TRANS SHIFT CONTROL MOUNTING	-	1	Enquire
17	6G337L564BB	ASM HYDRAULIC PUMP BRACKET	6G337L564BB ASM HYDRAULIC PUMP BRACKET	-	1	Enquire
18	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	4	Enquire
19	6G337L564AC	ASM HYDRAULIC PUMP BRACKET	6G337L564AC ASM HYDRAULIC PUMP BRACKET	-	1	Enquire
20	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	1	Enquire
21	6G337J269AC	SENSOR TRANSMISSION ACTUATOR	6G337J269AC SENSOR TRANSMISSION ACTUATOR	-	1	Enquire
22	702959	SCREW M4x12 PAN HEAD 6 LOBE TORX	702959 SCREW M4x12 PAN HEAD 6 LOBE TORX Trans Actuator Pos. Sensor	-	4	Enquire
23	6G337J282AC	MAGNET ASSY - TRANMISSION ACTUATOR POSN	6G337J282AC MAGNET ASSY - TRANMISSION ACTUATOR POSN	-	1	Enquire
24	6G33505066AC	Screw, M3 x 6, button head	6G33505066AC Screw, M3 x 6, button head	-	1	Enquire
