Sparco Seat Assembly of Aston Martin Aston Martin One-77

View All

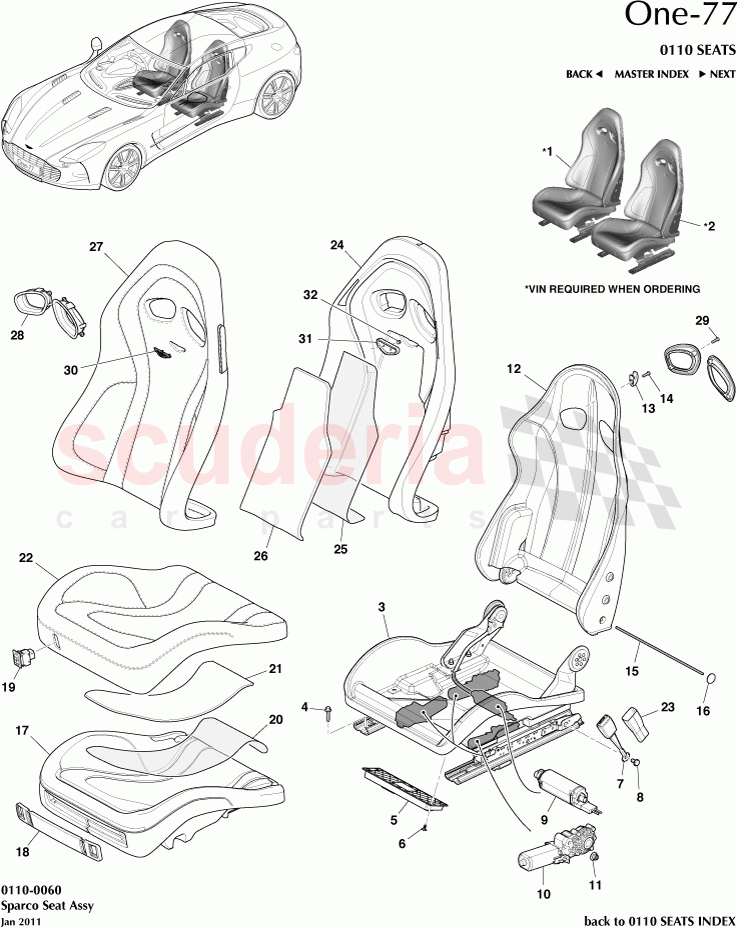

Aston Martin One-77 - Sparco Seat Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12023146741AG	Front seat, trimmed assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146742AH	Front seat, trimmed assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146709AB	Seat Base assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702526	Bolt M8 x 30 Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	92059	SEAT ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43613K22BD	Buckle Assembly, Front Seatbelt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146414AC	Motor assy, Seat Incline	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410127	Kit, Squab Motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146744AA	Shell, Seat Back RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4318564AA	Hook, Coat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33SS106209AB	Bolt, M6 x 20, Skt Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146713AA	Rod, Connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023145045	Cover, Connector Rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146630AA	Foam, Seat Base	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146587AA	Housing, Seat Strap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY9314D764AA	Switch, Heated Seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314D698AC	Element, Seat Base Heater	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146712AA	Foam Insert, Seat Base	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146408ACW	Cover assy, Front Seat Cushion	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146564AAW	Cover, Seat Belt Buckle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146632AG	Foam, Seat Back	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146704AA	Element, Seat Back Heater	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146705AA	Foam Insert, Seat Back	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023145038ACW	Cover assy, Front Seat Squab RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSS	Seat Belt Loops Frt/ Rear and Left/Right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704509	Screw M4x8 Pan hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146570AA	Badge, Seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146571AC	Back plate, Seat Badge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707620	Nut-M4 HEX FLANGED	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	12023146703AA	Shell, Seat Back LH	12023146703AA Shell, Seat Back LH	-	1	Enquire
-	12023146715AA	Circlip	12023146715AA Circlip 2 per seat assy	-	4	Enquire
-	12023146717AA	Loctite	12023146717AA Loctite Seat Belt Cover	-	A/R	Enquire
-	12023146406ACW	Cover assy, Front Seat Squab LHS	12023146406ACW Cover assy, Front Seat Squab LHS	-	1	Enquire
-	610207095	Tape, Double Sided	610207095 Tape, Double Sided	-	A/R	Enquire
-	610260051	Velcro Loop	610260051 Velcro Loop	-	A/R	Enquire
-	610260050	Velcro Hook	610260050 Velcro Hook	-	A/R	Enquire
-	610260105	Velcro Loop (White)	610260105 Velcro Loop (White)	-	A/R	Enquire
-	61026024	Velcro Loop 50x10mm	61026024 Velcro Loop 50x10mm	-	A/R	Enquire
-	4G436021AB	Clip, Seat Edge Fixing	4G436021AB Clip, Seat Edge Fixing 16 per seat assy	-	32	Enquire
-	12023146410AB	Seat belt loop, Left hand front	12023146410AB Seat belt loop, Left hand front Grey	-	1	Enquire
-	12023146410BB	Seat belt loop, Left hand front	12023146410BB Seat belt loop, Left hand front Silver	-	1	Enquire
-	12023146410CB	Seat belt loop, Left hand front	12023146410CB Seat belt loop, Left hand front Black	-	1	Enquire
-	12023146410DB	Seat belt loop, Left hand front	12023146410DB Seat belt loop, Left hand front Blue	-	1	Enquire
-	12023146410EB	Seat belt loop, Left hand front	12023146410EB Seat belt loop, Left hand front Grey/ Ruthenium	-	1	Enquire
-	12023146410FB	Seat belt loop, Left hand front	12023146410FB Seat belt loop, Left hand front Silver/ Ruthenium	-	1	Enquire
-	12023146410GB	Seat belt loop, Left hand front	12023146410GB Seat belt loop, Left hand front Black/ Ruthenium	-	1	Enquire
-	12023146410HB	Seat belt loop, Left hand front	12023146410HB Seat belt loop, Left hand front Blue/ Ruthenium	-	1	Enquire
-	12023146410JB	Seat belt loop, Left hand front	12023146410JB Seat belt loop, Left hand front Grey/ Gold	-	1	Enquire
-	12023146410KB	Seat belt loop, Left hand front	12023146410KB Seat belt loop, Left hand front Silver/ Gold	-	1	Enquire
-	12023146410LB	Seat belt loop, Left hand front	12023146410LB Seat belt loop, Left hand front Black/ Gold	-	1	Enquire
-	12023146410MB	Seat belt loop, Left hand front	12023146410MB Seat belt loop, Left hand front Blue/ Gold	-	1	Enquire
-	12023146410NB	Seat belt loop, Left hand front	12023146410NB Seat belt loop, Left hand front Grey/ Chrome	-	1	Enquire
-	12023146410PB	Seat belt loop, Left hand front	12023146410PB Seat belt loop, Left hand front Silver/ Chrome	-	1	Enquire
-	12023146410RB	Seat belt loop, Left hand front	12023146410RB Seat belt loop, Left hand front Black/ Chrome	-	1	Enquire
-	12023146410SB	Seat belt loop, Left hand front	12023146410SB Seat belt loop, Left hand front Blue/ Chrome	-	1	Enquire
-	12023146411AB	Seat belt loop, Right hand front	12023146411AB Seat belt loop, Right hand front Grey	-	1	Enquire
-	12023146411BB	Seat belt loop, Right hand front	12023146411BB Seat belt loop, Right hand front Silver	-	1	Enquire
-	12023146411CB	Seat belt loop, Right hand front	12023146411CB Seat belt loop, Right hand front Black	-	1	Enquire
-	12023146411DB	Seat belt loop, Right hand front	12023146411DB Seat belt loop, Right hand front Blue	-	1	Enquire
-	12023146411EB	Seat belt loop, Right hand front	12023146411EB Seat belt loop, Right hand front Grey/ Ruthenium	-	1	Enquire
-	12023146411FB	Seat belt loop, Right hand front	12023146411FB Seat belt loop, Right hand front Silver/ Ruthenium	-	1	Enquire
-	12023146411GB	Seat belt loop, Right hand front	12023146411GB Seat belt loop, Right hand front Black/ Ruthenium	-	1	Enquire
-	12023146411HB	Seat belt loop, Right hand front	12023146411HB Seat belt loop, Right hand front Blue/ Ruthenium	-	1	Enquire
-	12023146411JB	Seat belt loop, Right hand front	12023146411JB Seat belt loop, Right hand front Grey/ Gold	-	1	Enquire
-	12023146411KB	Seat belt loop, Right hand front	12023146411KB Seat belt loop, Right hand front Silver/ Gold	-	1	Enquire
-	12023146411LB	Seat belt loop, Right hand front	12023146411LB Seat belt loop, Right hand front Black/ Gold	-	1	Enquire
-	12023146411MB	Seat belt loop, Right hand front	12023146411MB Seat belt loop, Right hand front Blue/ Gold	-	1	Enquire
-	12023146411NB	Seat belt loop, Right hand front	12023146411NB Seat belt loop, Right hand front Grey/ Chrome	-	1	Enquire
-	12023146411PB	Seat belt loop, Right hand front	12023146411PB Seat belt loop, Right hand front Silver/ Chrome	-	1	Enquire
-	12023146411RB	Seat belt loop, Right hand front	12023146411RB Seat belt loop, Right hand front Black/ Chrome	-	1	Enquire
-	12023146411SB	Seat belt loop, Right hand front	12023146411SB Seat belt loop, Right hand front Blue/ Chrome	-	1	Enquire
-	12023146412AC	Seat belt loop, Left hand rear	12023146412AC Seat belt loop, Left hand rear Grey	-	1	Enquire
-	12023146412BC	Seat belt loop, Left hand rear	12023146412BC Seat belt loop, Left hand rear Silver	-	1	Enquire
-	12023146412CC	Seat belt loop, Left hand rear	12023146412CC Seat belt loop, Left hand rear Black	-	1	Enquire
-	12023146412DC	Seat belt loop, Left hand rear	12023146412DC Seat belt loop, Left hand rear Blue	-	1	Enquire
-	12023146412EC	Seat belt loop, Left hand rear	12023146412EC Seat belt loop, Left hand rear Grey/ Ruthenium	-	1	Enquire
-	12023146412FC	Seat belt loop, Left hand rear	12023146412FC Seat belt loop, Left hand rear Silver/ Ruthenium	-	1	Enquire
-	12023146412GC	Seat belt loop, Left hand rear	12023146412GC Seat belt loop, Left hand rear Black/ Ruthenium	-	1	Enquire
-	12023146412HC	Seat belt loop, Left hand rear	12023146412HC Seat belt loop, Left hand rear Blue/ Ruthenium	-	1	Enquire
-	12023146412JC	Seat belt loop, Left hand rear	12023146412JC Seat belt loop, Left hand rear Grey/ Gold	-	1	Enquire
-	12023146412KC	Seat belt loop, Left hand rear	12023146412KC Seat belt loop, Left hand rear Silver/ Gold	-	1	Enquire
-	12023146412LC	Seat belt loop, Left hand rear	12023146412LC Seat belt loop, Left hand rear Black/ Gold	-	1	Enquire
-	12023146412MC	Seat belt loop, Left hand rear	12023146412MC Seat belt loop, Left hand rear Blue/ Gold	-	1	Enquire
-	12023146412NC	Seat belt loop, Left hand rear	12023146412NC Seat belt loop, Left hand rear Grey/ Chrome	-	1	Enquire
-	12023146412PC	Seat belt loop, Left hand rear	12023146412PC Seat belt loop, Left hand rear Silver/ Chrome	-	1	Enquire
-	12023146412RC	Seat belt loop, Left hand rear	12023146412RC Seat belt loop, Left hand rear Black/ Chrome	-	1	Enquire
-	12023146412SC	Seat belt loop, Left hand rear	12023146412SC Seat belt loop, Left hand rear Blue/ Chrome	-	1	Enquire
-	12023146413AC	Seat belt loop, Right hand rear	12023146413AC Seat belt loop, Right hand rear Grey	-	1	Enquire
-	12023146413BC	Seat belt loop, Right hand rear	12023146413BC Seat belt loop, Right hand rear Silver	-	1	Enquire
-	12023146413CC	Seat belt loop, Right hand rear	12023146413CC Seat belt loop, Right hand rear Black	-	1	Enquire
-	12023146413DC	Seat belt loop, Right hand rear	12023146413DC Seat belt loop, Right hand rear Blue	-	1	Enquire
-	12023146413EC	Seat belt loop, Right hand rear	12023146413EC Seat belt loop, Right hand rear Grey/ Ruthenium	-	1	Enquire
-	12023146413FC	Seat belt loop, Right hand rear	12023146413FC Seat belt loop, Right hand rear Silver/ Ruthenium	-	1	Enquire
-	12023146413GC	Seat belt loop, Right hand rear	12023146413GC Seat belt loop, Right hand rear Black/ Ruthenium	-	1	Enquire
-	12023146413HC	Seat belt loop, Right hand rear	12023146413HC Seat belt loop, Right hand rear Blue/ Ruthenium	-	1	Enquire
-	12023146413JC	Seat belt loop, Right hand rear	12023146413JC Seat belt loop, Right hand rear Grey/ Gold	-	1	Enquire
-	12023146413KC	Seat belt loop, Right hand rear	12023146413KC Seat belt loop, Right hand rear Silver/ Gold	-	1	Enquire
-	12023146413LC	Seat belt loop, Right hand rear	12023146413LC Seat belt loop, Right hand rear Black/ Gold	-	1	Enquire
-	12023146413MC	Seat belt loop, Right hand rear	12023146413MC Seat belt loop, Right hand rear Blue/ Gold	-	1	Enquire
-	12023146413NC	Seat belt loop, Right hand rear	12023146413NC Seat belt loop, Right hand rear Grey/ Chrome	-	1	Enquire
-	12023146413PC	Seat belt loop, Right hand rear	12023146413PC Seat belt loop, Right hand rear Silver/ Chrome	-	1	Enquire
-	12023146413RC	Seat belt loop, Right hand rear	12023146413RC Seat belt loop, Right hand rear Black/ Chrome	-	1	Enquire
-	12023146413SC	Seat belt loop, Right hand rear	12023146413SC Seat belt loop, Right hand rear Blue/ Chrome	-	1	Enquire
1	12023146741AG	Front seat, trimmed assy	12023146741AG Front seat, trimmed assy order by VIN no.	-	1	Enquire
2	12023146742AH	Front seat, trimmed assy	12023146742AH Front seat, trimmed assy order by VIN no.	-	1	Enquire
3	12023146709AB	Seat Base assy	12023146709AB Seat Base assy 1 per seat assy	-	2	Enquire
4	702526	Bolt M8 x 30 Hex Flange Head	702526 Bolt M8 x 30 Hex Flange Head 4 per seat assy	-	8	Enquire
5	92059	SEAT ECU	92059 SEAT ECU 1 per seat assy	-	2	Enquire
6	701581PK	FIRTREE-FLAT HEAD (PACK OF 20)	701581PK FIRTREE-FLAT HEAD (PACK OF 20) 4 per seat assy	-	8	Enquire
7	4G43613K22BD	Buckle Assembly, Front Seatbelt	4G43613K22BD Buckle Assembly, Front Seatbelt 1 per seat assy	-	2	Enquire
8	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right 1 per seat assy	-	2	Enquire
9	12023146414AC	Motor assy, Seat Incline	12023146414AC Motor assy, Seat Incline 1 per seat base assy	-	2	Enquire
10	4G437410127	Kit, Squab Motor	4G437410127 Kit, Squab Motor 3 per seat base assy	-	6	Enquire
12	12023146744AA	Shell, Seat Back RH	12023146744AA Shell, Seat Back RH	-	1	Enquire
13	9G4318564AA	Hook, Coat	9G4318564AA Hook, Coat 1 per seat assy	-	2	Enquire
14	6G33SS106209AB	Bolt, M6 x 20, Skt Hd	6G33SS106209AB Bolt, M6 x 20, Skt Hd 1 per seat assy	-	2	Enquire
15	12023146713AA	Rod, Connector	12023146713AA Rod, Connector 1 per seat assy	-	2	Enquire
16	12023145045	Cover, Connector Rod	12023145045 Cover, Connector Rod 2 per seat assy	-	4	Enquire
17	12023146630AA	Foam, Seat Base	12023146630AA Foam, Seat Base 1 per seat assy	-	2	Enquire
18	12023146587AA	Housing, Seat Strap	12023146587AA Housing, Seat Strap 1 per seat assy	-	2	Enquire
19	AY9314D764AA	Switch, Heated Seat	AY9314D764AA Switch, Heated Seat 1 per seat assy	-	2	Enquire
20	7G4314D698AC	Element, Seat Base Heater	7G4314D698AC Element, Seat Base Heater 1 per seat assy	-	2	Enquire
21	12023146712AA	Foam Insert, Seat Base	12023146712AA Foam Insert, Seat Base 1 per seat assy	-	2	Enquire
22	12023146408ACW	Cover assy, Front Seat Cushion	12023146408ACW Cover assy, Front Seat Cushion 1 per seat assy	-	2	Enquire
23	12023146564AAW	Cover, Seat Belt Buckle	12023146564AAW Cover, Seat Belt Buckle 1 per seat assy	-	2	Enquire
24	12023146632AG	Foam, Seat Back	12023146632AG Foam, Seat Back 1 per seat assy	-	2	Enquire
25	12023146704AA	Element, Seat Back Heater	12023146704AA Element, Seat Back Heater 1 per seat assy	-	2	Enquire
26	12023146705AA	Foam Insert, Seat Back	12023146705AA Foam Insert, Seat Back 1 per seat assy	-	2	Enquire
27	12023145038ACW	Cover assy, Front Seat Squab RHS	12023145038ACW Cover assy, Front Seat Squab RHS	-	1	Enquire
28	NSS	Seat Belt Loops Frt/ Rear and Left/Right	NSS Seat Belt Loops Frt/ Rear and Left/Right NB see individual parts listed below	-	2	Enquire
29	704509	Screw M4x8 Pan hd	704509 Screw M4x8 Pan hd 4 per seat belt loop kit	-	8	Enquire
30	12023146570AA	Badge, Seat	12023146570AA Badge, Seat 1 per seat assy	-	2	Enquire
31	12023146571AC	Back plate, Seat Badge	12023146571AC Back plate, Seat Badge 1 per seat assy	-	2	Enquire
32	707620	Nut-M4 HEX FLANGED	707620 Nut-M4 HEX FLANGED 2 per seat badge	-	4	Enquire
