Cabin Interior, Lower of Aston Martin Aston Martin One-77

View All

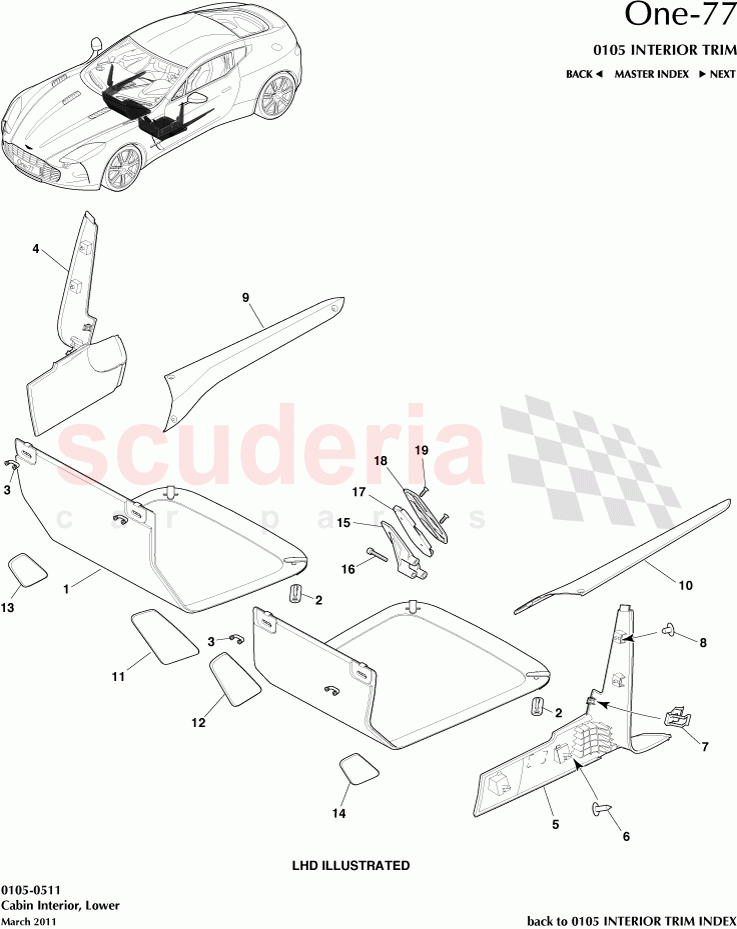

Aston Martin One-77 - Cabin Interior, Lower

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY938310003	Floor Mat Assy, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146474AC	Retention Assy, floor mat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146476AC	Retention Hoop Assy, floor mat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146235AE	Cowl Side Trim Assy, Passenger Side, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146234AG	Cowl Side Trim Assy, Drivers Side, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146488AA	Fastener, Fir Tree	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146421AC	Sill Scuff Plate, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146420AC	Sill Scuff Plate, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146471AA	Scuff Plate, Inboard, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146469AA	Scuff Plate, Inboard, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146470AA	Scuff Plate, Outboard, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146468AA	Scuff Plate, Outboard, LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146530TA	Foot-rest mount, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439912553AA	BOLT M8 X 80 CAP SKT HD GD 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146532AC	Rubber, Foot-rest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12023146528TA	Plate, Foot-rest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	704336	BOLT-M6x20 FC T1ADH8	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY938310004	Floor Mat Assy, RHD	AY938310004 Floor Mat Assy, RHD -VIN and colour details required with order	-	1	Enquire
-	12023146665AC	Cowl Side Trim Assy, Passenger Side, RHD	12023146665AC Cowl Side Trim Assy, Passenger Side, RHD	-	1	Enquire
-	12023146664AB	Cowl Side Trim Assy, Drivers Side, RHD	12023146664AB Cowl Side Trim Assy, Drivers Side, RHD	-	1	Enquire
-	12023146421BC	Sill Scuff Plate, RH	12023146421BC Sill Scuff Plate, RH Silver	-	1	Enquire
-	12023146421CC	Sill Scuff Plate, RH	12023146421CC Sill Scuff Plate, RH Black	-	1	Enquire
-	12023146421DC	Sill Scuff Plate, RH	12023146421DC Sill Scuff Plate, RH Blue	-	1	Enquire
-	12023146421EC	Sill Scuff Plate, RH	12023146421EC Sill Scuff Plate, RH Grey & Dark Ruthanium	-	1	Enquire
-	12023146421FC	Sill Scuff Plate, RH	12023146421FC Sill Scuff Plate, RH Silver & Dark Ruthanium	-	1	Enquire
-	12023146421GC	Sill Scuff Plate, RH	12023146421GC Sill Scuff Plate, RH Black & Dark Ruthanium	-	1	Enquire
-	12023146421HC	Sill Scuff Plate, RH	12023146421HC Sill Scuff Plate, RH Blue & Dark Ruthanium	-	1	Enquire
-	12023146421JC	Sill Scuff Plate, RH	12023146421JC Sill Scuff Plate, RH Grey & amp; Rose Gold	-	1	Enquire
-	12023146421KC	Sill Scuff Plate, RH	12023146421KC Sill Scuff Plate, RH Silver & amp; Rose Gold	-	1	Enquire
-	12023146421LC	Sill Scuff Plate, RH	12023146421LC Sill Scuff Plate, RH Black & amp; Rose Gold	-	1	Enquire
-	12023146421MC	Sill Scuff Plate, RH	12023146421MC Sill Scuff Plate, RH Blue & amp; Rose Gold	-	1	Enquire
-	12023146421NC	Sill Scuff Plate, RH	12023146421NC Sill Scuff Plate, RH Grey & amp; High gloss	-	1	Enquire
-	12023146421PC	Sill Scuff Plate, RH	12023146421PC Sill Scuff Plate, RH Silver & amp; High gloss	-	1	Enquire
-	12023146421RC	Sill Scuff Plate, RH	12023146421RC Sill Scuff Plate, RH Black & amp; High gloss	-	1	Enquire
-	12023146421SC	Sill Scuff Plate, RH	12023146421SC Sill Scuff Plate, RH Blue & amp; High gloss	-	1	Enquire
-	703134	SCREW M6 x 16 - CSK HEAD TORQ TYPE DSS RECESS CHROME FREE	703134 SCREW M6 x 16 - CSK HEAD TORQ TYPE DSS RECESS CHROME FREE 3 per scuff plate	-	6	Enquire
-	12023146420BC	Sill Scuff Plate, LH	12023146420BC Sill Scuff Plate, LH Silver	-	1	Enquire
-	12023146420CC	Sill Scuff Plate, LH	12023146420CC Sill Scuff Plate, LH Black	-	1	Enquire
-	12023146420DC	Sill Scuff Plate, LH	12023146420DC Sill Scuff Plate, LH Blue	-	1	Enquire
-	12023146420EC	Sill Scuff Plate, LH	12023146420EC Sill Scuff Plate, LH Grey & Dark Ruthanium	-	1	Enquire
-	12023146420FC	Sill Scuff Plate, LH	12023146420FC Sill Scuff Plate, LH Silver & Dark Ruthanium	-	1	Enquire
-	12023146420GC	Sill Scuff Plate, LH	12023146420GC Sill Scuff Plate, LH Black & Dark Ruthanium	-	1	Enquire
-	12023146420HC	Sill Scuff Plate, LH	12023146420HC Sill Scuff Plate, LH Blue & Dark Ruthanium	-	1	Enquire
-	12023146420JC	Sill Scuff Plate, LH	12023146420JC Sill Scuff Plate, LH Grey & amp; Rose Gold	-	1	Enquire
-	12023146420KC	Sill Scuff Plate, LH	12023146420KC Sill Scuff Plate, LH Silver & amp; Rose Gold	-	1	Enquire
-	12023146420LC	Sill Scuff Plate, LH	12023146420LC Sill Scuff Plate, LH Black & amp; Rose Gold	-	1	Enquire
-	12023146420MC	Sill Scuff Plate, LH	12023146420MC Sill Scuff Plate, LH Blue & amp; Rose Gold	-	1	Enquire
-	12023146420NC	Sill Scuff Plate, LH	12023146420NC Sill Scuff Plate, LH Grey & amp; High gloss	-	1	Enquire
-	12023146420PC	Sill Scuff Plate, LH	12023146420PC Sill Scuff Plate, LH Silver & amp; High gloss	-	1	Enquire
-	12023146420RC	Sill Scuff Plate, LH	12023146420RC Sill Scuff Plate, LH Black & amp; High gloss	-	1	Enquire
-	12023146420SC	Sill Scuff Plate, LH	12023146420SC Sill Scuff Plate, LH Blue & amp; High gloss	-	1	Enquire
-	12023146542BA	Foot-rest mount, RHD	12023146542BA Foot-rest mount, RHD	-	1	Enquire
1	AY938310003	Floor Mat Assy, LHD	AY938310003 Floor Mat Assy, LHD -VIN and colour details required with order	-	1	Enquire
2	12023146474AC	Retention Assy, floor mat	12023146474AC Retention Assy, floor mat 2 per mat	-	4	Enquire
3	12023146476AC	Retention Hoop Assy, floor mat	12023146476AC Retention Hoop Assy, floor mat 2 per mat	-	4	Enquire
4	12023146235AE	Cowl Side Trim Assy, Passenger Side, LHD	12023146235AE Cowl Side Trim Assy, Passenger Side, LHD	-	1	Enquire
5	12023146234AG	Cowl Side Trim Assy, Drivers Side, LHD	12023146234AG Cowl Side Trim Assy, Drivers Side, LHD	-	1	Enquire
6	4G43STC3710AAPK	Fir Tree 8mm Fastener (Pack of 20)	4G43STC3710AAPK Fir Tree 8mm Fastener (Pack of 20)	-	4	Enquire
7	702520PK	Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	702520PK Clip 8.5 x16 x 1.7 Trim Push In Steel (Pack Of 20)	-	2	Enquire
8	12023146488AA	Fastener, Fir Tree	12023146488AA Fastener, Fir Tree	-	2	Enquire
9	12023146421AC	Sill Scuff Plate, RH	12023146421AC Sill Scuff Plate, RH Grey	-	1	Enquire
10	12023146420AC	Sill Scuff Plate, LH	12023146420AC Sill Scuff Plate, LH Grey	-	1	Enquire
11	12023146471AA	Scuff Plate, Inboard, RHS	12023146471AA Scuff Plate, Inboard, RHS	-	1	Enquire
12	12023146469AA	Scuff Plate, Inboard, LHS	12023146469AA Scuff Plate, Inboard, LHS	-	1	Enquire
13	12023146470AA	Scuff Plate, Outboard, RHS	12023146470AA Scuff Plate, Outboard, RHS	-	1	Enquire
14	12023146468AA	Scuff Plate, Outboard, LHS	12023146468AA Scuff Plate, Outboard, LHS	-	1	Enquire
15	12023146530TA	Foot-rest mount, LHD	12023146530TA Foot-rest mount, LHD	-	1	Enquire
16	4G439912553AA	BOLT M8 X 80 CAP SKT HD GD 10	4G439912553AA BOLT M8 X 80 CAP SKT HD GD 10	-	3	Enquire
17	12023146532AC	Rubber, Foot-rest	12023146532AC Rubber, Foot-rest	-	1	Enquire
18	12023146528TA	Plate, Foot-rest	12023146528TA Plate, Foot-rest	-	1	Enquire
19	704336	BOLT-M6x20 FC T1ADH8	704336 BOLT-M6x20 FC T1ADH8	-	2	Enquire
