Aston Martin GT VANQUISH (2025- - Electrical Wiring - Front

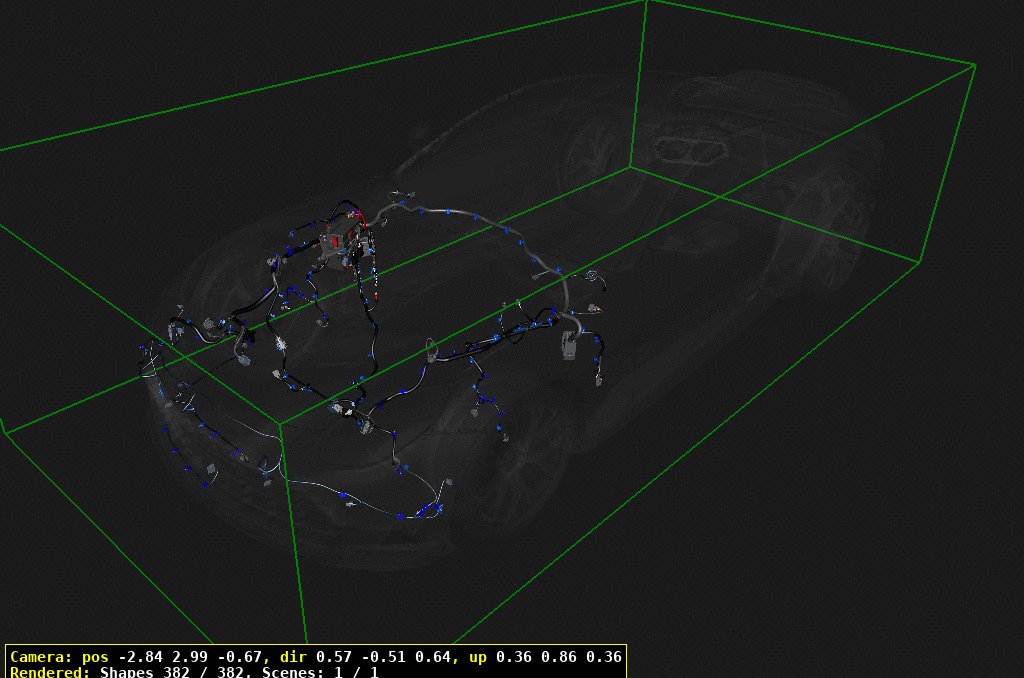

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	SY7Y15K877AA	FRONT BUMPER HARNESS	SY7Y15K877AA FRONT BUMPER HARNESS	-	1	Enquire
30	SY7Y14290AA	AM7 FORWARD V12 LHD	SY7Y14290AA AM7 FORWARD V12 LHD LHD	-	1	Enquire
31	SY7Y14290BA	AM7 FORWARD V12 RHD	SY7Y14290BA AM7 FORWARD V12 RHD RHD	-	1	Enquire
40	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head	-	7	Enquire
50	MY83N102449AA	M8X1.25X20 TORX PAN	MY83N102449AA M8X1.25X20 TORX PAN	-	1	Enquire
60	SY7Y12T659AA	EPAS EDS BRACKET	SY7Y12T659AA EPAS EDS BRACKET	-	1	Enquire
70	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
80	SY7Y14N094AA	FUSEBOX LINK-LEAD	SY7Y14N094AA FUSEBOX LINK-LEAD	-	1	Enquire
90	HY53331083AA	BLKING PLUG SIDE MKR	HY53331083AA BLKING PLUG SIDE MKR	-	2	Enquire
100	SY7Y10B389AA	V12 EPAS ASSY HARNES	SY7Y10B389AA V12 EPAS ASSY HARNES	-	1	Enquire
110	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head	-	1	Enquire
120	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	1	Enquire
130	SY7Y14K095AA	WATER PUMP LINK	SY7Y14K095AA WATER PUMP LINK	-	1	Enquire
140	SY7Y14A173AA	ENGINE FUSEBOX	SY7Y14A173AA ENGINE FUSEBOX	-	1	Enquire
150	SY7Y14A173DC	ENGINE BAY FBOX BRKT	SY7Y14A173DC ENGINE BAY FBOX BRKT	-	-	Enquire
160	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	3	Enquire
170	703264	SCREW-M6 x 14 HEX HD	703264 SCREW-M6 x 14 HEX HD	-	3	Enquire
180	SY7Y14A173BB	M PLUS FUSE BOX	SY7Y14A173BB M PLUS FUSE BOX	-	1	Enquire
190	SY7Y14A173CC	MIDI PLUS FBOX BRKT	SY7Y14A173CC MIDI PLUS FBOX BRKT	-	1	Enquire
200	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	7	Enquire
210	MY8314108AA	WIZZY NUT	MY8314108AA WIZZY NUT	-	1	Enquire
220	703198	Bolt, M6 x 40, Chrome Free	703198 Bolt, M6 x 40, Chrome Free	-	1	Enquire
230	KY63E830821AA	WHSR-25MM X 1.5MM	KY63E830821AA WHSR-25MM X 1.5MM	-	1	Enquire
300	4G433710578PK	MINI FUSE-5A PK 10	4G433710578PK MINI FUSE-5A PK 10 Pack of 10	-	A/R	Enquire
310	4G433710579PK	MINI FUSE-7.5A PK 10	4G433710579PK MINI FUSE-7.5A PK 10 Pack of 10	-	A/R	Enquire
320	4G433710580PK	MINI FUSE-10A PK 10	4G433710580PK MINI FUSE-10A PK 10 Pack of 10	-	A/R	Enquire
330	4G433710581PK	MINI FUSE-15A PK 10	4G433710581PK MINI FUSE-15A PK 10 Pack of 10	-	A/R	Enquire
340	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A	-	A/R	Enquire
350	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A	-	A/R	Enquire
360	MY833710027	FUSE-40 amp MAXI	MY833710027 FUSE-40 amp MAXI	-	A/R	Enquire
460	6G3314D344AA	MIDI FUSE 40A	6G3314D344AA MIDI FUSE 40A	-	A/R	Enquire
470	MY833710029	FUSE-60 amp MIDI	MY833710029 FUSE-60 amp MIDI	-	A/R	Enquire
480	HY533710095	FUSE-100A-BK-IDI	HY533710095 FUSE-100A-BK-IDI	-	A/R	Enquire
490	MY833710037	FUSE-200 amp MIDI	MY833710037 FUSE-200 amp MIDI	-	A/R	Enquire
500	RY53SE15692BA	POWER RELAY	RY53SE15692BA POWER RELAY	-	2	Enquire
510	RY53SE15692BA	POWER RELAY	RY53SE15692BA POWER RELAY	-	3	Enquire
520	SY7YSE15692AA	MICRO-RELAY 12V	SY7YSE15692AA MICRO-RELAY 12V	-	3	Enquire
530	SY7YSE15692BA	MINI-RELAY 12V	SY7YSE15692BA MINI-RELAY 12V	-	3	Enquire
540	SY7YSE15692CA	MINI-ISO SSR RELAY	SY7YSE15692CA MINI-ISO SSR RELAY	-	1	Enquire
