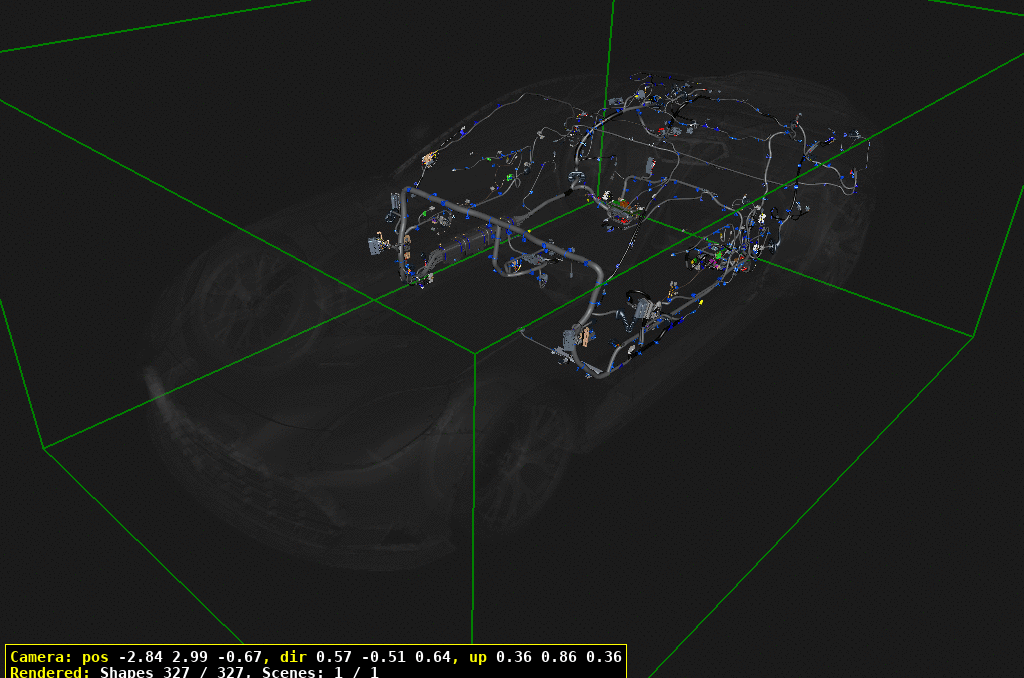

Electrical Wiring - Cabin - Coupe of Aston Martin Aston Martin GT VANQUISH (2025-

View All

Aston Martin GT VANQUISH (2025- - Electrical Wiring - Cabin - Coupe

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	SY7Y14A005AA	LHD CABIN HARNESS	SY7Y14A005AA LHD CABIN HARNESS LHD	-	1	Enquire
21	SY7Y14K103AA	RHD CABIN HARNESS	SY7Y14K103AA RHD CABIN HARNESS RHD	-	1	Enquire
30	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	6	Enquire
40	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head	-	9	Enquire
50	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	1	Enquire
60	ED230173008AA	M6 NUT COVER	ED230173008AA M6 NUT COVER	-	1	Enquire
70	RY53519E04AB	FRONT HEADER POD	RY53519E04AB FRONT HEADER POD	-	1	Enquire
80	RY53023B12AB	AM5 TPMS EDS BRACKET	RY53023B12AB AM5 TPMS EDS BRACKET	-	1	Enquire
90	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
100	RY53244A26AB	A PILLAR EDS BRACKET	RY53244A26AB A PILLAR EDS BRACKET	-	1	Enquire
110	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	1	Enquire
120	HY5314N003AA	CABIN INLINE BRKT	HY5314N003AA CABIN INLINE BRKT	-	1	Enquire
130	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	2	Enquire
140	RY5314A073AC	CABIN FUSEBOX	RY5314A073AC CABIN FUSEBOX Includes Fuses & Relays	-	1	Enquire
150	RY5314A073BA	CABIN FB BRKT	RY5314A073BA CABIN FB BRKT	-	1	Enquire
160	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	4	Enquire
170	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
180	RY5314630AB	DR HRNS LHS COUPE	RY5314630AB DR HRNS LHS COUPE	-	1	Enquire
190	RY5314631AB	DR HRNS RHS COUPE	RY5314631AB DR HRNS RHS COUPE	-	1	Enquire
200	RY5314024AB	DR TRM LNK DRV	RY5314024AB DR TRM LNK DRV LHD	-	1	Enquire
201	RY5314025BB	DR TRM LNK PASS	RY5314025BB DR TRM LNK PASS RHD	-	1	Enquire
210	RY5314025AB	FRONT DOOR TRIM	RY5314025AB FRONT DOOR TRIM LHD	-	1	Enquire
211	RY5314024BB	DR TRM LNK DRV	RY5314024BB DR TRM LNK DRV RHD	-	1	Enquire
220	7G4314A666AA	BLANKING PLUG DMTL	7G4314A666AA BLANKING PLUG DMTL	-	1	Enquire
300	HY533710100	FUSE-5A-E-MINI	HY533710100 FUSE-5A-E-MINI	-	A/R	Enquire
310	HY533710098	FUSE-7.5A-N-MINI	HY533710098 FUSE-7.5A-N-MINI	-	A/R	Enquire
320	HY533710099	FUSE-10A-R-MINI	HY533710099 FUSE-10A-R-MINI	-	A/R	Enquire
330	HY533710096	FUSE-15A-U-MINI	HY533710096 FUSE-15A-U-MINI	-	A/R	Enquire
340	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A	-	A/R	Enquire
350	3723423	Fuse Midi 7.5A	3723423 Fuse Midi 7.5A	-	A/R	Enquire
360	3723424	Fuse, Midi 10A	3723424 Fuse, Midi 10A	-	A/R	Enquire
370	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A	-	A/R	Enquire
380	3723427	Fuse, Midi 25A	3723427 Fuse, Midi 25A	-	A/R	Enquire
390	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A	-	A/R	Enquire
400	MY833710027	FUSE-40 amp MAXI	MY833710027 FUSE-40 amp MAXI	-	A/R	Enquire
500	RY53SE15692AA	RELAY	RY53SE15692AA RELAY	-	1	Enquire
510	RY53SE15692BA	POWER RELAY	RY53SE15692BA POWER RELAY	-	1	Enquire
