Aston Martin GT VANQUISH (2013-2018) - PAS Hoses, RHD 15MY on

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

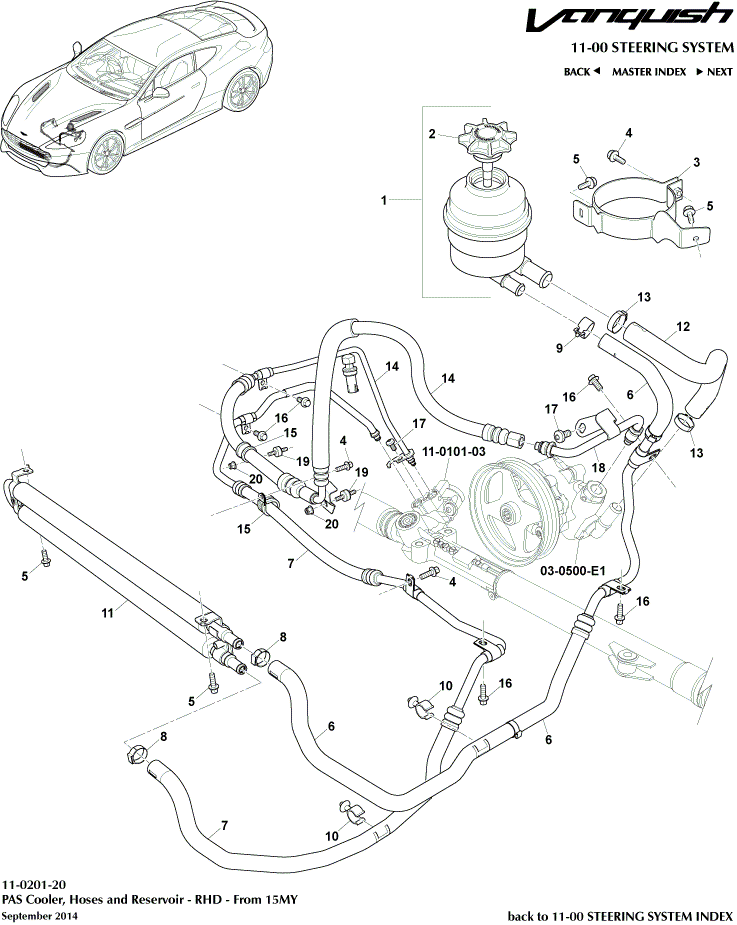

PAS Hoses, RHD 15MY on of Aston Martin Aston Martin GT VANQUISH (2013-2018) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G433R700AB
Reservoir and Cap Assembly
- 		- 1 Enquire
2 00RG035
REEVITE - 15.9x3.2x8x82x5.4
- 		- 1 Enquire
3 4G433489AD
Bracket Assy, PAS Reservoir
- 		- 1 Enquire
4 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
- 		- 3 Enquire
5 703265
Screw, M6 x 16, Hex Flange Head
- 		- 4 Enquire
6 CD333A713AB
Hose, Return, Cooler to Reservoir
- 		- 1 Enquire
7 CD333F558BA
Hose, Return, Gear to Cooler, RHD
- 		- 1 Enquire
9 701349
Clamp, Hose 20 Dia
- 		- 1 Enquire
10 4G436C727AA
HOSE CLIP (RAYMOND 81442)
- 		- 2 Enquire
11 CD333D746AA
Cooler Assy, Power Steering
- 		- 1 Enquire
12 FD333E525AA
RESRV TO PMP SUCTION
- 		- 1 Enquire
13 699545
HOSE CLAMP OETIKER REF: 025.6 - 706R
- 		- 2 Enquire
14 FD333A719BA
HOSE ASY PAS PMP RHD
- 		- 1 Enquire
15 699711
‘P Clip, 23 x 15 x M6
- 		- 2 Enquire
16 703121
Screw, M8 x 25, Hex Flange Head
- 		- 5 Enquire
17 703141
SCREW M8 x 16 CHROME FREE
- 		- 2 Enquire
18 FD333494AA
PUMP OUTLET TUBE HP
- 		- 1 Enquire
19 6G336C778AA
ISOLATOR - OIL COOLER MOUTING
- 		- 2 Enquire
20 703163
Nut, M6, Hex Flange Head, Locking
- 		- 2 Enquire
