Aston Martin GT VANQUISH (2013-2018) - PAS Hoses, LHD to 15MY

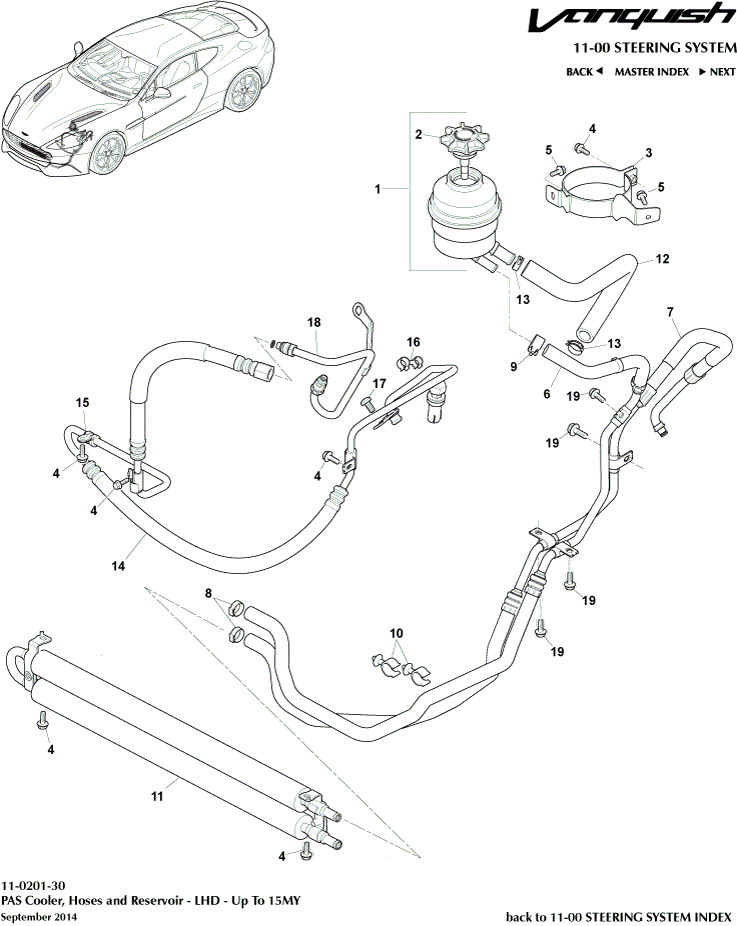

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G433R700AB	Reservoir and Cap Assembly	4G433R700AB Reservoir and Cap Assembly -	-	1	Enquire
2	00RG035	REEVITE - 15.9x3.2x8x82x5.4	00RG035 REEVITE - 15.9x3.2x8x82x5.4 -	-	1	Enquire
3	4G433489AD	Bracket Assy, PAS Reservoir	4G433489AD Bracket Assy, PAS Reservoir -	-	1	Enquire
4	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	5	Enquire
5	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head -	-	2	Enquire
6	CD333A713AB	Hose, Return, Cooler to Reservoir	CD333A713AB Hose, Return, Cooler to Reservoir -	-	1	Enquire
7	8D333F558AC	Hose Return Gear to Cooler LHD	8D333F558AC Hose Return Gear to Cooler LHD -	-	1	Enquire
9	701349	Clamp, Hose 20 Dia	701349 Clamp, Hose 20 Dia -	-	1	Enquire
10	4G436C727AA	HOSE CLIP (RAYMOND 81442)	4G436C727AA HOSE CLIP (RAYMOND 81442) -	-	2	Enquire
11	CD333D746AA	Cooler Assy, Power Steering	CD333D746AA Cooler Assy, Power Steering -	-	1	Enquire
12	DG433E525AA	Hose, Reservoir to Pump, Suction	DG433E525AA Hose, Reservoir to Pump, Suction -	-	1	Enquire
13	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	699545 HOSE CLAMP OETIKER REF: 025.6 - 706R -	-	2	Enquire
14	CD333A719AA	HOSE PWR STNG PRESS	CD333A719AA HOSE PWR STNG PRESS -	-	1	Enquire
16	4G43105050AA	CLIP - DOUBLE REYMOND REF 80476	4G43105050AA CLIP - DOUBLE REYMOND REF 80476 -	-	1	Enquire
17	703141	SCREW M8 x 16 CHROME FREE	703141 SCREW M8 x 16 CHROME FREE -	-	1	Enquire
19	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head -	-	4	Enquire
