Battery Cables

Aston Martin GT RAPIDE (2010-2019)

Find Your Part

Aston Martin GT RAPIDE (2010-2019) - Battery Cables

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

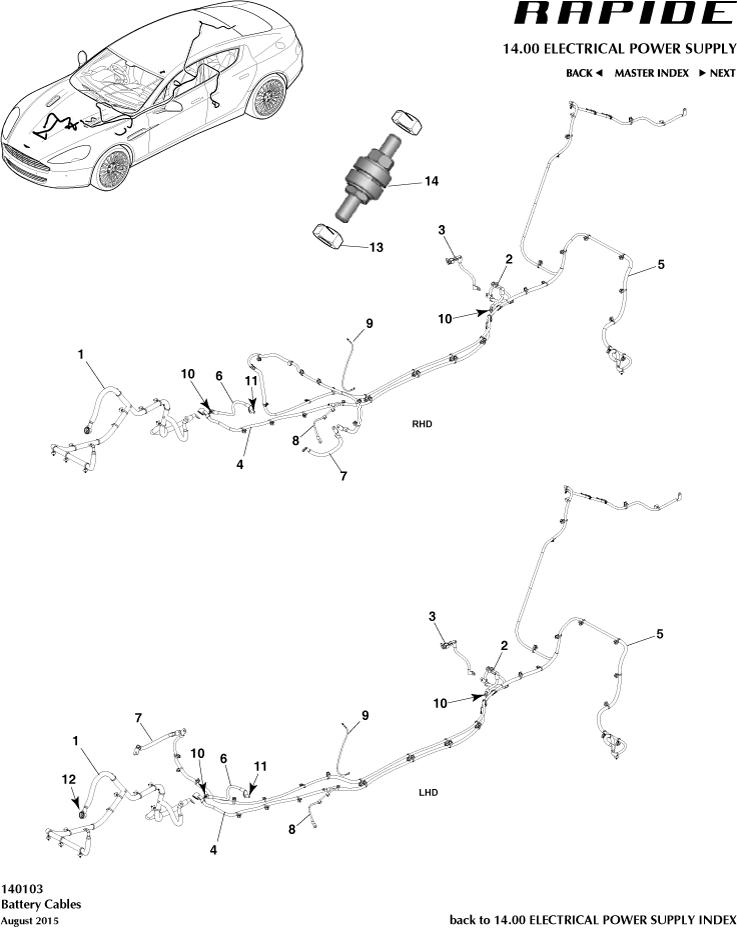

Battery Cables of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- DG4310C310AB
Harness Assy, Transfer Stud to Starter/Alternator/Jump point
From 13MY 		- 1 Enquire
- DD4314300AA
BATTERY POS TO BDS
From VIN F03742 		- 1 Enquire
- GD4314B278MA
BATT CABLE CLN FB RH
From 16MY, RHD 		- 1 Enquire
- AD4314B278LA
LHD CLEAN FEED BATTERY CABLE ALUMINIUM
Up To 16MY, LHD 		- 1 Enquire
- GD4314B278LA
BATT CABLE CLN FB LH
From 16MY, LHD 		- 1 Enquire
- 4G43E820201AA
M8 HALF NUT HEX BRASS
- 		- 2 Enquire
1 AD4310C310AA
CABLE ASSY DIRTY FEED BULKHEAD STUD TO ALT
Up To 13MY 		- 1 Enquire
2 AD4314301AC
BATTERY TO GROUND
- 		- 1 Enquire
3 DD4314300AA
BATTERY POS TO BDS
Up to VIN F03741 		- 1 Enquire
4 AD4314305BA
BDS TO BH STUD DIRTY FEED CABLE ALUMINIUM
- 		- 1 Enquire
5 AD4314B278MA
RHD CLEAN FEED BATTERY CABLE ALUMINIUM
Up To 16MY, RHD 		- 1 Enquire
7 4G4314B278DD
Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box
- 		- 1 Enquire
9 AD4313N850AA
VH400 FDPM EARTH LINK 1
- 		- 1 Enquire
10 703169
NUT - M6 HEX FLANGE CHROME FREE
- 		- 1 Enquire
11 703200
SCREW M10x25 HEX FLG CHROME FREE
- 		- 1 Enquire
12 703739
Nut, M8, Hex Flange Head
LHD 		- 1 Enquire
13 9G43E820201AA
NUT HEX SPCL BRASS M8 BINX
- 		- 2 Enquire
14 9G4310A752AA
TERMINAL POST ASSY
- 		- 2 Enquire
