Aston Martin GT RAPIDE (2010-2019) - Battery

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

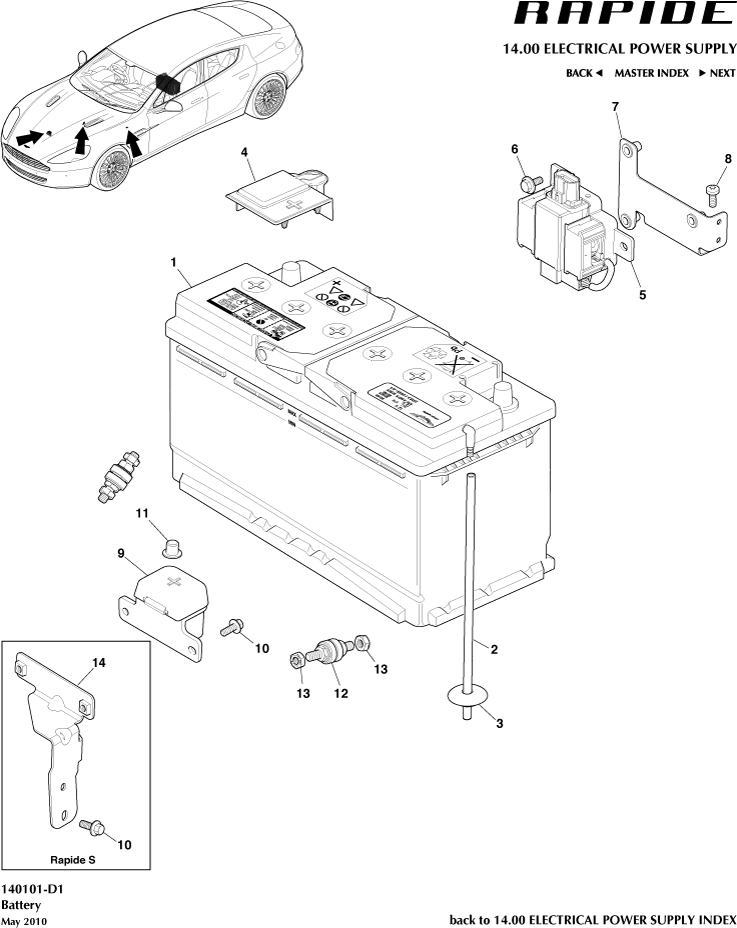

Battery of Aston Martin Aston Martin GT RAPIDE (2010-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 64115B6B8E6
Control unit air conditioning sys.
Rapide S. Refer to Bulletin I_PSB_2024-506 for details 		- 1 Enquire
- DD43372635AA
BATT VENT TUBE 570mm
Rapide S. Refer to Bulletin I_PSB_2024-506 for details 		- 1 Enquire
- DD4314227AA
BATT TERM COVER
From VIN F03742 		- 1 Enquire
- AD43370397BD
BDS BRKT
From 15MY 		- 1 Enquire
1 AD4310655AA
BATTERY 88 AH
- 		- 1 Enquire
2 1R12372635AA
Tube, Battery Vent, 240mm
- 		- 1 Enquire
3 3781850
Grommet, battery vent tube
- 		- 1 Enquire
4 AD4314227AB
BATTERY TERMINAL COV
Up to VIN F03741 		- 1 Enquire
5 7G43370397AC
Batt Disconnect Switch
- 		- 1 Enquire
6 703151
Screw M6x16 Washer Hex HD Chrome Free
- 		- 3 Enquire
7 AD43370397BB
BDS BRKT
Up To 15MY 		- 1 Enquire
9 6G3314B600BF
Jumpstart Terminal Assy
- 		- 1 Enquire
10 703265
Screw, M6 x 16, Hex Flange Head
Qty 4 Rapide S 		- 2 Enquire
11 4G43N800631AA
Rubber Plug, 11mm, Black Thermoplastic
- 		- 1 Enquire
13 9G43E820201AA
NUT HEX SPCL BRASS M8 BINX
- 		- 4 Enquire
14 DD4314B600CA
J START BRKT
Rapide S 		- 1 Enquire
