Air Con Lines, R134a, RHD of Aston Martin Aston Martin GT RAPIDE (2010-2019)

View All

Aston Martin GT RAPIDE (2010-2019) - Air Con Lines, R134a, RHD

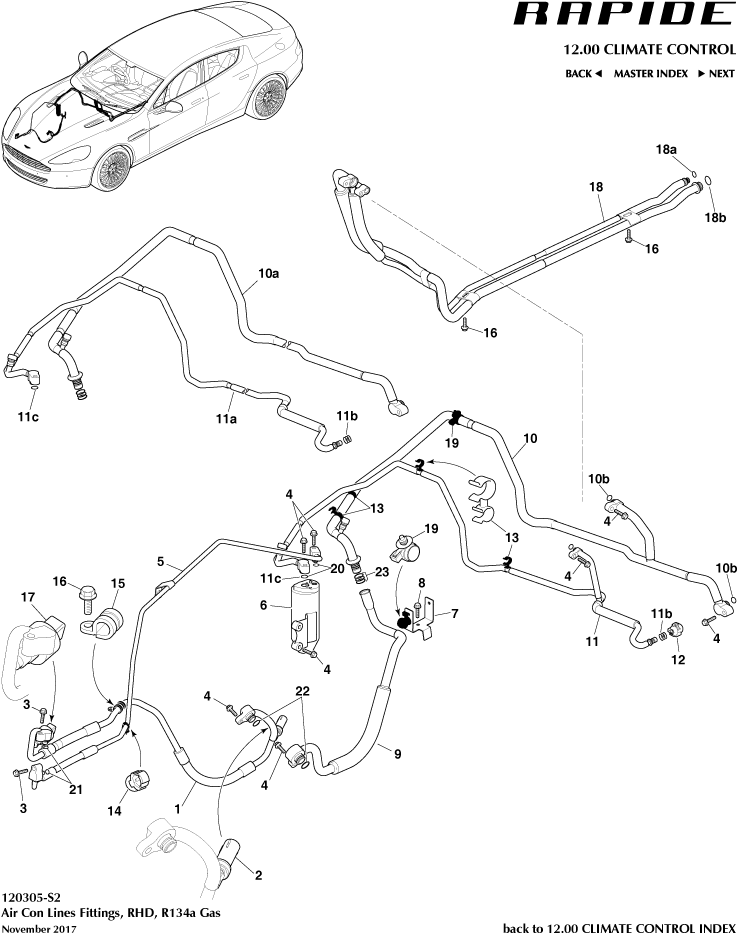

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CD3319972AC	Tube Assy, A/C Compressor to Condenser	CD3319972AC Tube Assy, A/C Compressor to Condenser From 13MY To 17MY	-	1	Enquire
-	HD3319972AA	TUBE ASSY A/C COMPR	HD3319972AA TUBE ASSY A/C COMPR From 17MY, With R134 Gas	-	1	Enquire
-	CD3319D719AC	Tube Assy, Condenser to Receiver Drier	CD3319D719AC Tube Assy, Condenser to Receiver Drier From 13MY To 17MY	-	1	Enquire
-	HD3319D719AA	TUBE ASSY AC DEHY IN	HD3319D719AA TUBE ASSY AC DEHY IN From 17MY, With R134 Gas	-	1	Enquire
-	CD3319A705AA	Tube Assy, A/C Evaporator Outlet lower	CD3319A705AA Tube Assy, A/C Evaporator Outlet lower From 13MY To 17MY	-	1	Enquire
-	HD3319A705AA	TUB ASY A/C EVP OLET	HD3319A705AA TUB ASY A/C EVP OLET From 17MY, With R134 Gas	-	1	Enquire
-	HD4319A705EA	TB ASY EVAP OTLT RHD	HD4319A705EA TB ASY EVAP OTLT RHD From 17MY, With Rear A/C, With R134 Gas	-	1	Enquire
-	HD4319835CA	TUBE ASY AIRCON	HD4319835CA TUBE ASY AIRCON From 17MY, With Rear A/C, With R134 Gas	-	1	Enquire
-	HD4319A705DA	TB ASY A/C EVP OUT/I	HD4319A705DA TB ASY A/C EVP OUT/I From 17MY, With Rear A/C, With R134 Gas	-	1	Enquire
1	AD4319972AA	COMPRESSOR TO CONDENSOR	AD4319972AA COMPRESSOR TO CONDENSOR Up To 13MY	-	1	Enquire
2	6F9319D594AA	SW ASY-A/C PRES CTOF	6F9319D594AA SW ASY-A/C PRES CTOF -	-	1	Enquire
3	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE -	-	2	Enquire
4	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free -	-	7	Enquire
5	AD4319D719AA	TUBE ASSY - COND TO R/DRIER	AD4319D719AA TUBE ASSY - COND TO R/DRIER Up To 13MY	-	1	Enquire
6	4G4319E891AC	RECEIVER DRIER ASSY	4G4319E891AC RECEIVER DRIER ASSY -	-	1	Enquire
8	703151	Screw M6x16 Washer Hex HD Chrome Free	703151 Screw M6x16 Washer Hex HD Chrome Free -	-	1	Enquire
9	AD4319A705AA	SUCTION LINE-ENGINE BAY TO COMPRESSOR	AD4319A705AA SUCTION LINE-ENGINE BAY TO COMPRESSOR Up to 13MY	-	1	Enquire
10	AD4319A705EA	TUB ASY EVAP OUTLET RHD	AD4319A705EA TUB ASY EVAP OUTLET RHD Up To 17MY	-	1	Enquire
10a	HD4319B881BA	TUBE ASSY A/C DEHY	HD4319B881BA TUBE ASSY A/C DEHY From 17MY, Less Rear A/C, With R134 Gas	-	1	Enquire
10b	HD2332117AA	EPDM O-RING	HD2332117AA EPDM O-RING From 17MY	-	2	Enquire
11	AD4319835CB	TUBE AIRCON DEHYDRATOR	AD4319835CB TUBE AIRCON DEHYDRATOR Up To 17MY	-	1	Enquire
11a	HD4319919BA	TUBE ASSY A/C EVAP O	HD4319919BA TUBE ASSY A/C EVAP O From 17MY, Less Rear A/C, With R134 Gas	-	1	Enquire
11b	HD2387024AA	EPDM O-RING	HD2387024AA EPDM O-RING From 17MY	-	3	Enquire
11c	HD2387071AA	EPDM - O-RING	HD2387071AA EPDM - O-RING From 17MY	-	1	Enquire
12	4G434073AAA	CLAMP - LIQ	4G434073AAA CLAMP - LIQ -	-	1	Enquire
13	701182	Clip, Pipe Swivel	701182 Clip, Pipe Swivel -	-	4	Enquire
14	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In -	-	1	Enquire
15	699634	P-Clip,13 x 15 x M6	699634 P-Clip,13 x 15 x M6 -	-	1	Enquire
16	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free -	-	3	Enquire
17	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure -	-	1	Enquire
18	18309488529	RP petrol particulate filter w/ fr. pipe	18309488529 RP petrol particulate filter w/ fr. pipe Up To 17MY	-	1	Enquire
18a	HD23100603AA	EPDM O-RING	HD23100603AA EPDM O-RING From 17MY	-	1	Enquire
18b	HD23101001AA	EPDM O-RING	HD23101001AA EPDM O-RING From 17MY	-	1	Enquire
19	4G436510059	CLIP-FIRTREE 5x6.5x2	4G436510059 CLIP-FIRTREE 5x6.5x2 -	-	2	Enquire
23	4G438910911PK	O RINGS-DB9 EVAPORATOR-PACK OF 3	4G438910911PK O RINGS-DB9 EVAPORATOR-PACK OF 3 From 17MY	-	3	Enquire
